Set Up and Maintenance
9836 3521 01 119

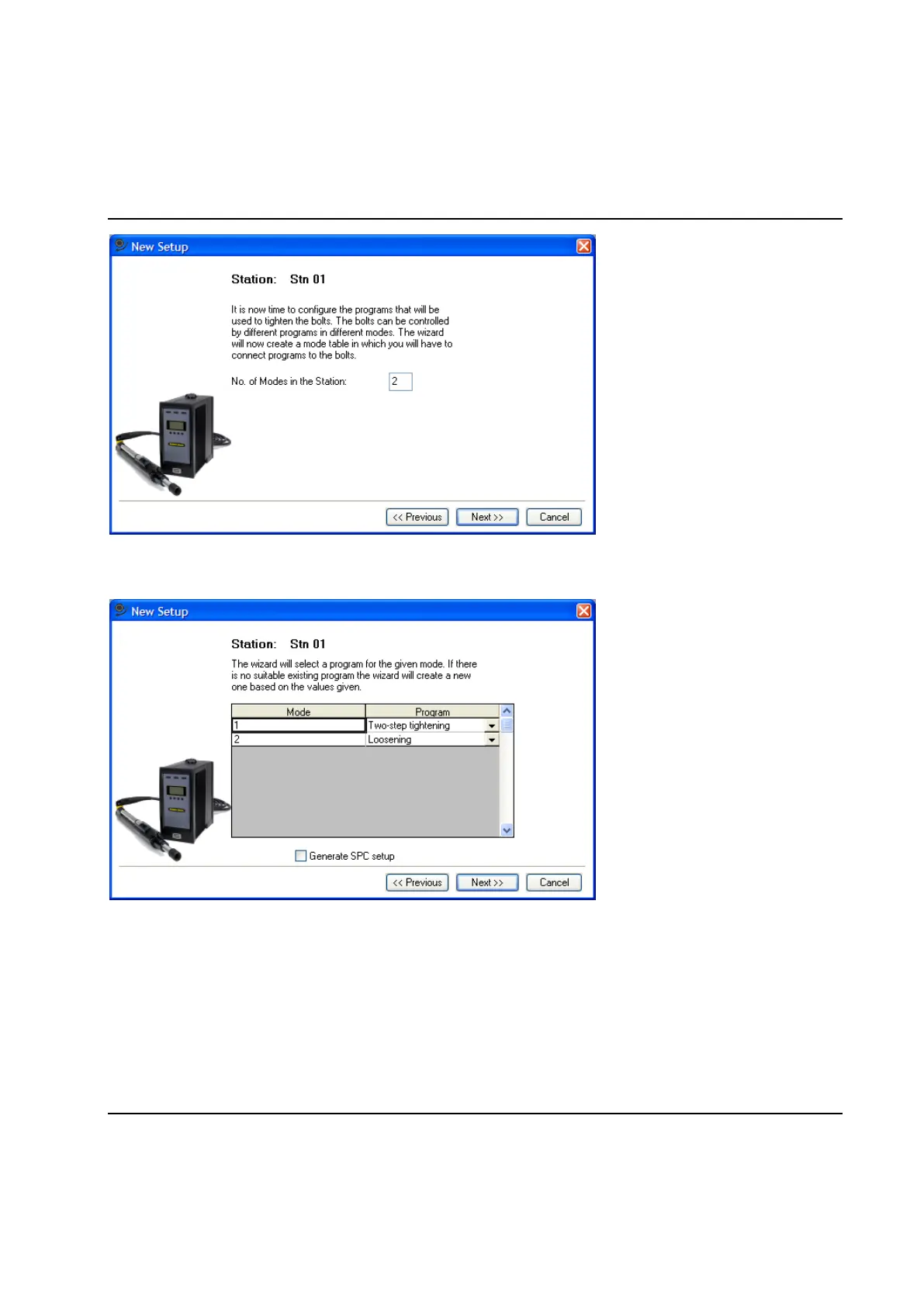

Enter the number of modes you want to have in the Mode table for the station (max is 50) and press
Next >>. This will present the following dialog:
Specify programs for the number of modes selected. You can select predefined programs located in the
installation directory for ToolsTalk PowerMACS under the subdirectory Programs.
Checking the Generate SPC Setup check box will configure the SPC function to calculate SPC data for
the variables Bolt T and Bolt A.
When done press Next >>. This will cause this dialog to be repeated once for each mode you specified in
the previous wizard dialog.
