System Architecture
9836 3521 01 35
TC node. The selected default menu is remembered between TC restarts.

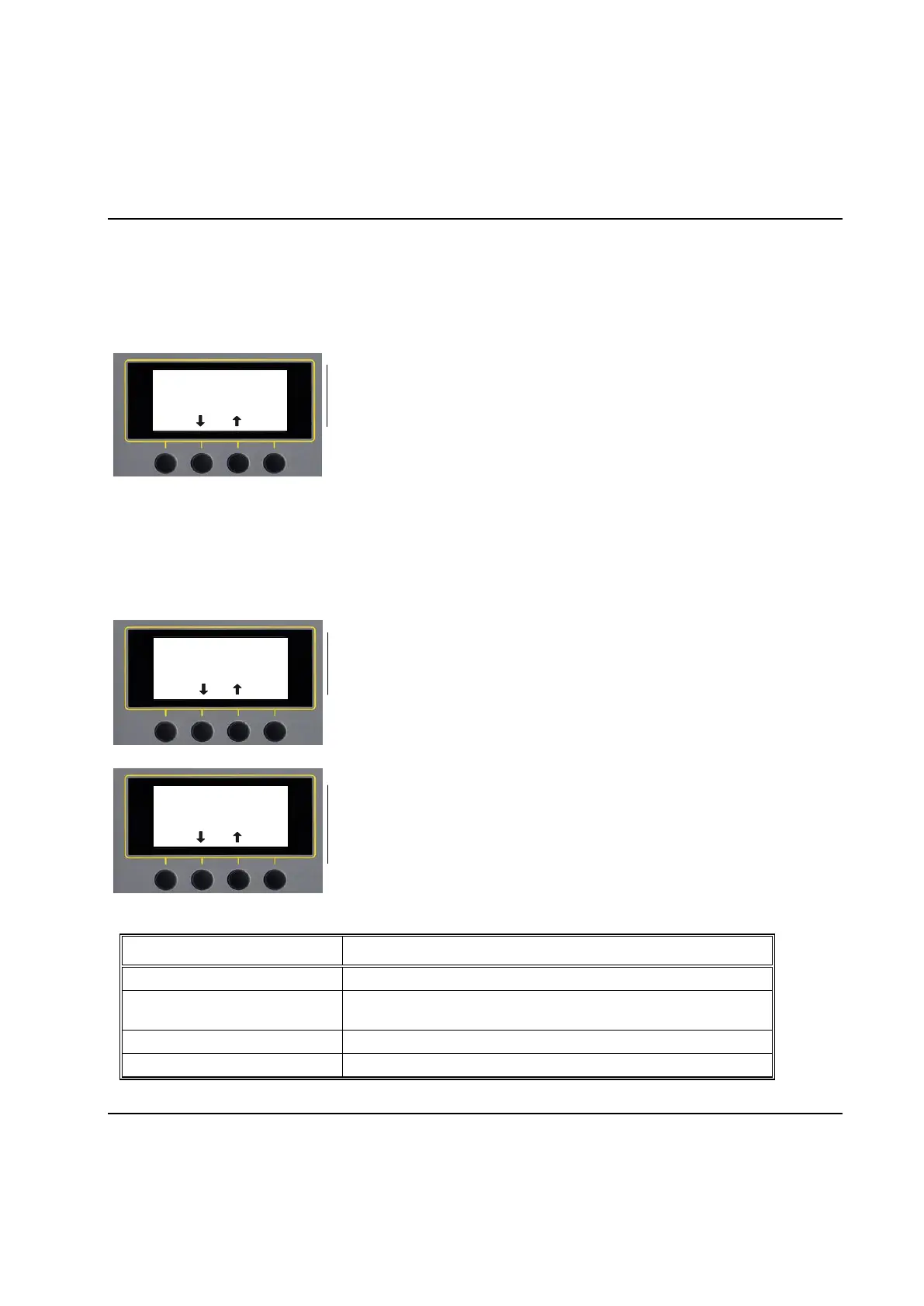

Setup Menu
The setup menu is divided into two group Basic Setup and IP Setup. Press the Select button to enter a
settings group or press the Back button to return to the Default menu.
Basic Setup
Select Back
Select Back
Basic Setup
Basic settings for a TC
IP Setup
IP Address settings for TC
IP Setup
Setup Menu – Basic Setup
The Basic Setup menu contains a number of settings. To browse between the settings press the
Up/Down buttons. To edit a setting press the Change button, when editing it is possible to Store the new
value or Cancel the editing. The picture below shows an example editing the TC Number property on a
TC.
TC Number
Change Back
Store Cancel
Edit Settings Example
Select Change to edit
Edit Settings Example
Press Up/Down to Modify
Store or Cancel when done.
31
TC Number
32
The following options can be set in Basic Setup.
If a PTC is the System TC (option only available on PTC)
The TCs number (equivalent to the TCs last digit in the internal
IP-address).
Clear the setup stored in the TC
