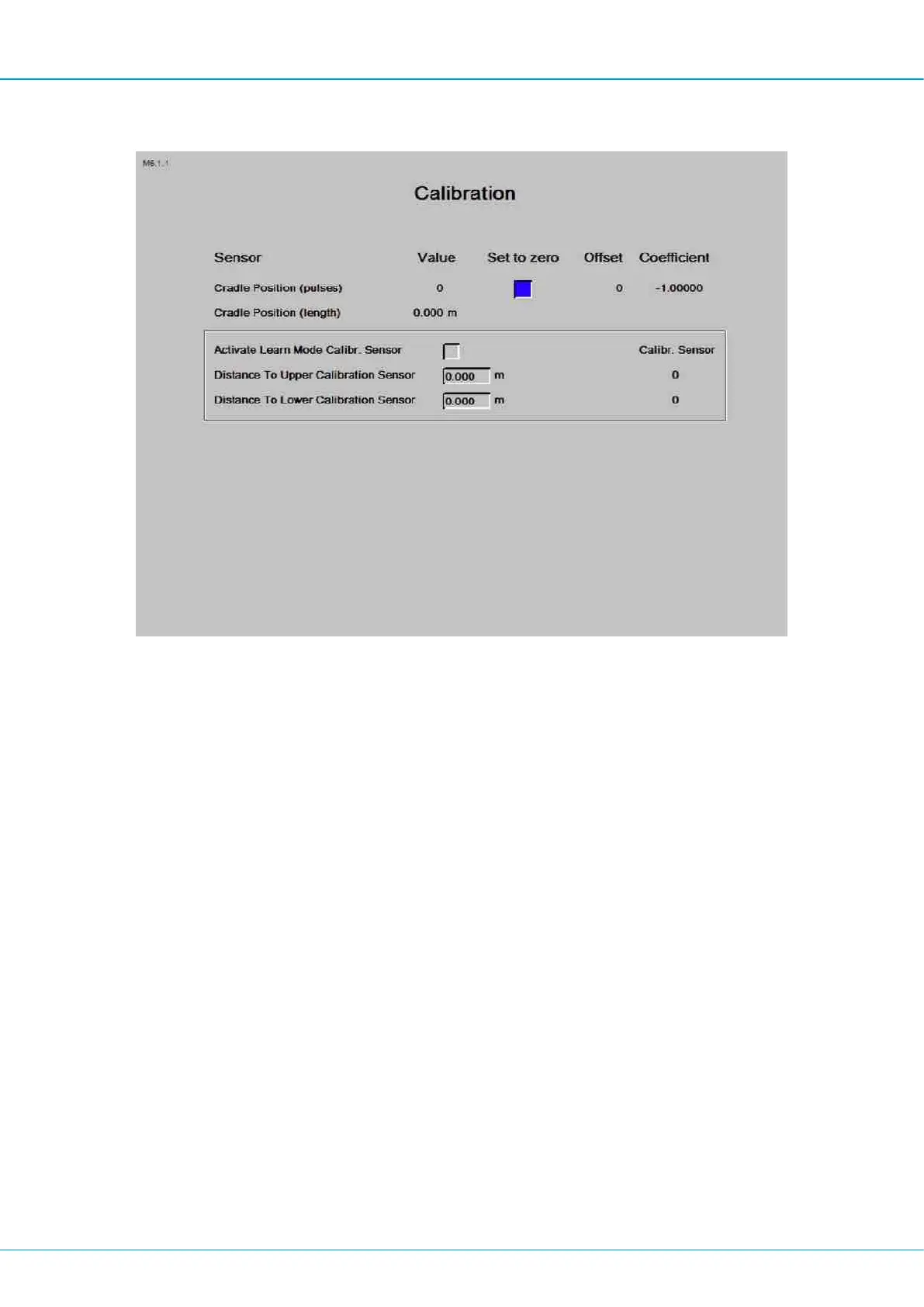

RHS - Sensor - Calibration
Calibration
n Sensors
l Cradle position (pulses)
l Cradle position (length)
n Value
n Set to zero
n Offset
n Coefficient
n Activate learn mode calibr. sensor
n Distance to upper calibration sensor
n Distance to lower calibration sensor
n Operate the cradle to mechanical stop.
n Set to zero by checking the boxes Set to zero and Activate learn mode calibr.
sensor.
n Slowly operate the cradle down until it has passed the lower calibration sensor.
n The distance will automatically appear in boxes.
n Exit with ESC.
