13.4 Configuring Static IP Routes
The Static Route table lets you configure up to 30 static IP routing rules. Using static routes
lets you communicate with LAN networks that are not located behind the Default Gateway
specified for the IP network interface, configured in the Interface table, from which the
packets are sent. Before sending an IP packet, the device searches the Static Route table
for an entry that matches the requested destination host/network. If an entry is found, the
device sends the packet to the gateway that is configured for the static route. If no explicit
entry is found, the packet is sent to the Default Gateway configured for the IP network
interface.
You can view the status of the configured static routes in the IP Routing Status table. This
page can be accessed by clicking the Static Route Status Table button, located at the
bottom of the Static Route table page, or it can be accessed from the Navigation tree under
the Status & Diagnostics tab (see ''Viewing Static Routes Status'' on page 748).
The following procedure describes how to configure static routes through the Web
interface. You can also configure it through ini file (StaticRouteTable).
 To configure a static IP route:
1. Open the Static Route table (Configuration tab > VoIP menu > Network > Static
Route Table).
2. Click Add; the following dialog box appears:

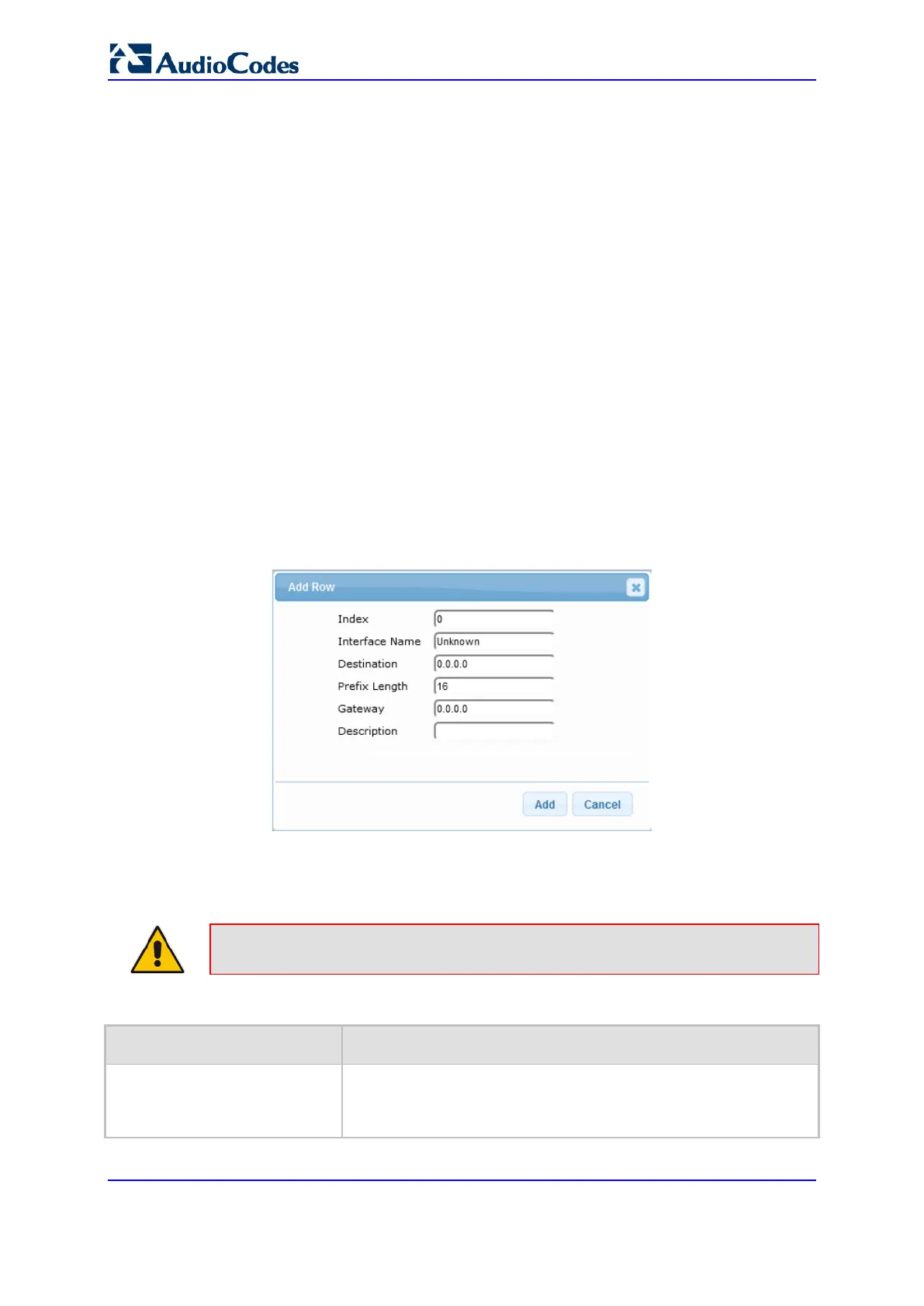

Figure 13-2: Static Route Table - Add Row Dialog Box
3. Configure a static route according to the parameters described in the table below.
4. Click Add, and then reset the device with a burn-to-flash for your settings to take
effect.
Note: You can delete only static routing rules that are inactive.
Table 13-10: Static Route Table Parameter Descriptions
Parameter Description
Index
[StaticRouteTable_Index]
Defines an index number for the new table row.
The valid value is 0 to 29.
Note: Each row must be configured with a unique index.
