Version 7.0 745 Mediant 3000
User's Manual 51. VoIP Status
51 VoIP Status
This section describes how to view VoIP status and statistics.
51.1 Viewing Trunks & Channels Status
The Trunks & Channels Status page displays the status of the device's trunks and
corresponding channels. It also enables you to view trunk configuration and channel
information.
 To view the status of the device's trunks and channels:

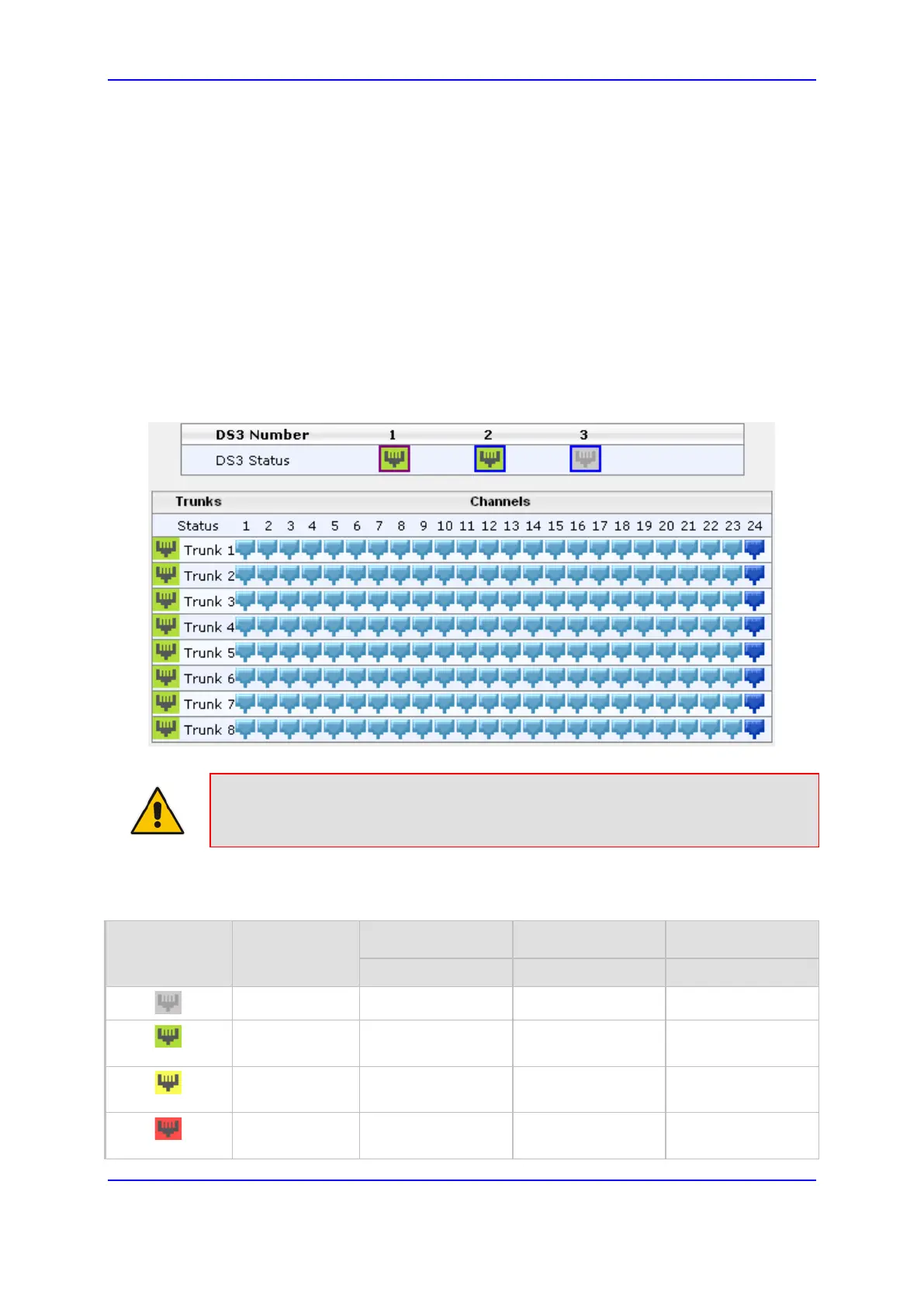

1. Open the Trunks & Channels Status page (Status & Diagnostics tab > VoIP Status
menu > Trunks & Channels Status). The page displays the first eight trunks and their
channels:
Note: The number of displayed trunks and channels and the type of interface (i.e.,
DS3 or SDH/SONET) depends on configuration. SONET/SDH interface is applicable
only when using the TP-6310 blade.
The status of the trunks is depicted by color-coded icons, as described in the table below:
Table 51-1: Description of Color-Coded Icons for Trunk Status
Icon
Color
Trunk SDH DS3
Label
Description Description
Gray
Disabled
Disabled Disabled
Green
Active - OK
No Alarms
(Working)
No Alarms
Yellow
RAI Alarm
No Alarms
(Protection)
RAI Alarm
Red
LOS / LOF Alarm
LOS/LOF/MS-
AIS/MS-RDI Alarm
LOS/LOF/AIS Alarm
