To achieve HA, the software resides on redundant components and performs the
following:
• Monitors system components to detect any hardware failures
• Handles switchover procedures to overcome possible failures
For more details on the HA system, see ''HA Overview'' on page 655.
1.1.1 Functional Block Diagrams
The functional block diagrams of the Mediant 3000 with the TP-6310 blade and with the
TP-8410 blade are shown in the figures below, respectively:

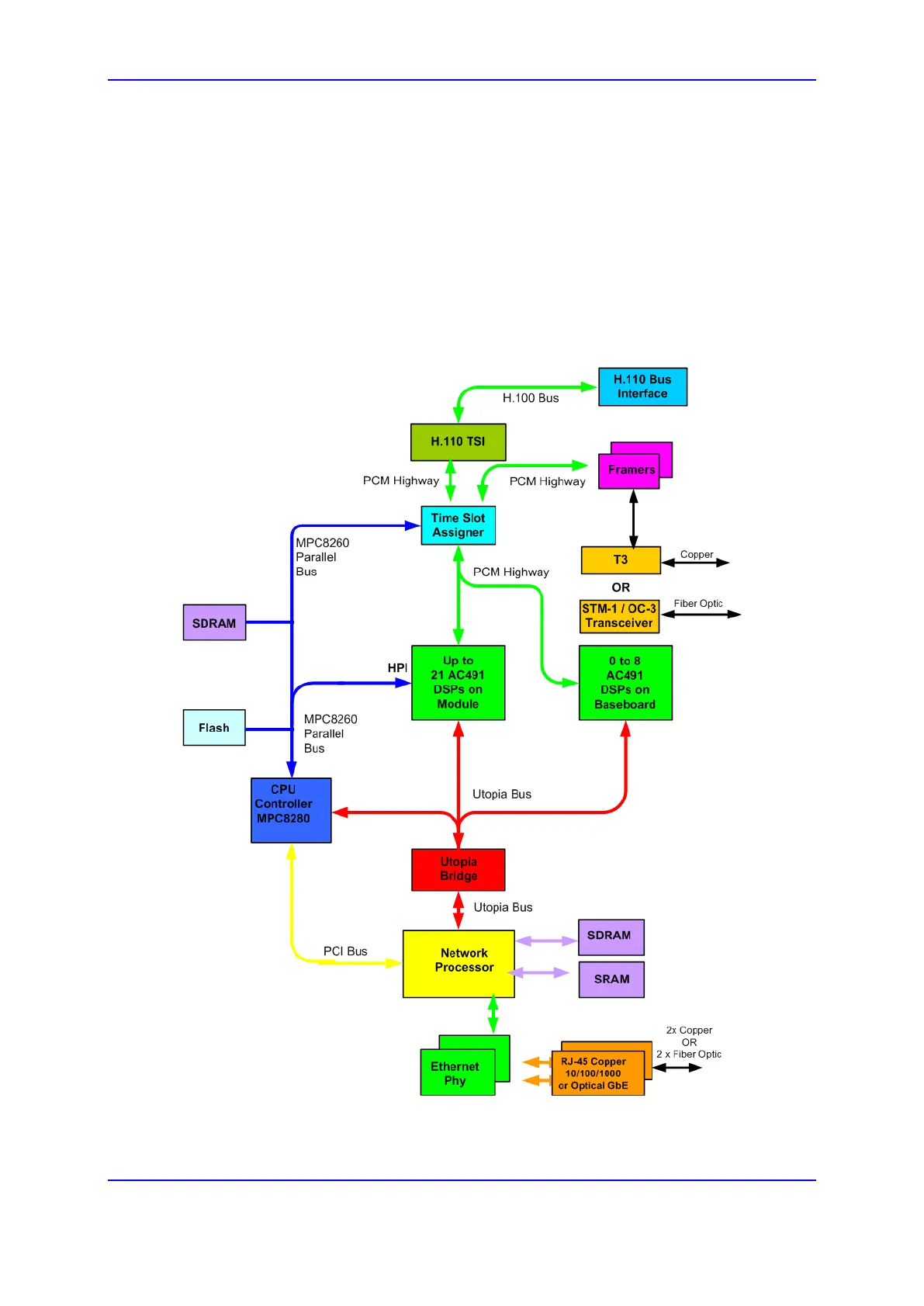

Figure 1-2: Mediant 3000/TP-6310 Functional Block Diagram
