Mediant 3000

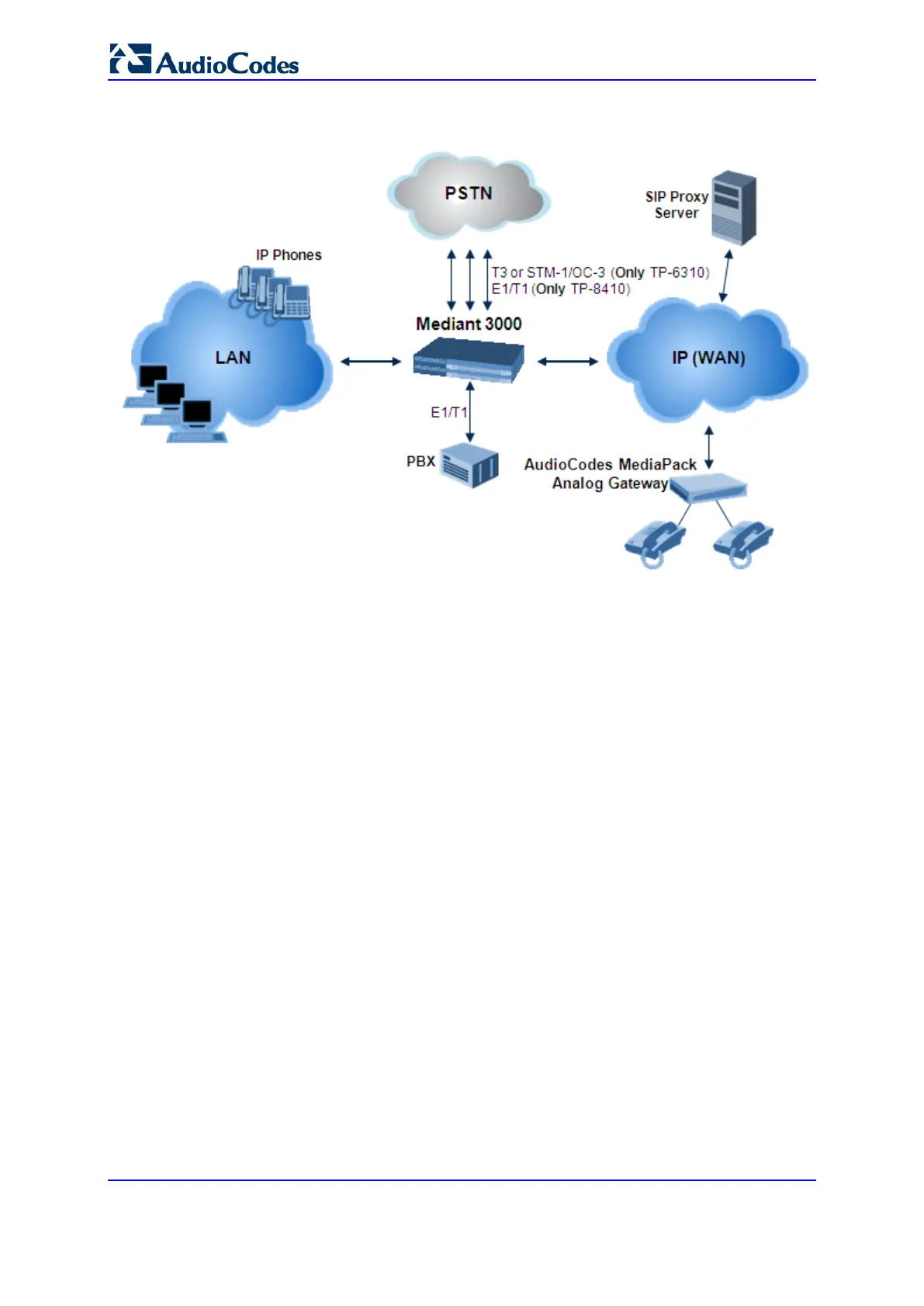

Figure 1-1: Mediant 3000 Typical Application
The device's chassis provides a compact, rugged 19-inch rack mount unit, 2U high (3.5" or
89 mm), designed to meet NEBS level-3 requirements. The device is a four-slot chassis
(four front and rear slots) that houses VoIP communication blades, synchronization and
alarm blades, and rear transition modules (RTM). The front and rear blades interface
through a backplane located in the middle of the chassis. The device's chassis' modular
design allows easy add and replacement of modules. All modules are hot-swappable,
allowing component replacement while the system is fully operational with no disruption to
service. The device contains the following main components:

Up to two VoP communication blades

RTM's (amount and type depend on the implemented VoP blade)

Up to two SA/M3K Synchronization and Alarm blades

Up to two Power Entry modules

Up to two Power Supply module
These components function in either an Active/Standby redundant or load-sharing
configuration to provide full continuous performance coverage and are ideal building blocks
for deploying high-density, high availability, Voice-over-Packet systems.
The device can operate in one of the following modes:

Simplex Mode: This mode provides only one VoP communication blade and one
Synchronization and Alarm blade (SA/M3K). In this mode, the device can also support
an optional, integrated CPU (iCPU) for third-party applications.

High Availability 1+1 (HA) Mode: This mode provides system redundancy. The
device houses two VoP communication blades (one active and one standby), two
RTMs, and two Synchronization and Alarm blades. The device's hardware design
contains redundant modules for every part of the system, including redundant network
connectivity, comprehensive switchover processing and backup data storage and
access, as well as applicable load-sharing schemes. In addition, components are hot-
swappable so that they can be replaced while the system is fully operational with no
disruption to service.
