The associations between the configuration entities are summarized in the following figure:

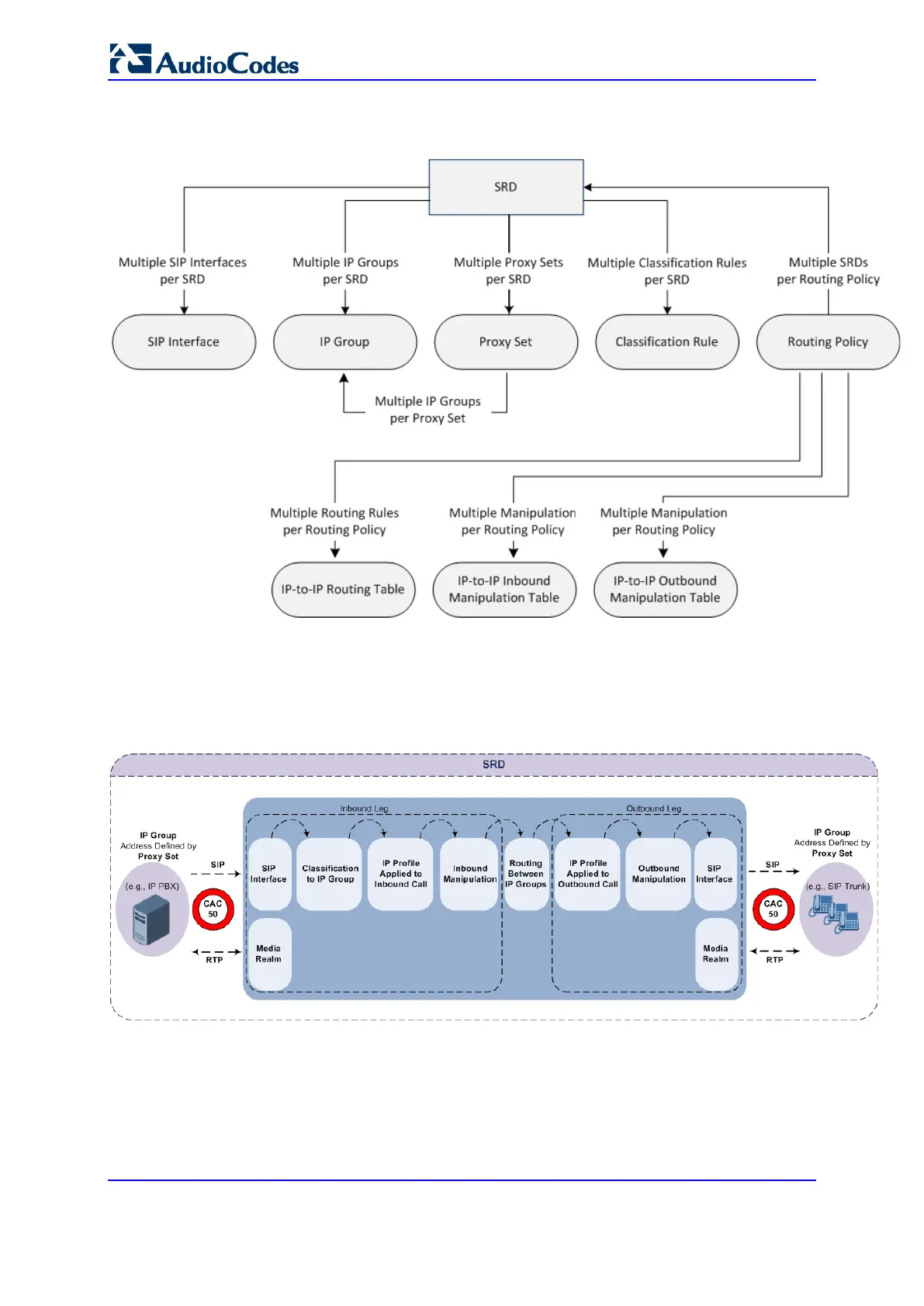

Figure 1-5: Association of Configuration Entities
The main configuration entities and their involvement in the call processing is summarized
in following figure. The figure is used only as an example to provide basic understanding of
the configuration terminology. Depending on configuration and network topology, the call
process may include additional stages or a different order of stages.
Figure 1-6: SBC Configuration Terminology for Call Processing
1. The device determines the SIP Interface on which the incoming SIP dialog is received
and thus, determines its associated SRD.
2. The device classifies the dialog to an IP Group (origin of dialog), using a specific
Classification rule that is associated with the dialog's SRD and that matches the
incoming characteristics of the incoming dialog defined for the rule.
3. IP Profile and inbound manipulation can be applied to incoming dialog.
