User's Manual 438 Document #: LTRT-89730
Mediant 3000

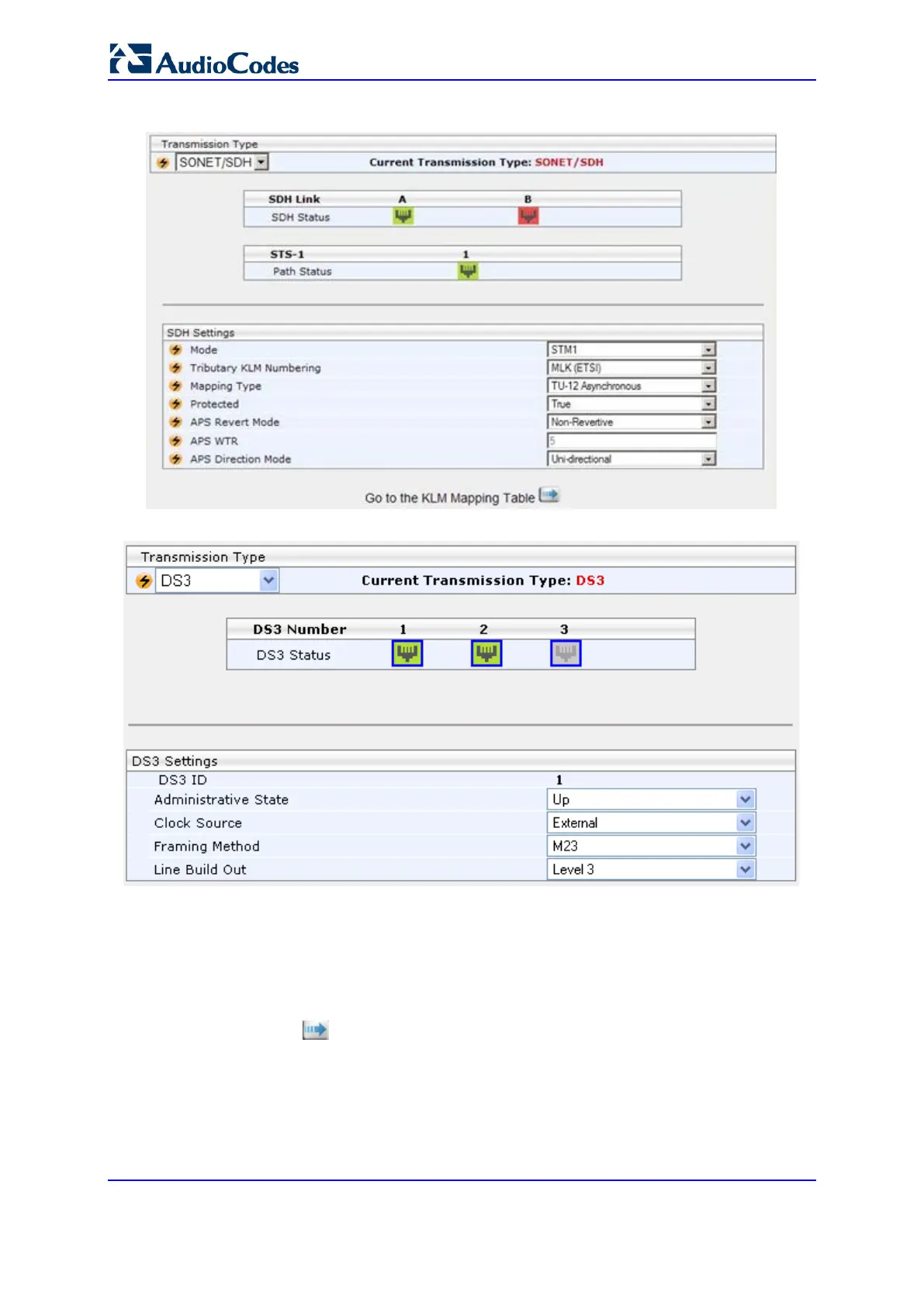

Figure 22-5: Transmission Settings Page (SONET/SDH)
Figure 22-6: Transmission Settings Page (DS3)
3. Click the channel icon (SDH Link for SONET/SDH, or DS3 Number for DS3), and
then define the transmission settings as required.
4. Click Submit.
5. Reset the device and save your settings to the flash memory (see ''Resetting the
Device'' on page 669).
For SDH/SONET, to view the KLM Numbering Mapping Table page, click Go to the KLM
Mapping Table button. For a description on KLM numbering, see ''Trunk Numbering
(KLM Numbering)'' on page 455.
