Note: If the originally received ISDN cause code is configured in both the Release
Cause ISDN to ISDN table and the Release Cause Mapping ISDN to SIP table, the
mapping rule with the originally received code in the Release Cause Mapping ISDN to
SIP table is ignored; the device uses only the mapping rule in the Release Cause
Mapping ISDN to SIP table that matches the new ISDN cause code. For example, if
you configure a mapping rule in the Release Cause ISDN to ISDN table to change a
received 127 code to 16, the device
searches for a rule in the Release Cause
Mapping ISDN to SIP table for an ISDN code of 16 (ignoring any entry with code
127).
The following procedure describes how to configure ISDN-to-ISDN release cause mapping
through the Web interface. You can also configure it through ini file (CauseMapIsdn2Isdn).
 To configure a ISDN-to-ISDN release cause mapping rule:
1. Open the Release Cause Mapping from ISDN to ISDN table (Configuration tab >
VoIP menu > Gateway > Manipulations > Release Cause ISDN > ISDN).
2. Click Add; the following dialog box appears:

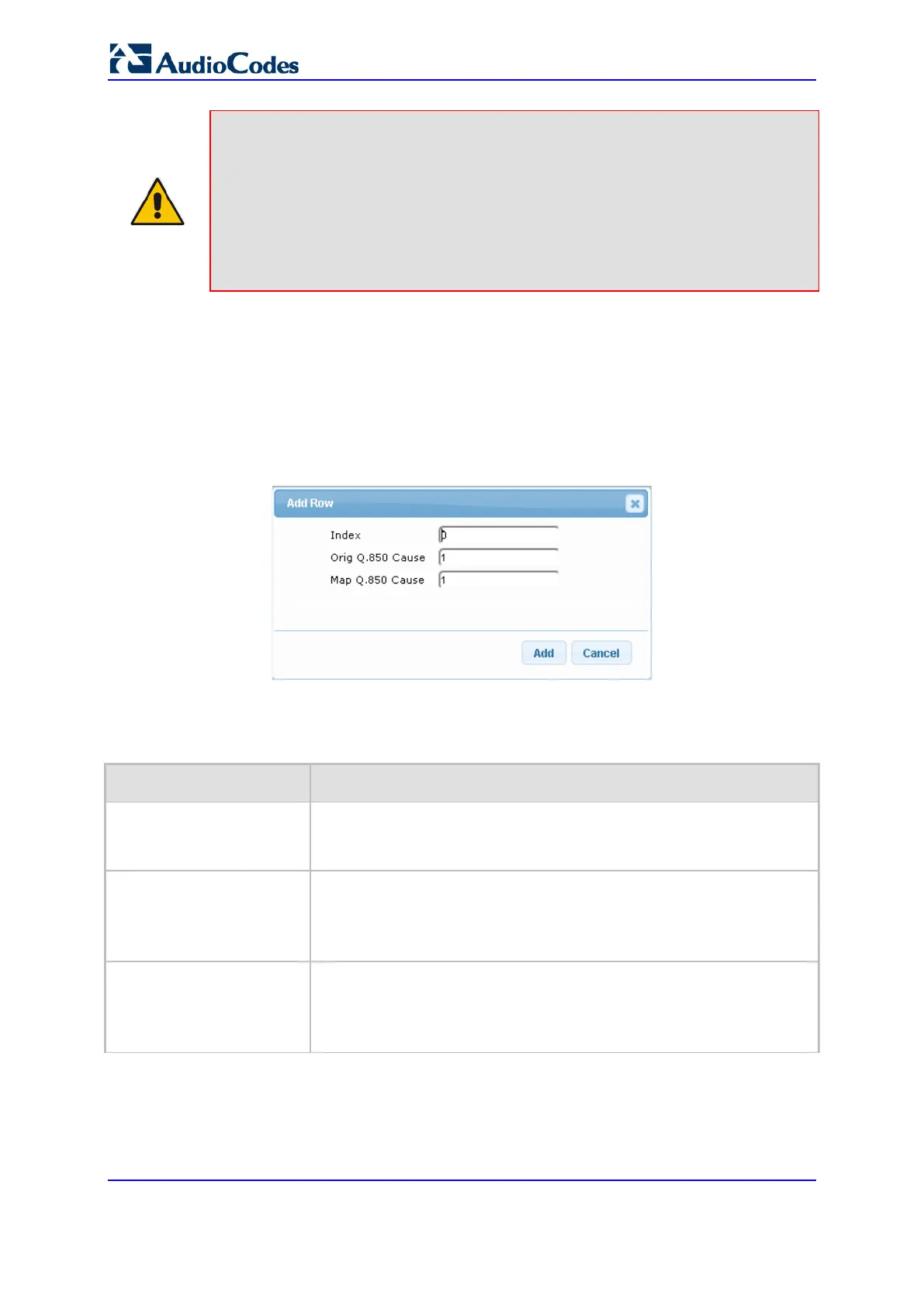

Figure 24-8: Release Cause ISDN to ISDN Table - Add Row Dialog Box
3. Configure a mapping rule according to the parameters described in the table below.
4. Click Add.
Table 24-11: Release Cause Mapping ISDN to ISDN Table Parameter Descriptions
Parameter Description
Index
[CauseMapIsdn2Isdn_Inde
x]
Defines an index number for the new table row.
Note: Each row must be configured with a unique index.
Orig. Q.850 Causes
[CauseMapIsdn2Isdn_OrigI
sdnReleaseCause]
Defines the originally received ISDN Q.850 cause code. For example,
you can enter "127" (without apostrophes) to represent cause code 127
Interworking, Unspecified.
The valid value (cause code) is 1 to 127.
Map Q.850 Causes
[CauseMapIsdn2Isdn_MapI
sdnReleaseCause]
Defines the ISDN Q.850 cause code to which you want to change the
originally received cause code. For example, you can enter "16"
(without apostrophes) to represent cause code 16 Normal Call Clearing.
The valid value (cause code) is 1 to 127.
