User's Manual 674 Document #: LTRT-89730

Mediant 3000

• Toolbar: Click the Device Actions button, and then choose Reset Redundant

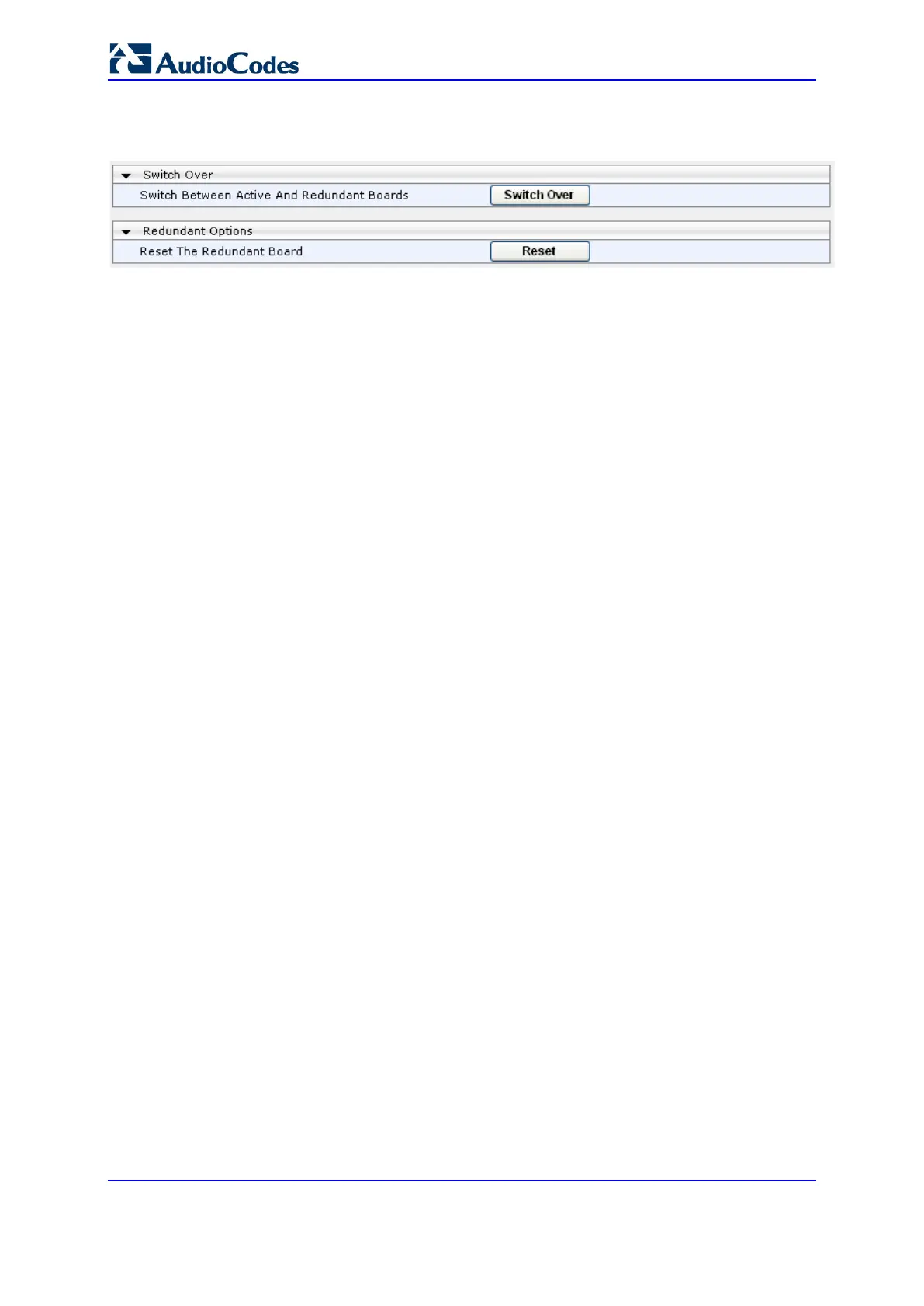

Figure 42-2: High Availability Maintenance Page

2. Under the 'Redundant Options' group, click Reset; a confirmation box appears

requesting you to confirm.

3. Click OK.
