Registration Test Call Scenario: This example describes the configuration for testing
the registration and authentication (i.e., username and pas,sword) process of a
simulated test endpoint on the device with an external proxy/registrar server. This is
useful, for example, for verifying that endpoints located in the LAN can register with an
external proxy and subsequently, communicate with one another.

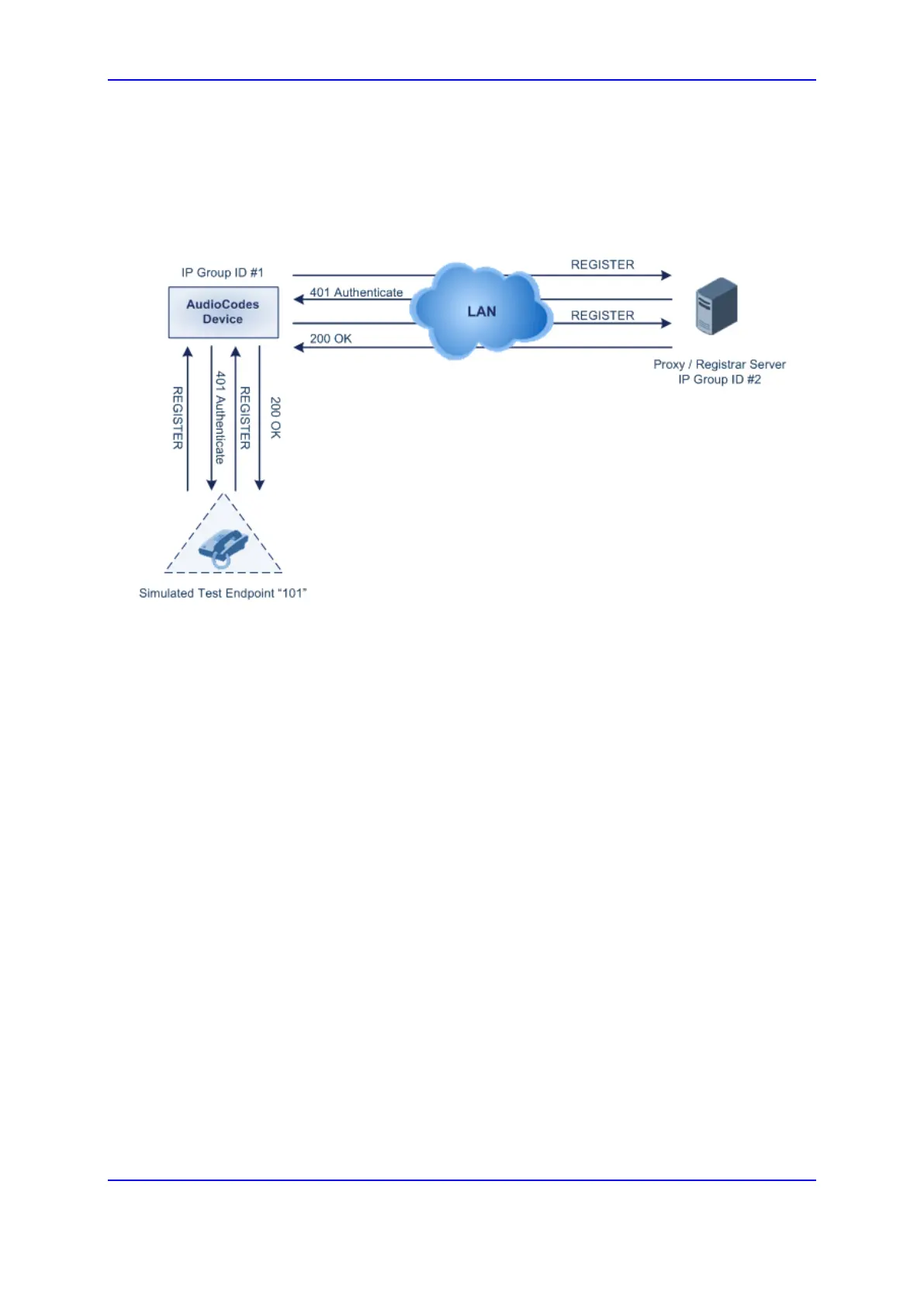

Figure 56-10: Test Call Registration Example
This example assumes that you have configured your device for communication
between LAN phone users such as IP Groups to represent the device (10.13.4.12)
and the proxy server, and IP-to-IP routing rules to route calls between these IP
Groups.
• Test Call table configuration:
♦ Endpoint URI: "101"
♦ Called URI: "itsp"
♦ Route By: Dest Address
♦ Destination Address: "10.13.4.12" (this is the IP address of the device itself)
♦ SIP Interface: SIPInterface_0
♦ Auto Register: Enable
♦ User Name: "testuser"
♦ Password: "12345"
♦ Call Party: Caller
