Off Delay Timer (OFFDTMR) (IB-302)
Off Delay Timer will delay the “turning off” of the Output parameter by the specified Off
Delay Time (up to 99.99 seconds) based on the power flow into the IBox. Once the IBox
receives power, the Output bit will turn on immediately. When the power flow to the IBox
turns off, the Output bit WILL REMAIN ON for the specified amount of time (in hundredths
of a second). Once the Off Delay Time has expired, the output will turn Off. If the power
flow to the IBox comes back on BEFORE the Off Delay Time, then the timer is RESET and
the Output will remain On - so you must continuously have NO power flow to the IBox for
AT LEAST the specified Off Delay Time before the Output will turn Off.
This IBox utilizes a Timer resource (TMRF), which cannot be used anywhere else in your
program.

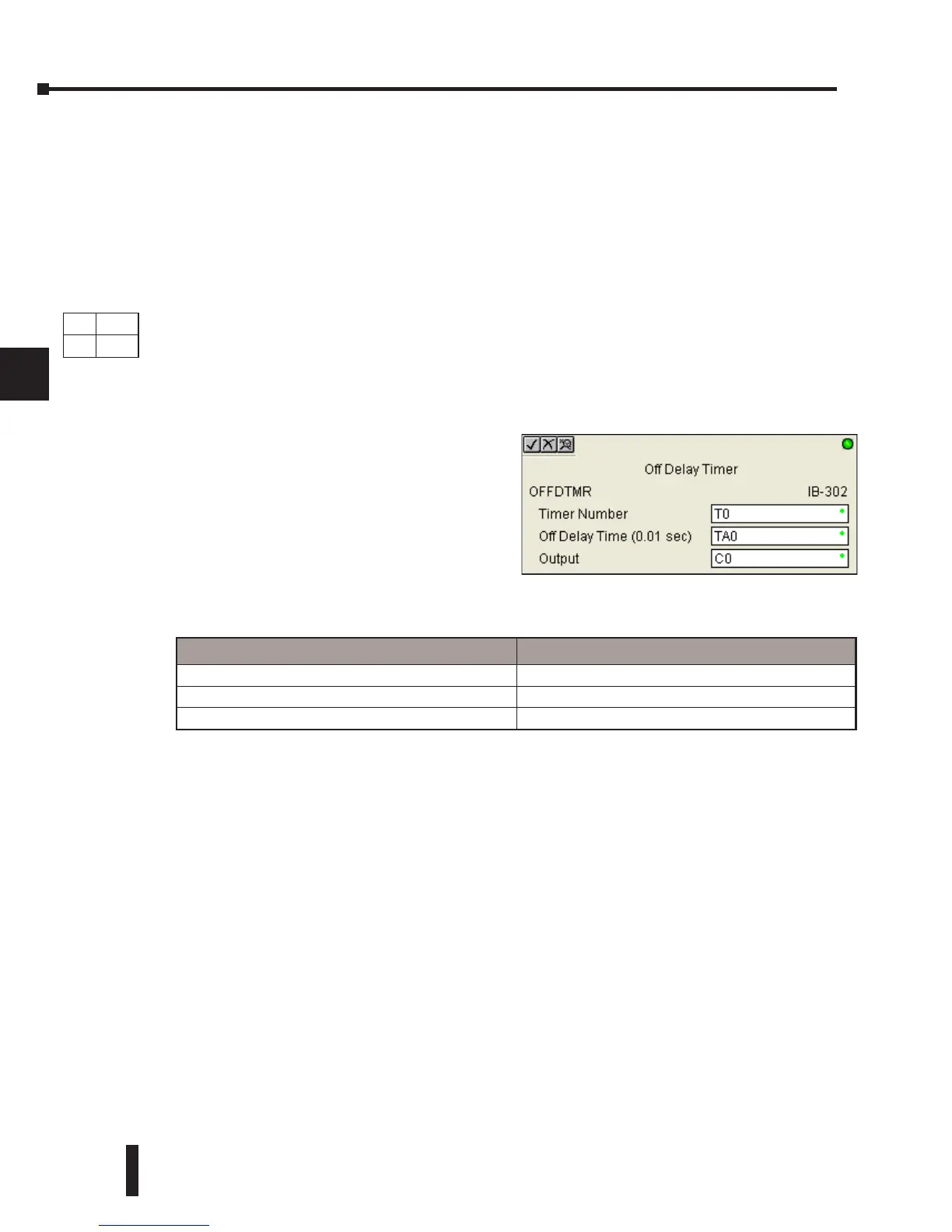

OFFDTMR Parameters
• Timer Number: specifies the Timer (TMRF)
number which is used by the OFFDTMR
instruction
• Off Delay Time (0.01sec): specifies how long
the Output will remain on once power flow
to the Ibox is removed (up to 99.99 seconds).
• Output: specifies the output that will be
delayed “turning off” by the Off Delay Time.
Parameter DL205 Range
Timer Number ⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠ T T0-377
Off Delay Time ⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠K,V K0-9999; See DL205 V-memory map - Data Words
Output⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠X, Y, C, GX,GY, B See DL205 V-memory map
DS5 Used
