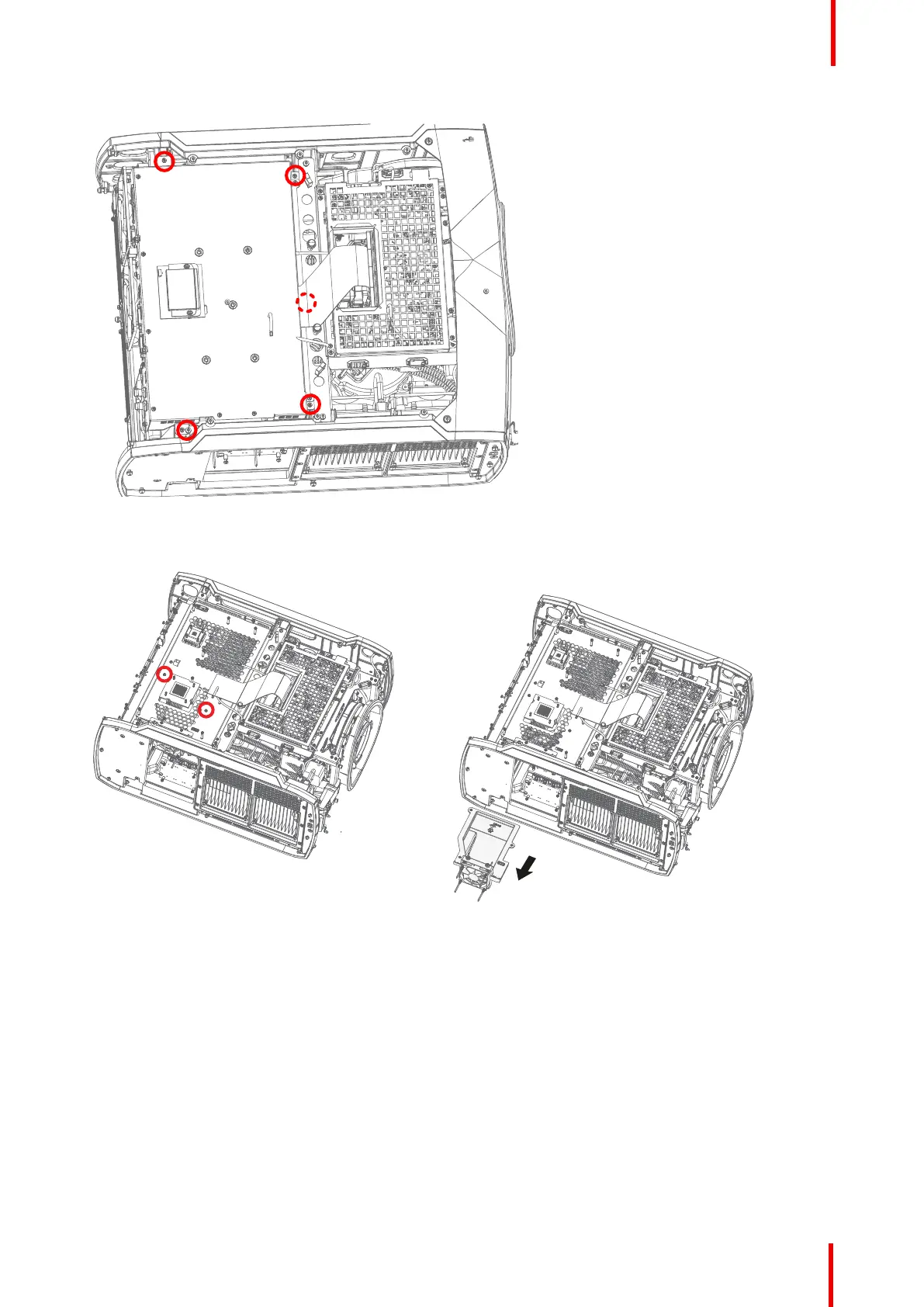

Image 17-19: Release 5 screws.
Remove 2 screws which holds the fan bracket, and pull the bracket out. Release the cable.
Image 17-20
Release the screw and remove the Temp sensor board
Assembly hierarchy
