7230018 /02 F70112

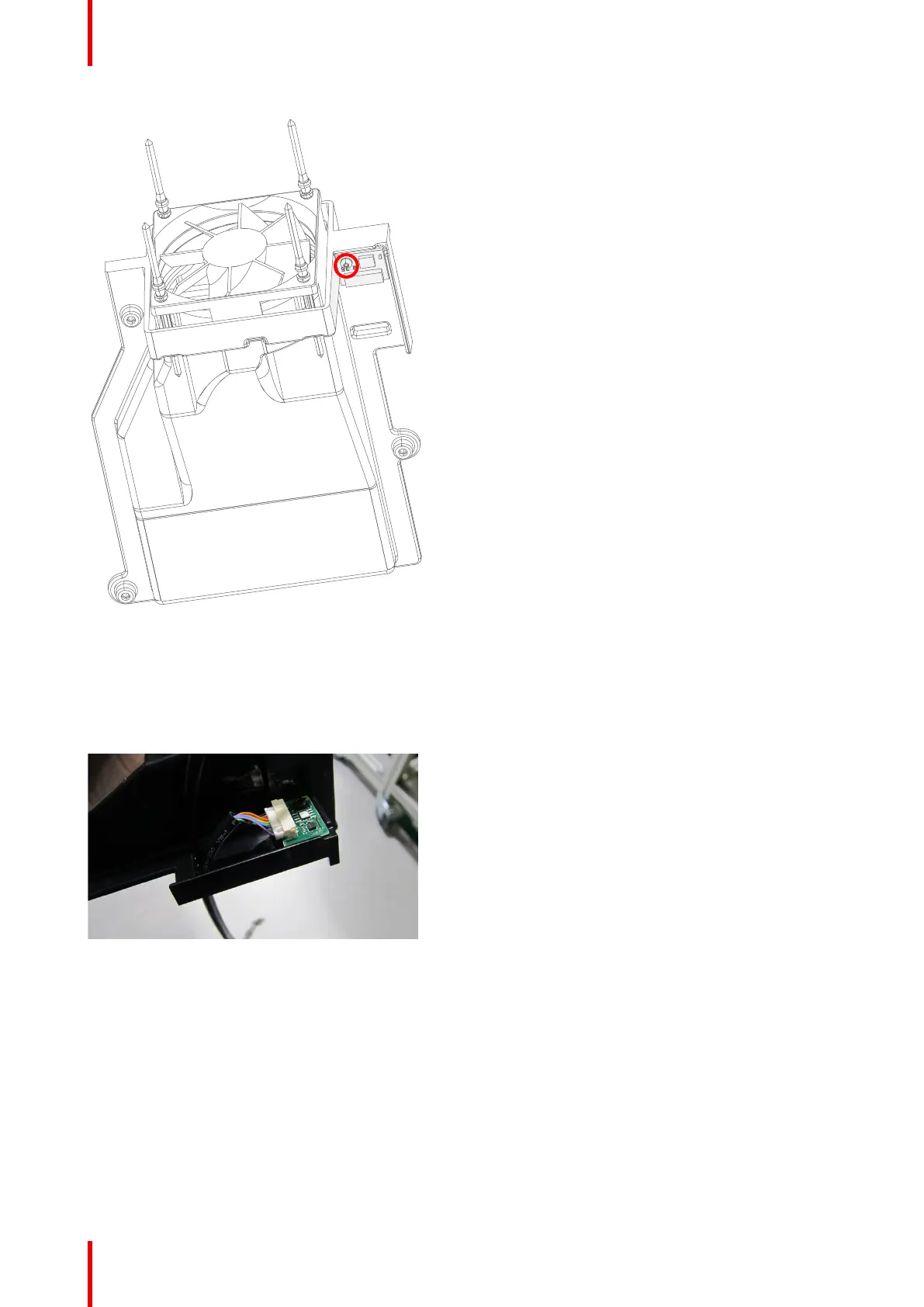

Image 17-21: Temp sensor board Inlet
1. This PCB is located on the FAN FPGA Scaler Airguide
2. Disconnect the cable and remove one screw (T8 M2,5x6)
The sensor PCB is identical to below PCB Inlet sensor:
504-0609-XX GP6 PCB Temp, Pres & Hum Board
Image 17-22
17.4.7 PCB temp sensor board #2 (Outlet)
This PCB is located underneath the PCB main.
PCB and is secured by one screw T8M2,5x6
The sensor PCB is identical to above PCB Inlet sensor:
504-0629-XX GP6 PCB Temp, Pres & Hum Board
