Barco F70 - PCB lens connectors; Lens shift assembly and optical actuator

723–0018 /02 F70160
Image 22-4

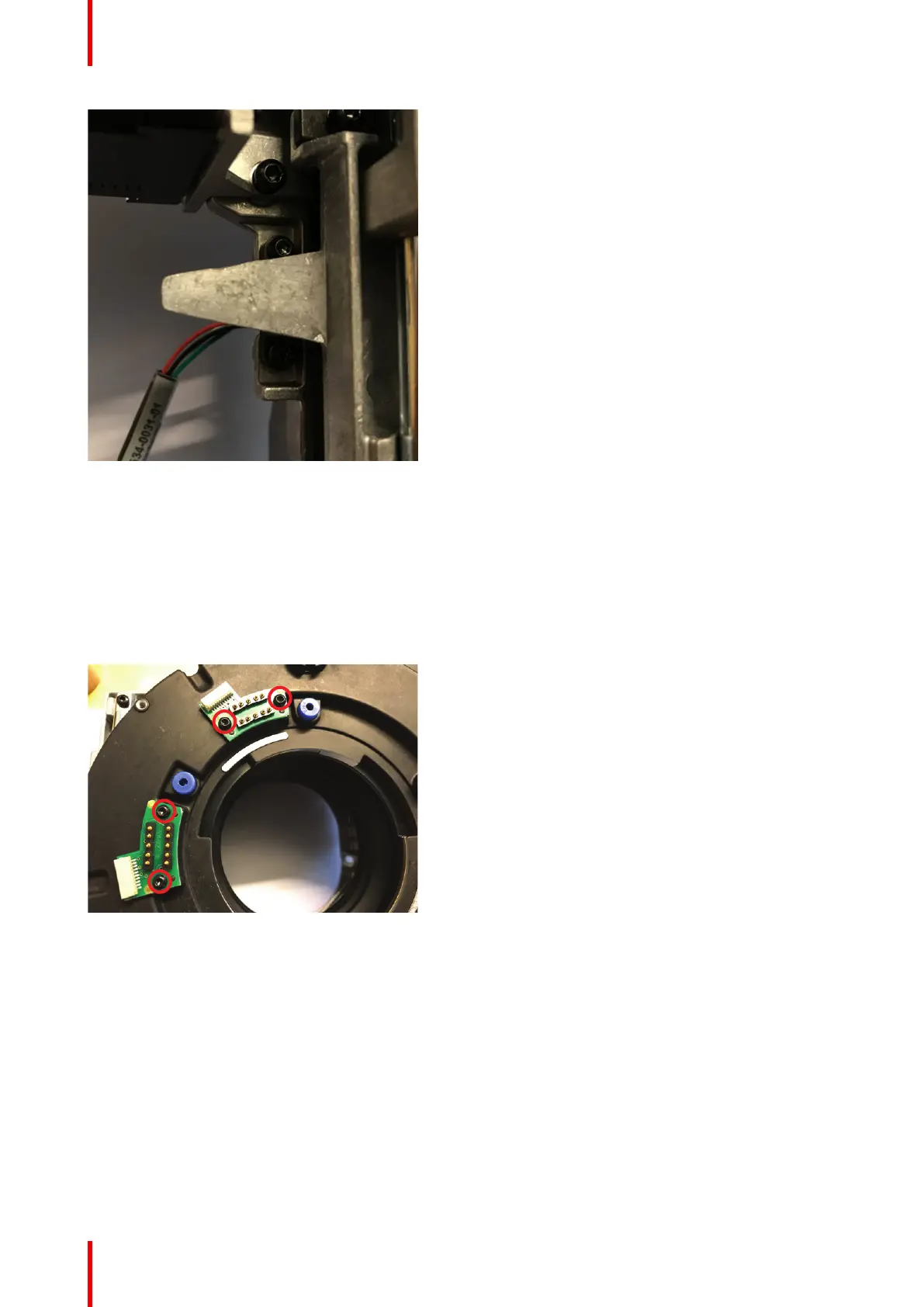

22.3 PCB lens connectors
1. Release 2 screws (M3x8 TX10) to remove each PCB lens conn.
- Left PCB is traditional PCB lens communication. Connects to PCB Lens Hub J7
Top PCB is responsible for logical communication, storing of lens positions (Next EN6x series lens
generation). Connects to PCB lens Hub J40
Image 22-5
22.4 Lens shift assembly and optical actuator
1. Remove the screws connecting the Assembly and the bracket on the top.
2. Remove 4 screws (TX20 M4x12) available from inside lens opening.
Lens shift assembly
