723–0018 /02 F70152

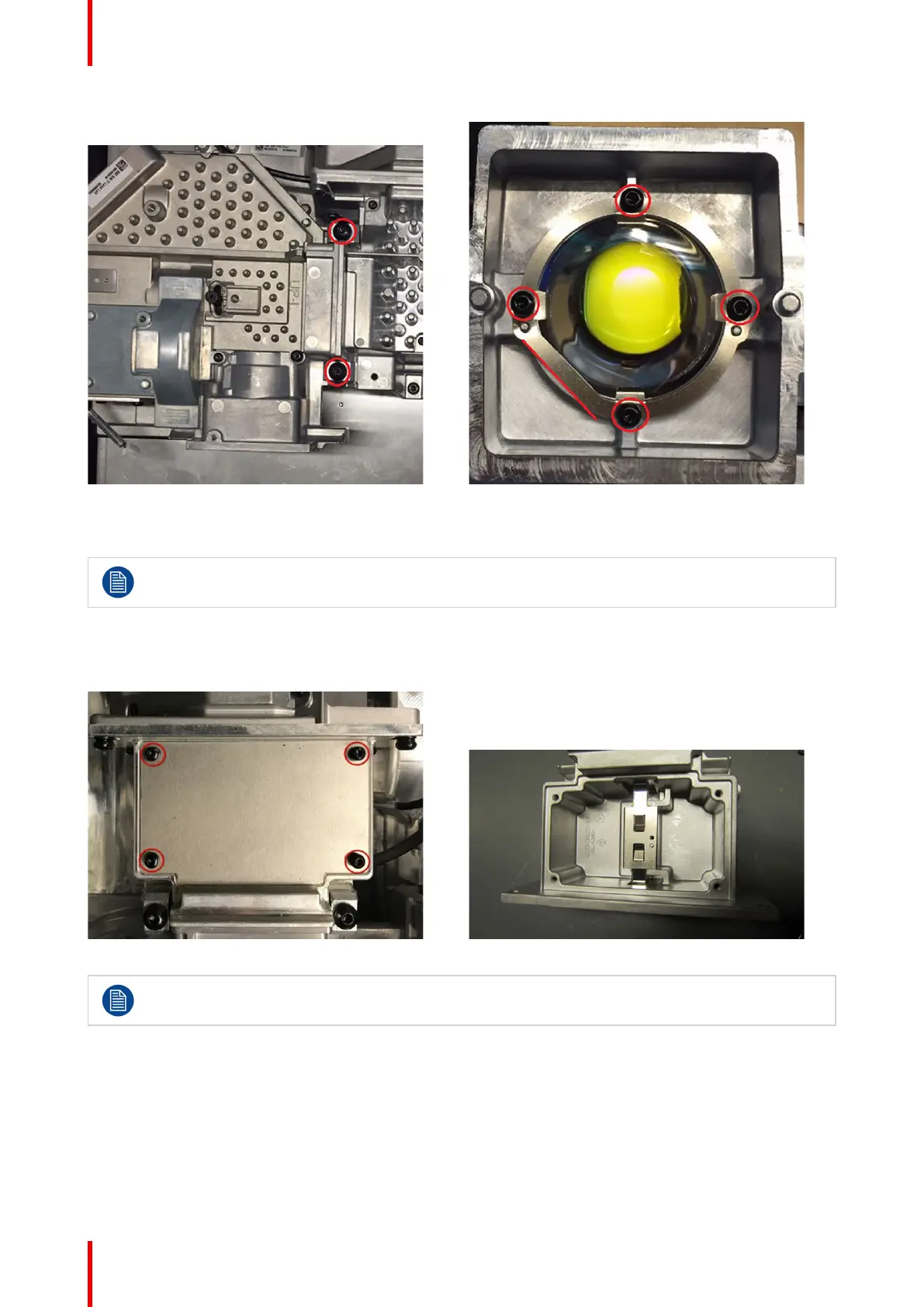

Image 20-15 Image 20-16
20.3.10 Rod carrier
The exit hollow rod shapes the spherical light into a rectangular frame before the Illumination
Engine.
1. Remove 4 screws (TX10 M3x8) and remove rod cover.
2. Remove 1 screw (TX10 M3x8), remove clip ROD and finally the rod.
Image 20-17 Image 20-18
Do NOT touch surfaces of glass rod with fingers. This will drastically reduce light output, and may
destroy the component.
TI loop
