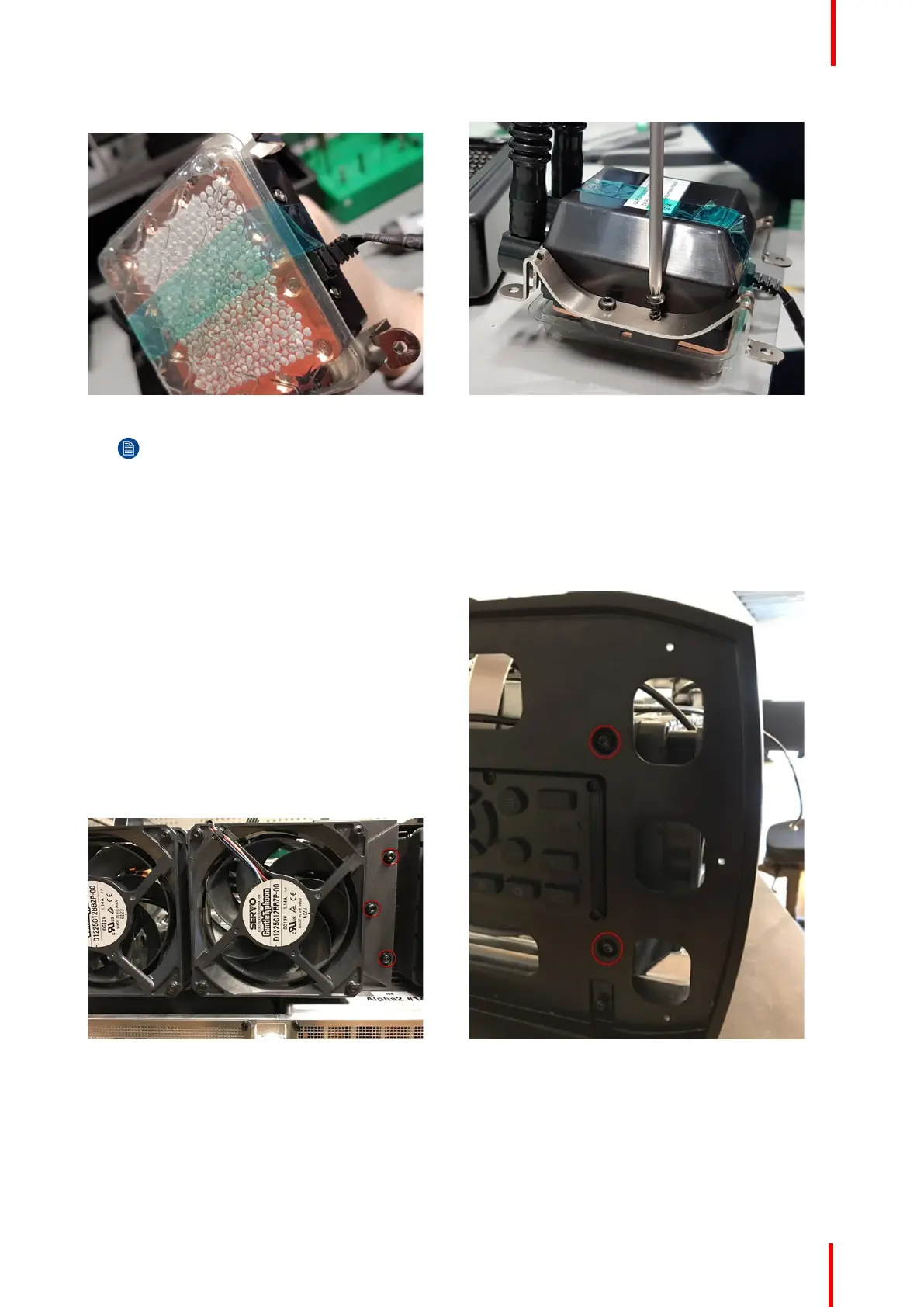

Image 18-39 Image 18-40
Note: Handle pumps and tubing with care! See “Liquid cooling system, generic handling instructions.”,
page 128describing preferred handling.
18.3.5 Liquid cooling pump for DMD.
1. Release 3 screws TX20 at right hand side of exhaust fan frame
2. Release 2 screws (TX20) throug left aluminum frame and lift out frame including fans
Image 18-41 Image 18-42
3. Release 2 screws TX20 at left hand side of exhaust fan frame
4. Release 4 screws TX20 throug right aluminum frame and lift out frame including fans.
