Overview
•
Explanation of the codes
• Troubleshooting checklist
• Log files
16.4.1 Explanation of the codes
Overview
An unique numeric code which indicates the source of the error (the board or functional part that notifies the
problem) and the sensor or sub location that shares the information.

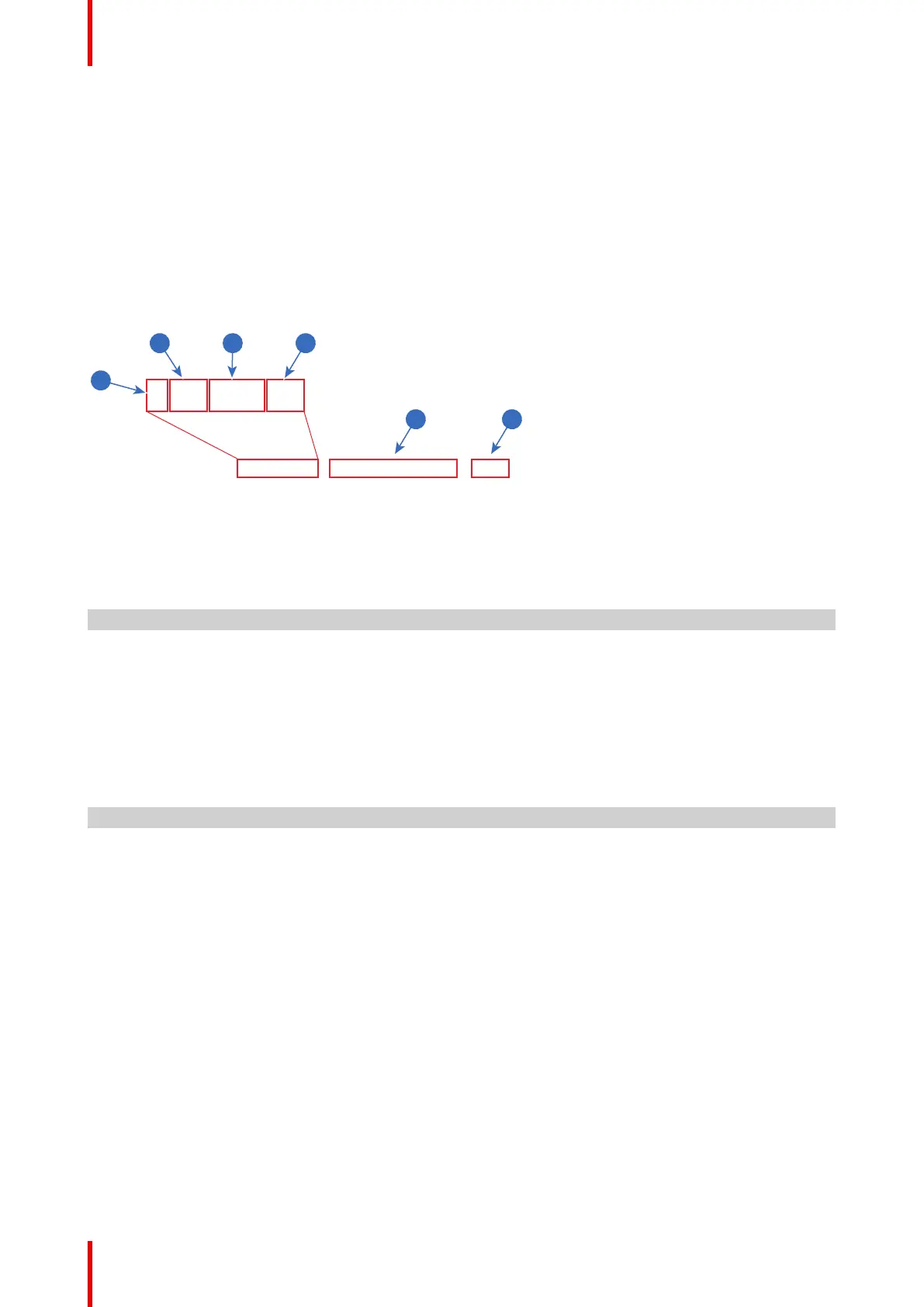

Code X0000000: “XXX - xx xxxxxxx” (Error)
X0000000
2 3 4
1
5 6
Image 16-3
1 Category
2 Physical location
3 Physical sub location
4 Optional indicator
5 Message
6 Type
Category
Category Description
S System
L Illumination (Light Source)
E Mainboard, Thermal Hub, Laser Driver Board, SMPS (PSU), Formatter, Color wheel
B Board detection
I Input
Physical location
Indicates the source of the error.
Physical location
Value Comments
Mainboard 00h
Laser driver 0 ("A" labelled
connectors) *
10..15h 10h=bank0
11h=bank1
12h=bank2
13h=bank3
14h=bank4 (only on V3)
15h=bank5 (only on V3)
Laser driver 1 ("B" labelled
connectors)*
20..23h 20h=bank0
21h=bank1
22h=bank2
23h=bank3
Thermal Hub 40h
Formatter 70h
Color wheel 80h
Mainpower 90h
(*) For further details, see diagram that details wiring layout from laser driver to Appotronics laser bank in
section .
