Barco F70 - GP7 Heatsink DMD Front assembly; Remove the Laser Interface

723–0018 /02 F70 141
19.8 GP7 Heatsink DMD Front assembly
The Heatsink DMD Front Assy from Barco has the Peltier element already mounted.
If the Peltier element is placed on Heatsink DMD REAR ASSY, it must be removed following below
instructions, and recycled.

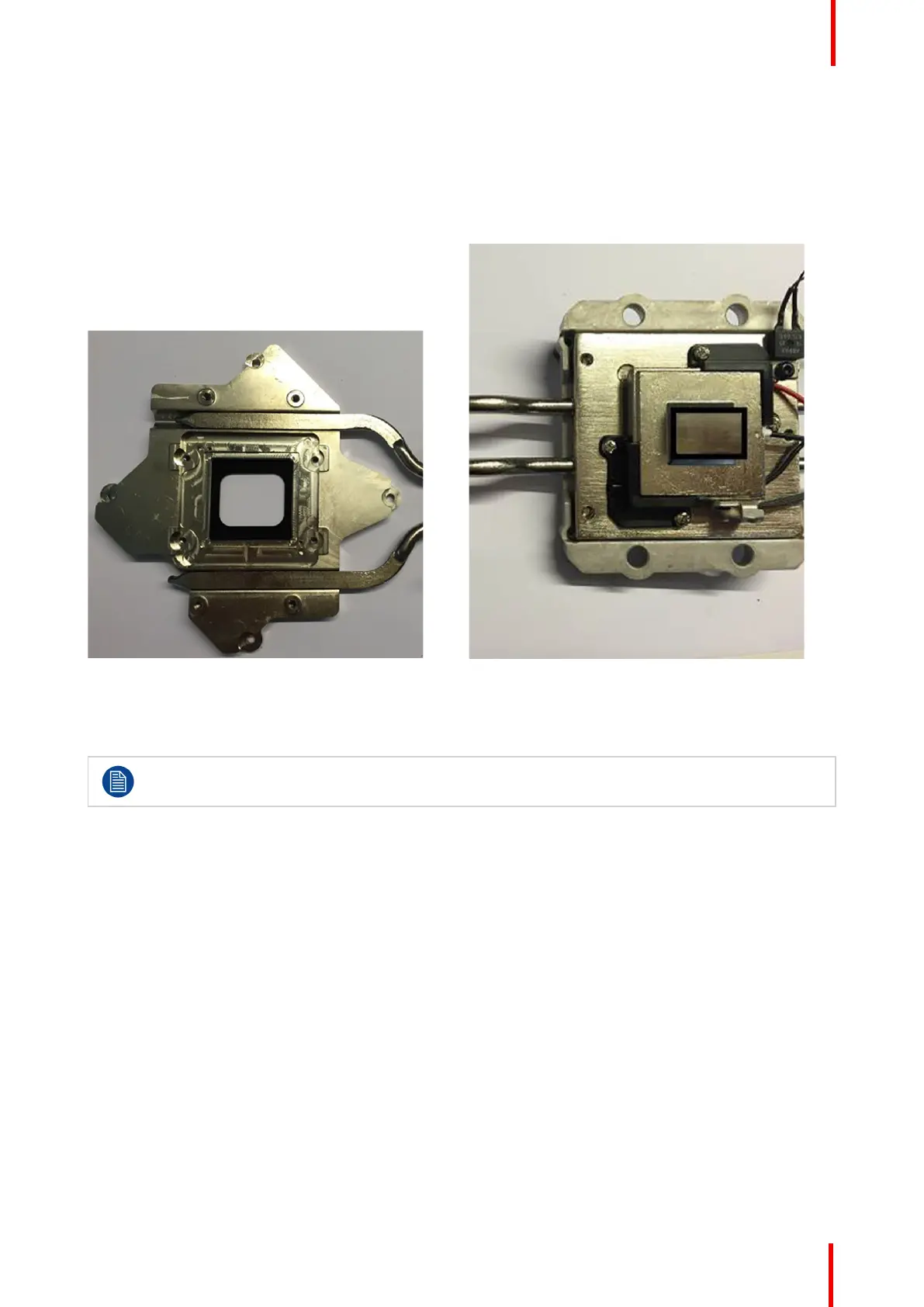

Image 19-17: New GP7 Heatsink DMD Front Assembly Image 19-18: GP7 Heatsink DMD Rear Ass
19.9 Remove the Laser Interface
The Laser Interface must be swapped as a complete assy in the unlikely event of ROD or diffusor
damage.
1. Release 3 pcs TX20 securing bracket core bottom to the base plate and 2 TX10 securing the bracket to the
side frame.
2. Press together and press out the white clips enabling you to lift out the bracket without the bundled cables
behind bracket.
