157
About

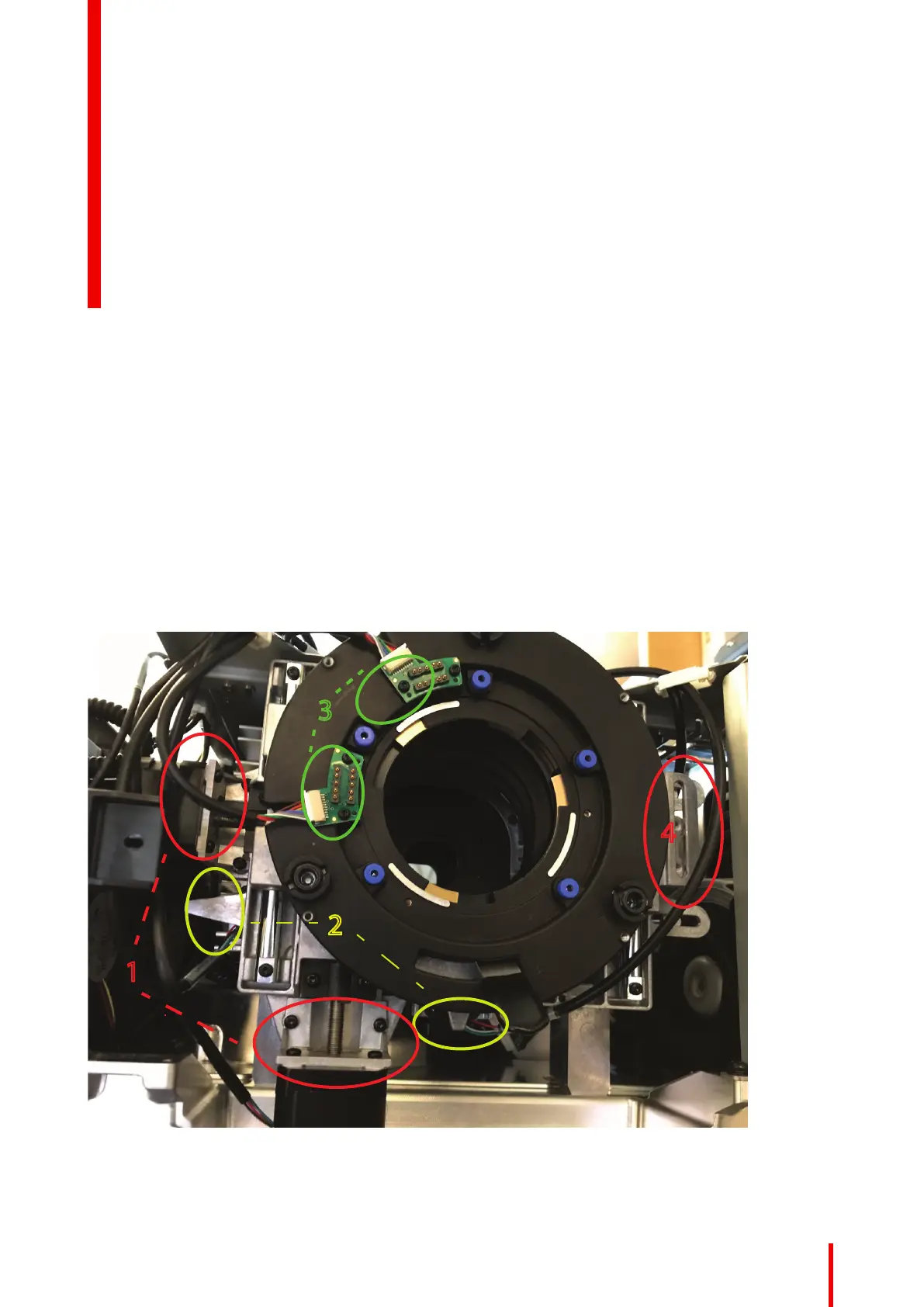

The lens shift assembly is a complex device offered as one complete assembly in the unlikely event of
mechanical malfunction. Only the following components are separately available.
Partnumber complete Lens shift assembly: 9500003.
1. 400-0909-xx Lens shift Motors
2. 534-0031-xx Lens position sensors (390 Sensor Optical End H)
3. 504-0087-xx PCB Lens conn (Pogo pin board).
4. Lens lock/scheimplug screws
1
2
3
4
Image 22-1
7230018 /02 F70
Lens shift assembly 22
