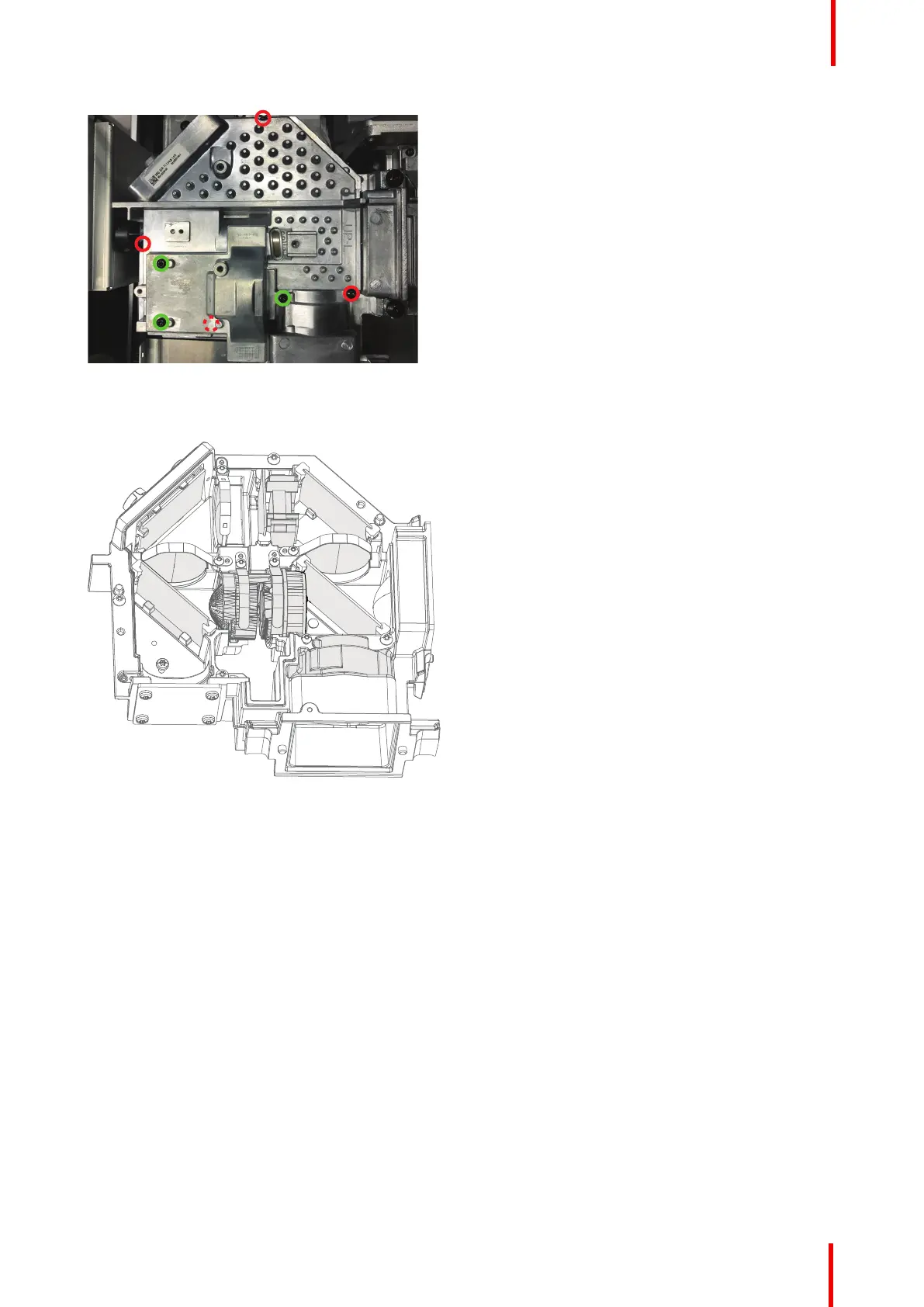

7230018 /02 F70 147
Image 20-2
20.3.2 Overview inside the TI Loop
4
4
4
1
5
6
5
7
2
8
8
3
Image 20-3
1 Dichroic filter B/Y
2 Barrel Phosphor lens
3 Blue depolarizer
4 Mirror blue roundabout
5 Blue loop lens 3
6 Blue loop lens 4
7 Diffuser blue loop
8 RGBY Converging lens
20.3.3 Dichroic Filter B/Y
1. Gently lift out the mirror by pulling the two wedges. NOTE the small red dot on the mirror corner indicating the
direction of the dichroic filter.
TI loop
