Barco F70 User Manual

723–0018 /02 F70144

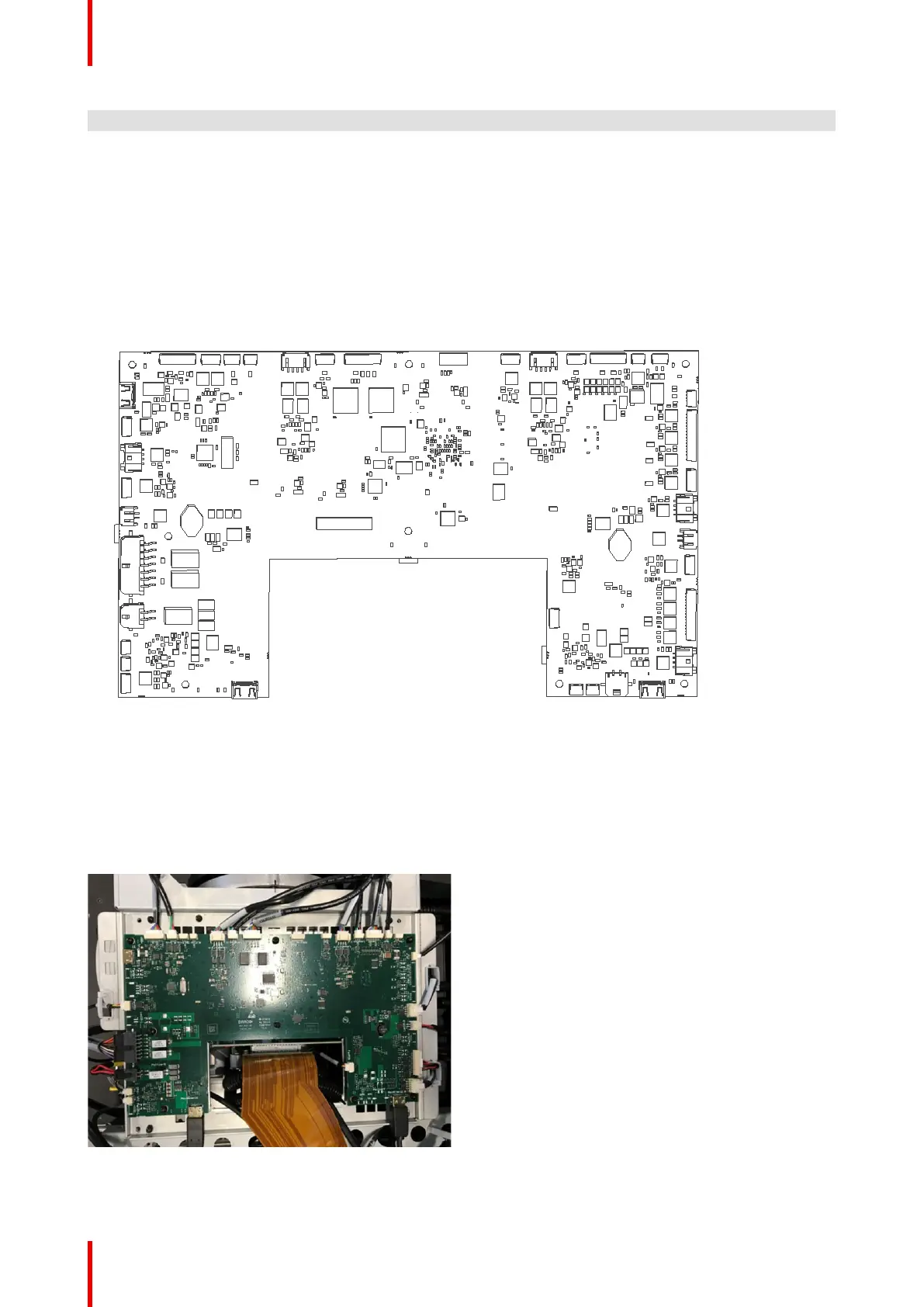

Cable overview (from clockwise), as shown in figure below.
11. Lenspos-V (Vert.) 30. NTC R (NTC DMD rear)
12. Lens 2 31. DPS
13. Wobbulator (Pixelshift) 4K only 32. Peltier R (Peltier DMD Rear)
14. SW 33. Power Hub
15. IR Front 34. Led IR L (FS90 only)
16. Fan In 1-2-3 35. FAN PSU
17. Fan In 4 36. FAN DRV (Laser driver)
18. Fan In 5. 37. FanOpt (Optics).
19. LedIR-R (FS90 only) 38. USB+Trig
1 2 3 4 5 6 7 8 9 10 12 13 14
15
16
17
18
19
20
21
22
23242526
27
28
29
30
31
32
33
34
11
35
36
37
38
Image 19-24
19.11.2 PCB Thermal hub, complete assy removal
In order to access PCB BE, DMD etc underneath, PCB lens hub can be removed mounted on Bracket main
bottom.
1. Remove 8 screws (Tx10 M3x10), disconnect all cables and remove the board.
Image 19-25
Technical operations
