723–0018 /02 F70156

Image 21-7

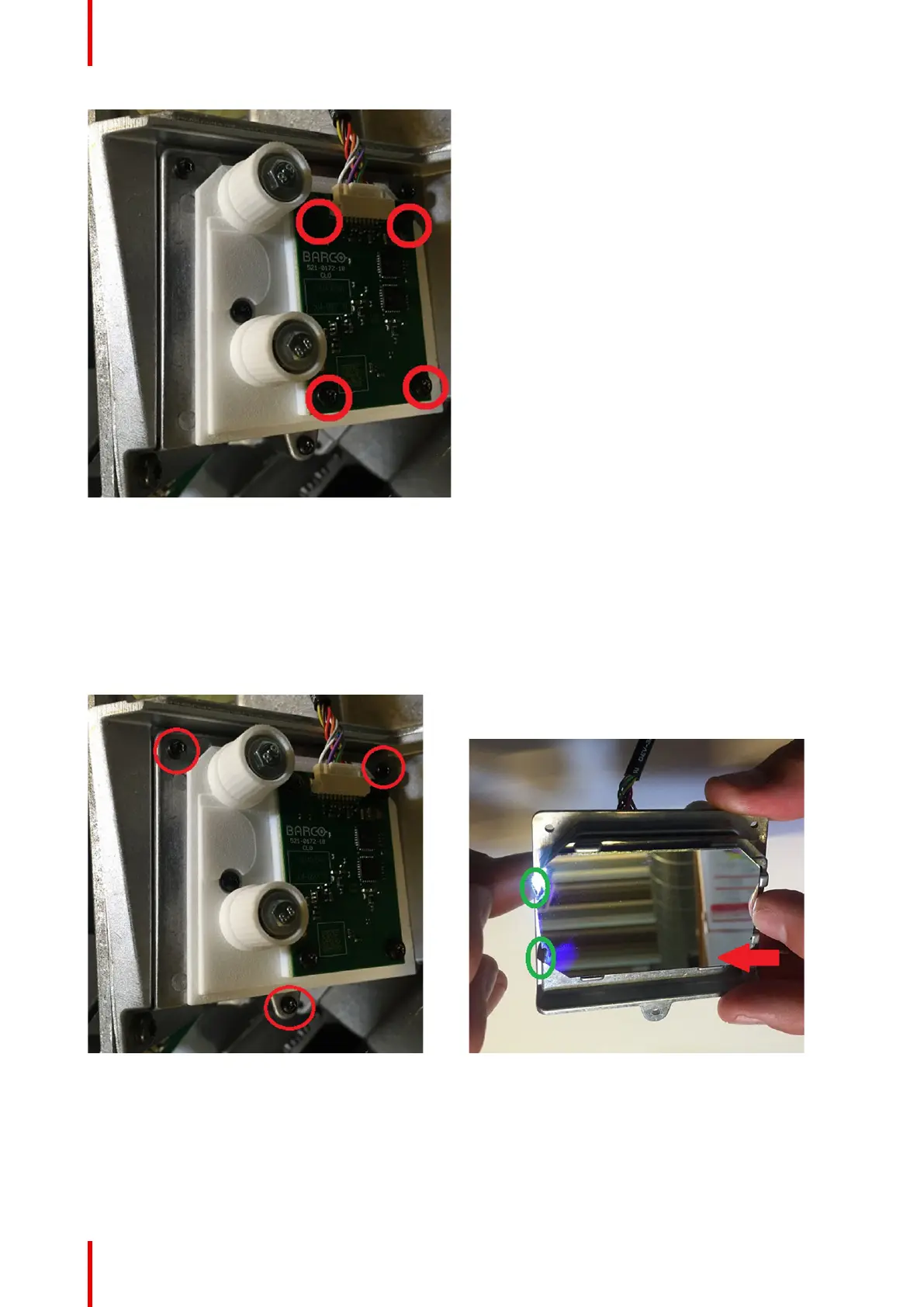

21.4 Folding mirror assembl

1. 1. Remove 3 screws (TX8 M2.5x6) and lift out mirror assembly. Use the same tool as for the CLO removal.

2. 2. To release mirror, push mirror towards the clips to release mirror from the two retainers.

The rear side of mirror has a bluish reflection. This shall face down towards mirror frame.

Image 21-8 Image 21-9

Illumination Engine
