7230018 /02 F70 47

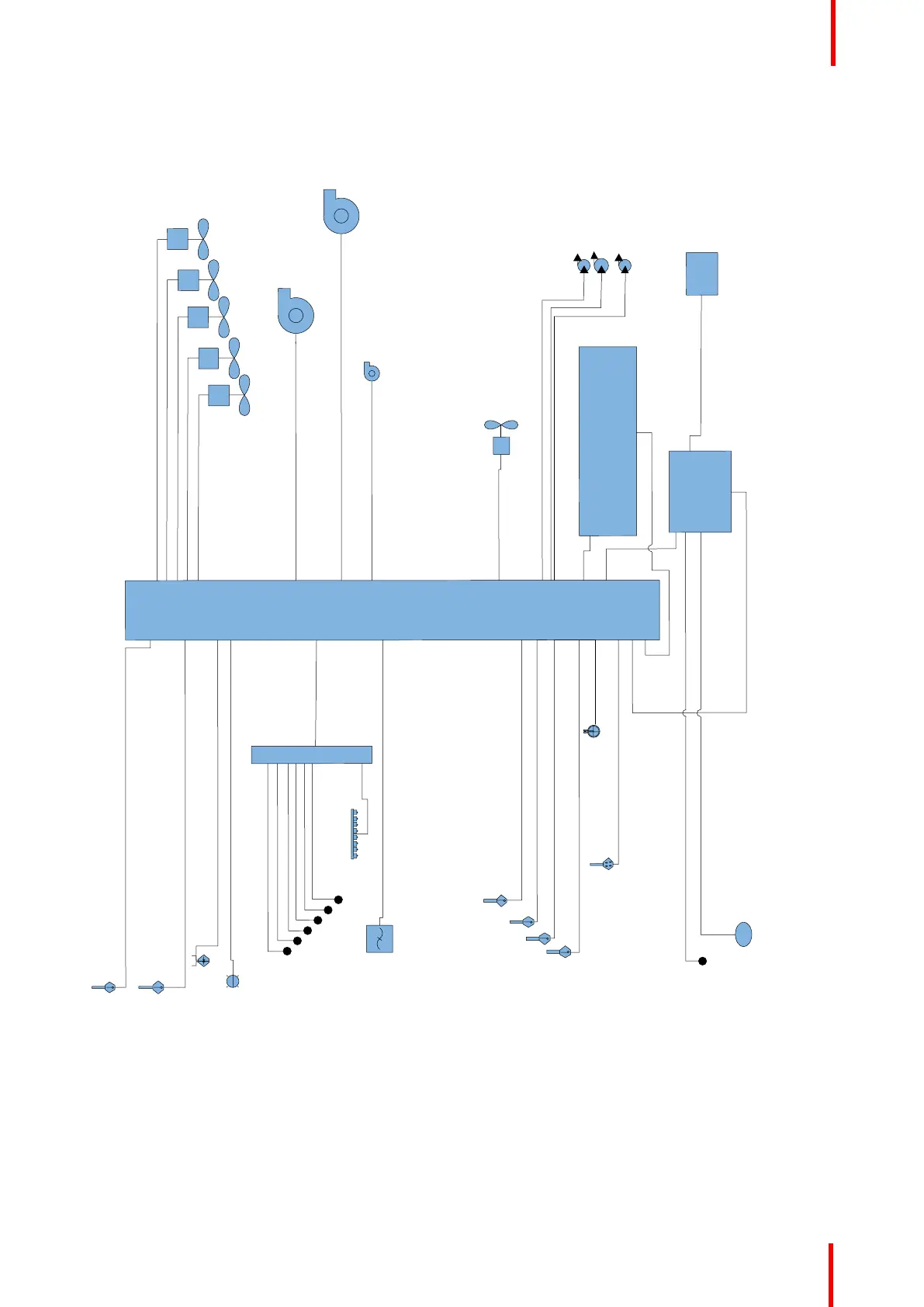

Schematic thermal overview
Output
Control
Input
Laser Driver
Pressure sensoor
Temp outlet
Temp inlet
NTC [TM lasers]
CLO sensor
Temp PCB FPGA
Orientation sensor
RH% Humidity sensor
N
TC DMD Main [Rear]
Fan PSU
Fan Optics
Fan Phosphor
Fan PCB Scaler
PUMP 1 liquid cooling
Peltier Main [rear]
Peltier control
Main Power Suply
Laser Power level
Dew point sensor
Fan Inlet 1
Fan Inlet 2
Fan Outlet 1
Fan Outlet 2
Fan Outlet 3
DMD
PUMP 2 liquid cooling
PUMP 3 DMD liquid cooling
Temp PCB cyclone 5
Temp PCB IMX6
Temp PCB
Air /Smoke Filter switch
Image 8-2
8.2 Liquid cooling system
The primary cooling system comprises three (3) liquid cooling pumps, two for the laser cluster and one for
cooling of the DMD.
