Barco F70 - Barrel PW lens Assy; Mirrors Blue

723–0018 /02 F70148

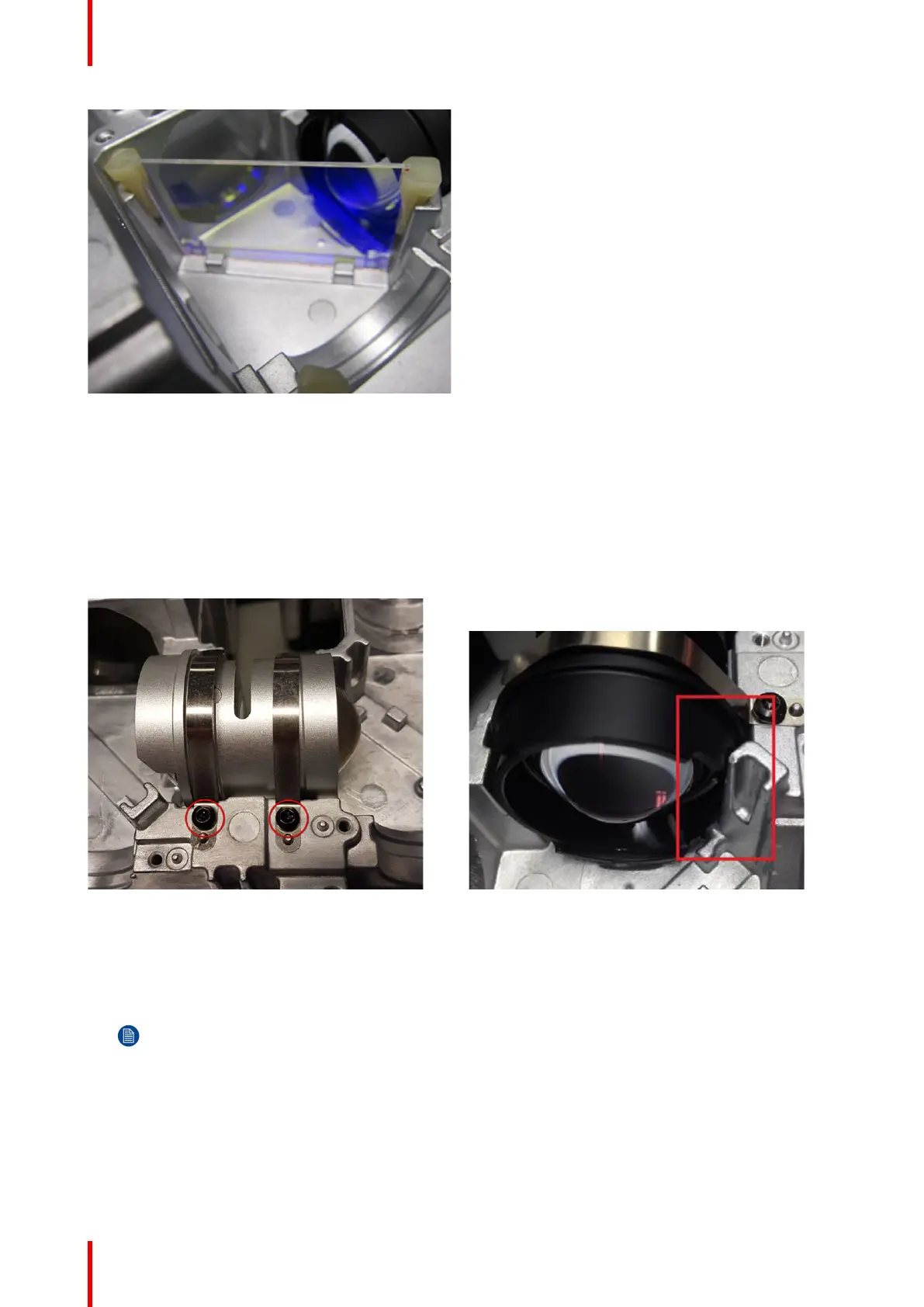

Image 20-4
20.3.4 Barrel PW lens Assy
1. Remove screw (TX08 M2.5x6)
2. Remove the clip holding lens in place.
3. Gently lift out the lens.
4. Mount the lens back in the trace in Engine Blue Loop bottom, see picture.
Image 20-5 Image 20-6
20.3.5 Mirrors Blue
1. Use the wedges to gently pull out the blue mirrors.
The red mark on the blue mirror should point INWARDS as shown in picture.
Note: The outer wedge holding first blue mirror is modified in order to not conflict with the Top Cover.
TI loop
