Barco F70 - Fan and Pump. Numbering and Location

723–0018 /02 F7050
Part Number Description Approx. Nominal RPM (25degC,
0m asl)
504-0001-xx Fan 70x20 Axial 2150
Pin 1: 12V DC RED
Pin 2: TACHO YELLOW
Pin 3: GND BLACK

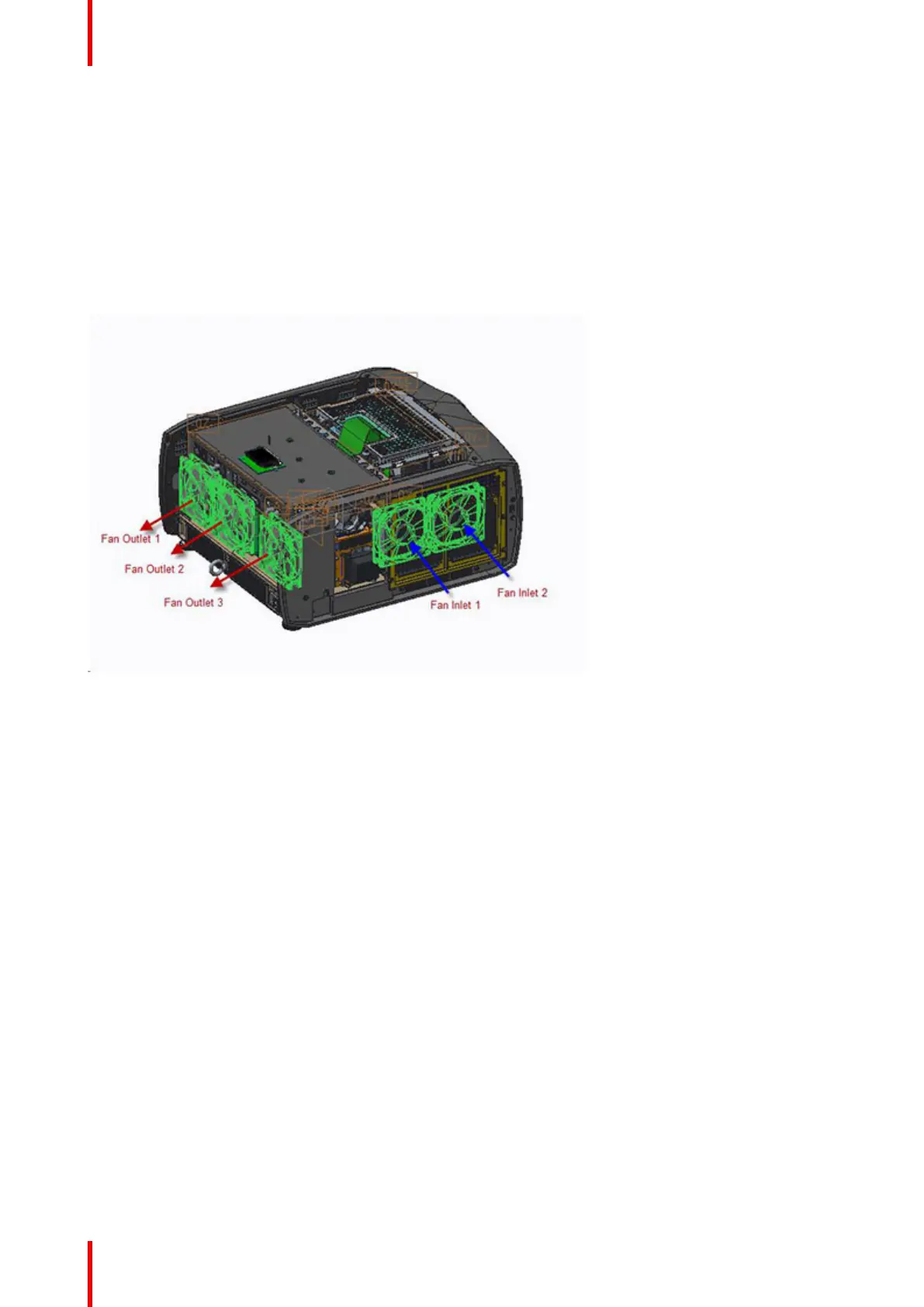

8.3.7 Fan and pump. Numbering and location.
Image 8-4
Thermal management system
