723–0018 /02 F70 121

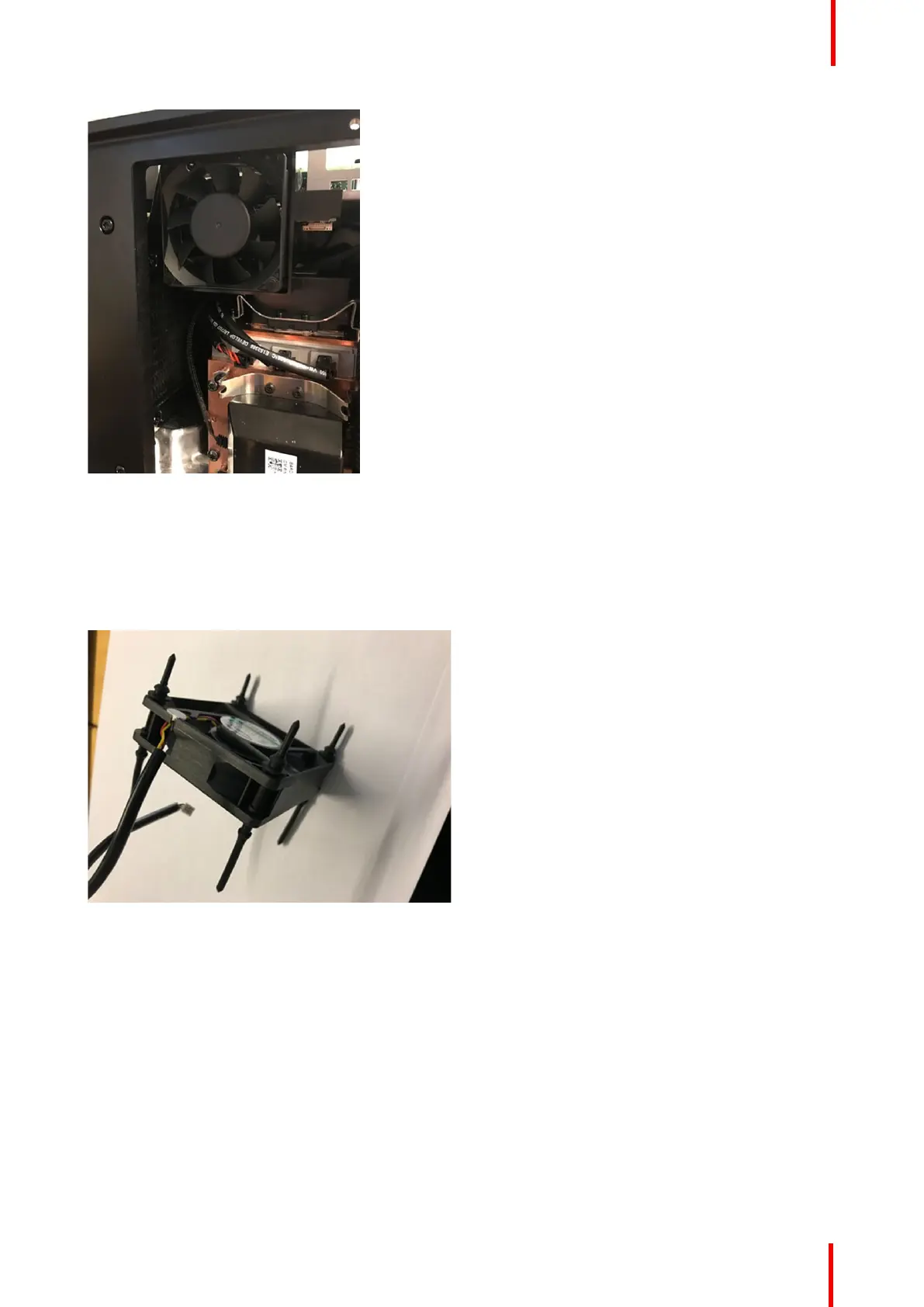

Image 18-15
Assemble
1. 1. Thread new rubber straps through mounting hole in replacement fan.
2. 2. Cut off excess rubber strap from fan and push fan in place.
- Fan connects to PCB main Conn J23
Image 18-16
18.2.7 Fan Optics
Access to fan provides that top, front and left side covers have been removed.
1. Remove 2 screws (TX20 M4x10 W/washer) releasing Fan assembly from base plate.
2. Remove USB/Trigger board from left cover in order to access and remove fan assembly .
3. Separate fan from holder.
4. Remove rubber from fan.
Assemble in reverse order, rubber shall be reused.
Fan connects to PCB thermal hub Conn. J22
