Barco F70 - System thermal diagram

723–0018 /02 F7052
8.6 System thermal diagram
Figures in the nominal settings and lifetime settings charts may vary due to different operation conditions,
including mounting position, saturation of filters (if optional dust filter is installed and filter saturation sensor
activates) etc.

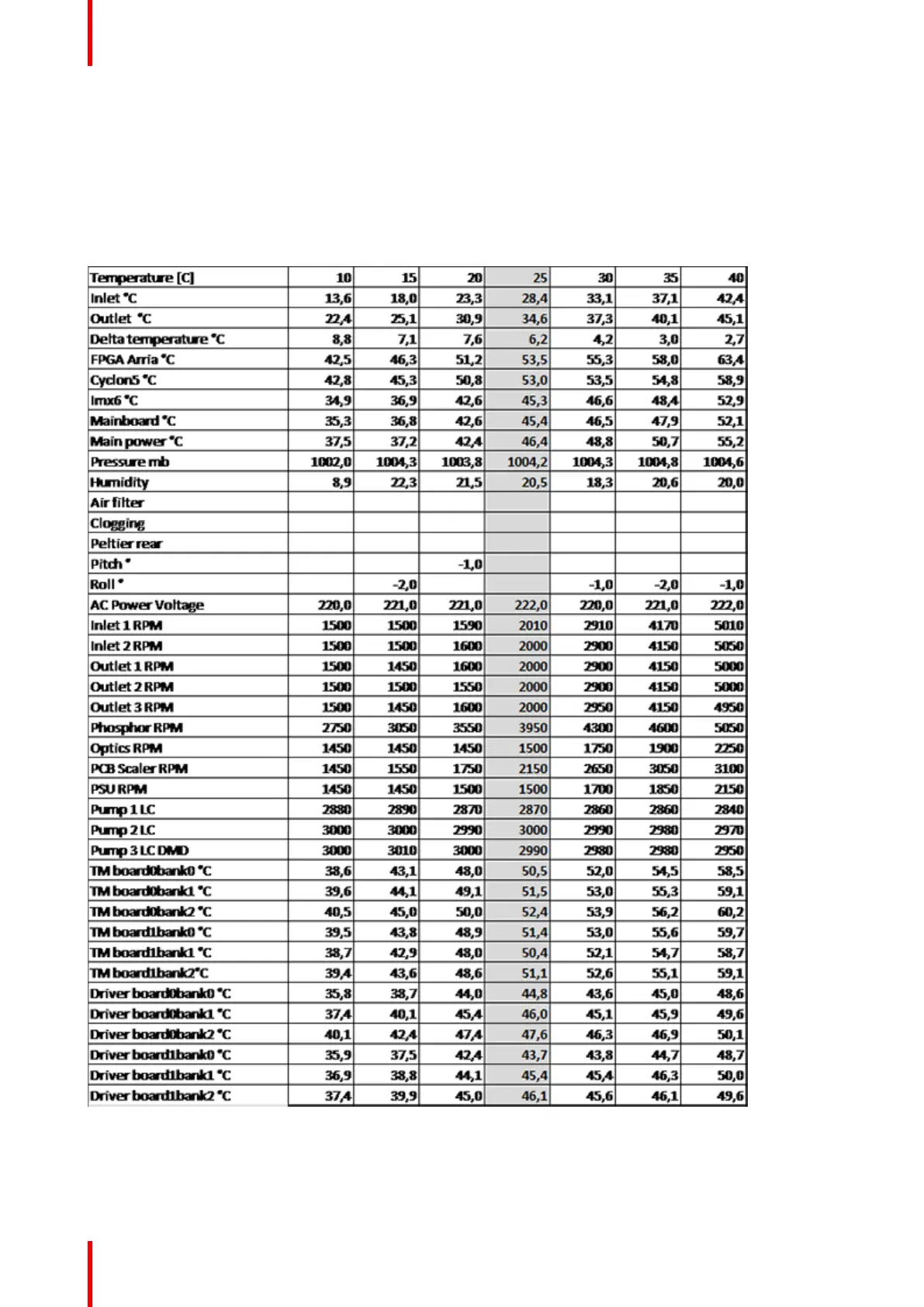

Nominal Settings
Image 8-6
Thermal management system
