Barco F70 User Manual

723–0018 /02 F70 81

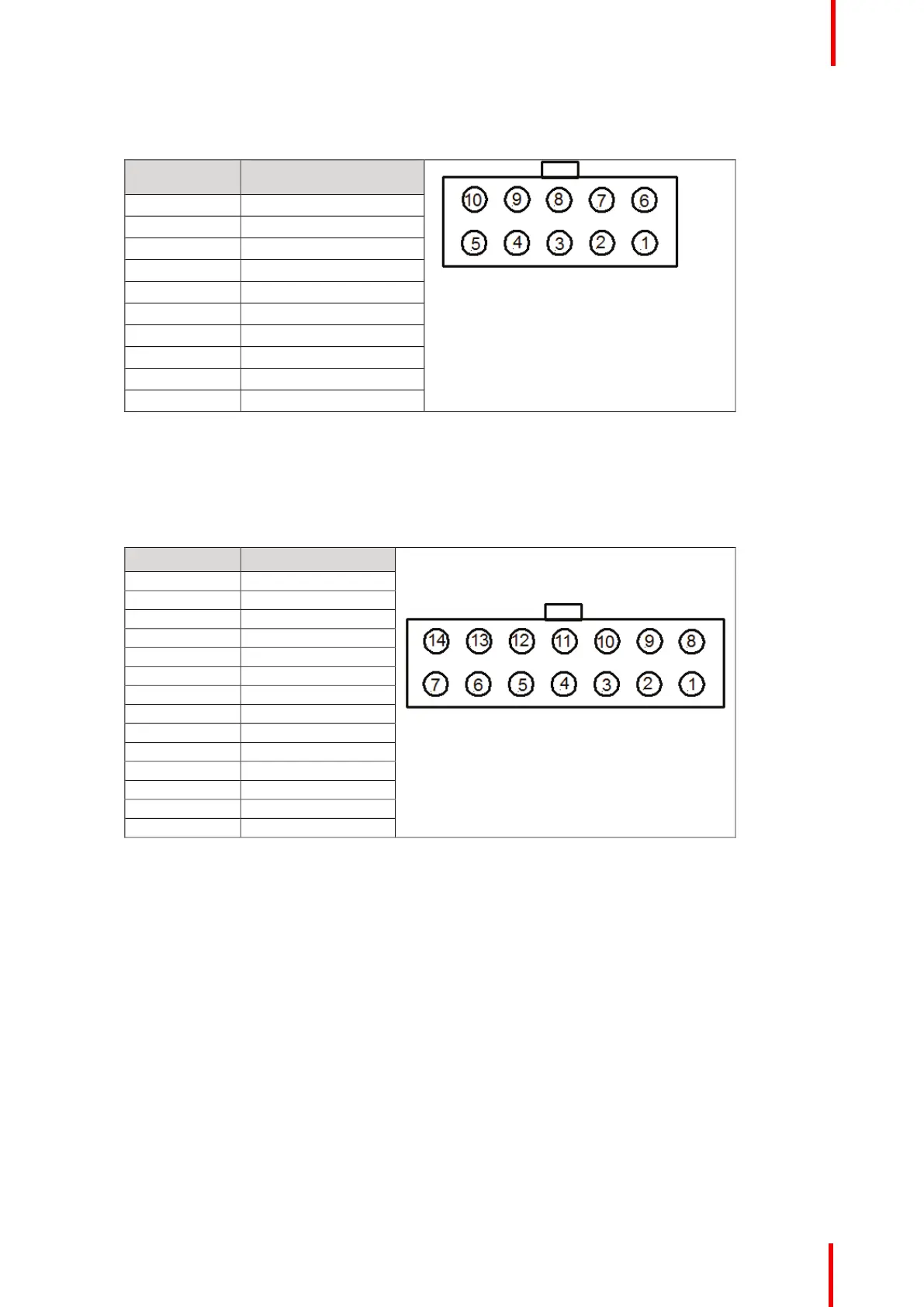

15.4 Mainboard connector J4
PIN number
Output name
MOLEX MICROFIT – HEADER SEEN FROM ABOVE
Pin 1
+12V-1
Pin 2
+12V-1
Pin 3
12V-1_GND
Pin 4
+11,5V_STB
Pin 5
SGND (Shield GND)
Pin 6
+12V-1
Pin 7
12V-1_GND
Pin 8
12V-1_GND
Pin 9
11,5V_STB_GND
Pin 10
SGND (Shield GND)
Image 15-3
15.5 Thermal Hub Connector J3:
PIN number
Output name
Molex Microfit
SEEN FROM ABOVE
Pin 1
+12V-2
Pin 2
+12V-2
Pin 3
12V-2_GND
Pin 4
+12V-3
Pin 5
+12V-3
Pin 6
12V-3_GND
Pin 7
SGND (Shield GND)
Pin8
+12V-2
Pin9
12V-2_GND
Pin10
12V-2_GND
Pin11
+12V-3
Pin12
12V-3_GND
Pin13
12V-3_GND
Pin14
SGND (Shield GND)
Image 15-4
Power Supply Unit (PSU)
