Barco F70 - AC Input; Output specification; Connectors

723–0018 /02 F7080
15.1 AC Input
Label Marking:
100-240V, 50-60Hz, 12A
15.2 Output specification
The output connectors contain output voltages from 5 different internal converters.
Below is the specified output voltage and output current capacity of each converter.
Connector output Output name Voltage level Capacity
Mainboard 11,5V_STB 11,55V +/-2,6% 0,4A
Mainboard 12V_1 12,37V +/- 3,48% 11A
thermal hub 12V_2 12,37V +/- 3,48% 11A
Thermal hub 12V_3 12,37V +/- 3,48% 11A
Laser driver Laser driver supply 380v +/- 3,42% 1,6A

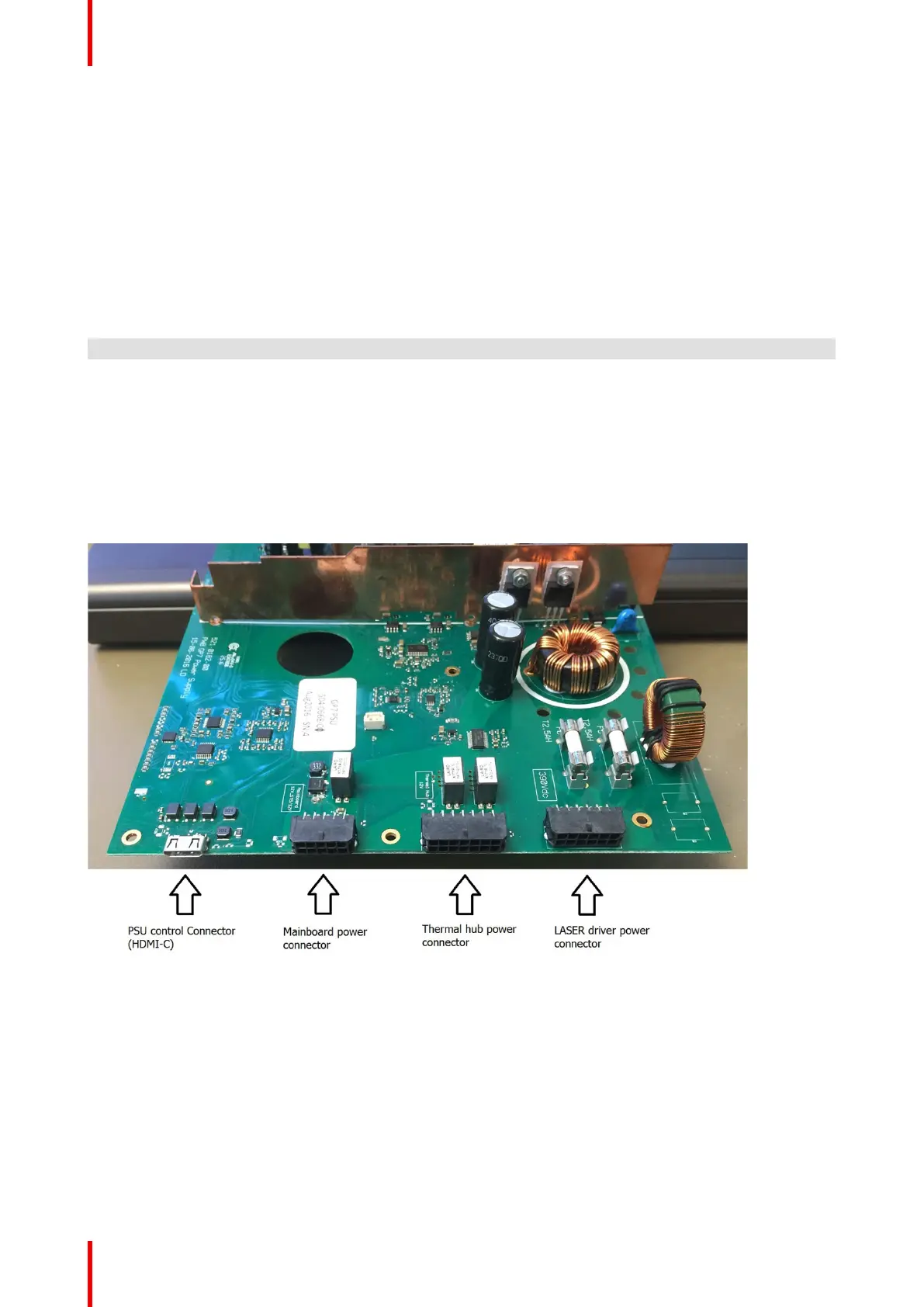

15.3 Connectors
Image 15-2
Power Supply Unit (PSU)
