Heat Paste: 302-0086-00 Shin ETSU 7762

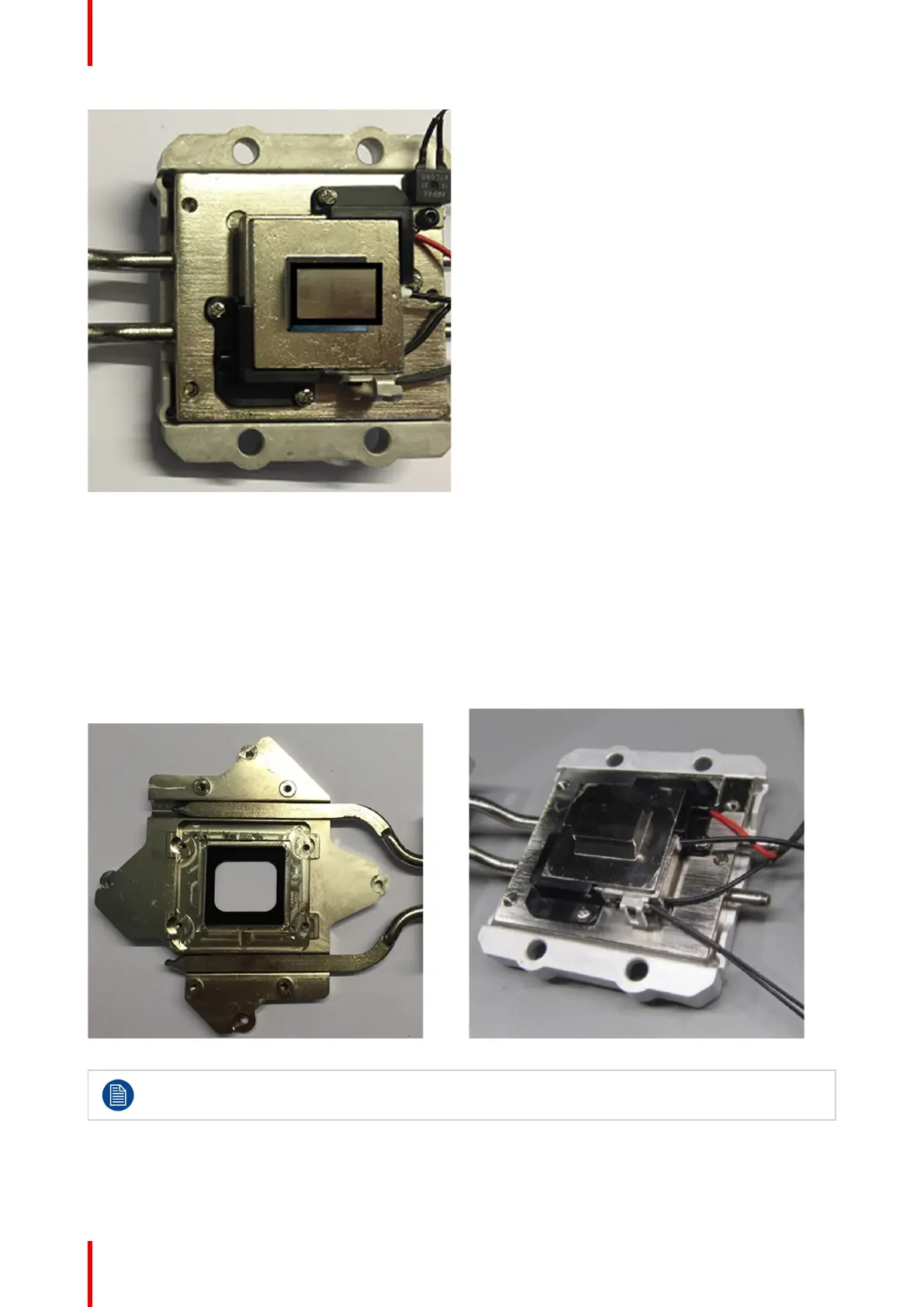

19.7 GP7 Heatsink DMD Front & Rear Assemblies
The DMD Peltier cooling system is split in two assemblies each available for service:
- GP7Heatsink DMD FRONT ASSY
- GP7 Heatsink DMD REAR ASSY
Image 19-15 Image 19-16
Unlike the GP6 platform, the GP7 has only the single set cooling for DMD. One Peltier element
embedded in the heatsink directly behind the DMD.
