Barco F70 - 390 Blue Loop Lens 3; 390 Blue Loop Lens 4; Diffusor blue loop

723–0018 /02 F70 149

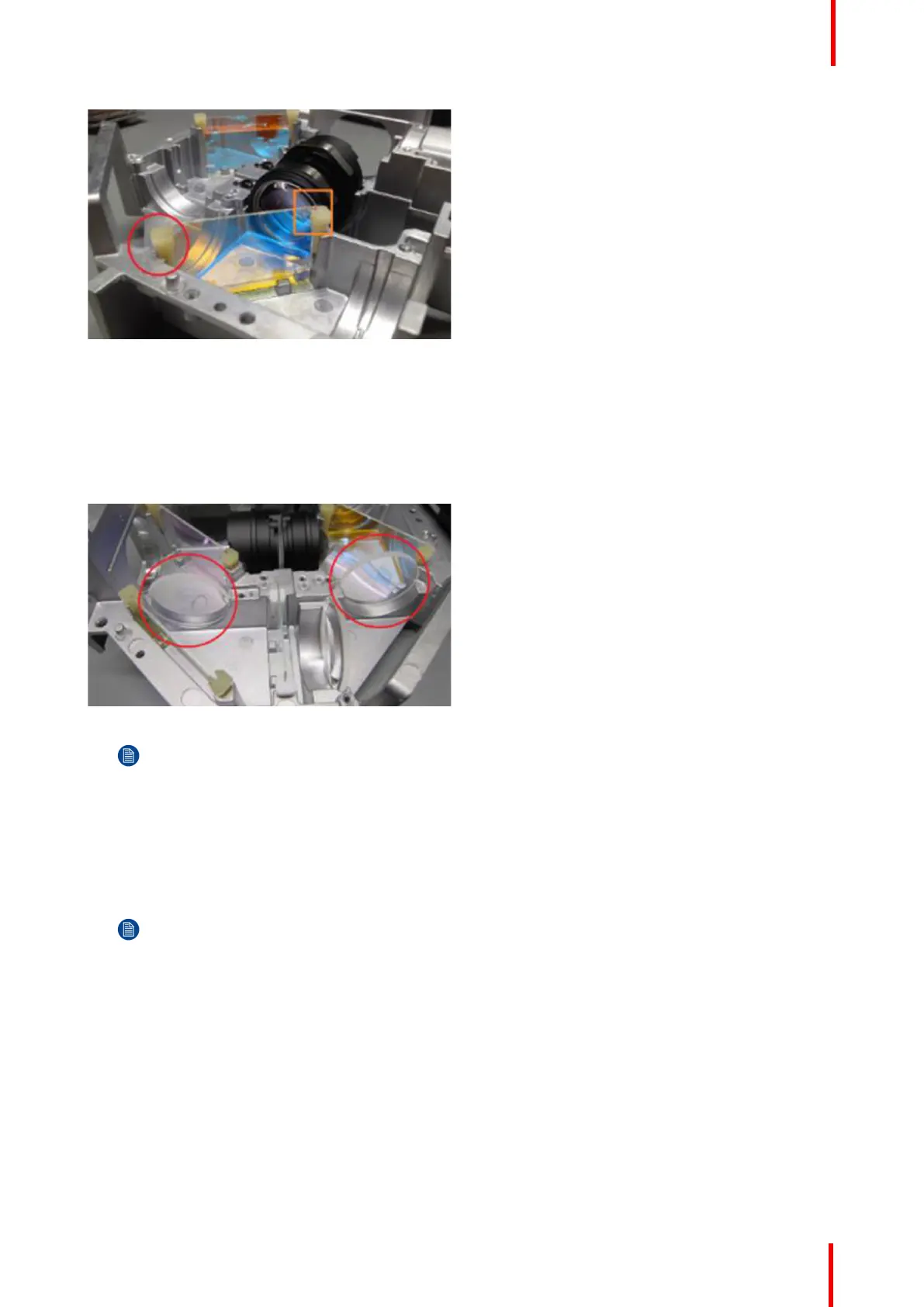

Image 20-7
20.3.6 390 Blue Loop Lens 3
1. 1. Remove screw (Tx08 M2.5x6)
2. 2. Remove the clip holding lens in place.
3. 3. Lift out the lens.
Image 20-8
Note: The Blue Loop lenses are NOT directional.
20.3.7 390 Blue Loop Lens 4
1. Remove screw (Tx08 M2.5x6)
2. Remove the clip holding lens in place.
3. Lift out the lens.
Note: The Blue Loop lens 4 is NOT directional
Image 20-9
20.3.8 Diffusor blue loop
1. Use the wedges to gently pull out the diffusor.
TI loop
