723–0018 /02 F70162

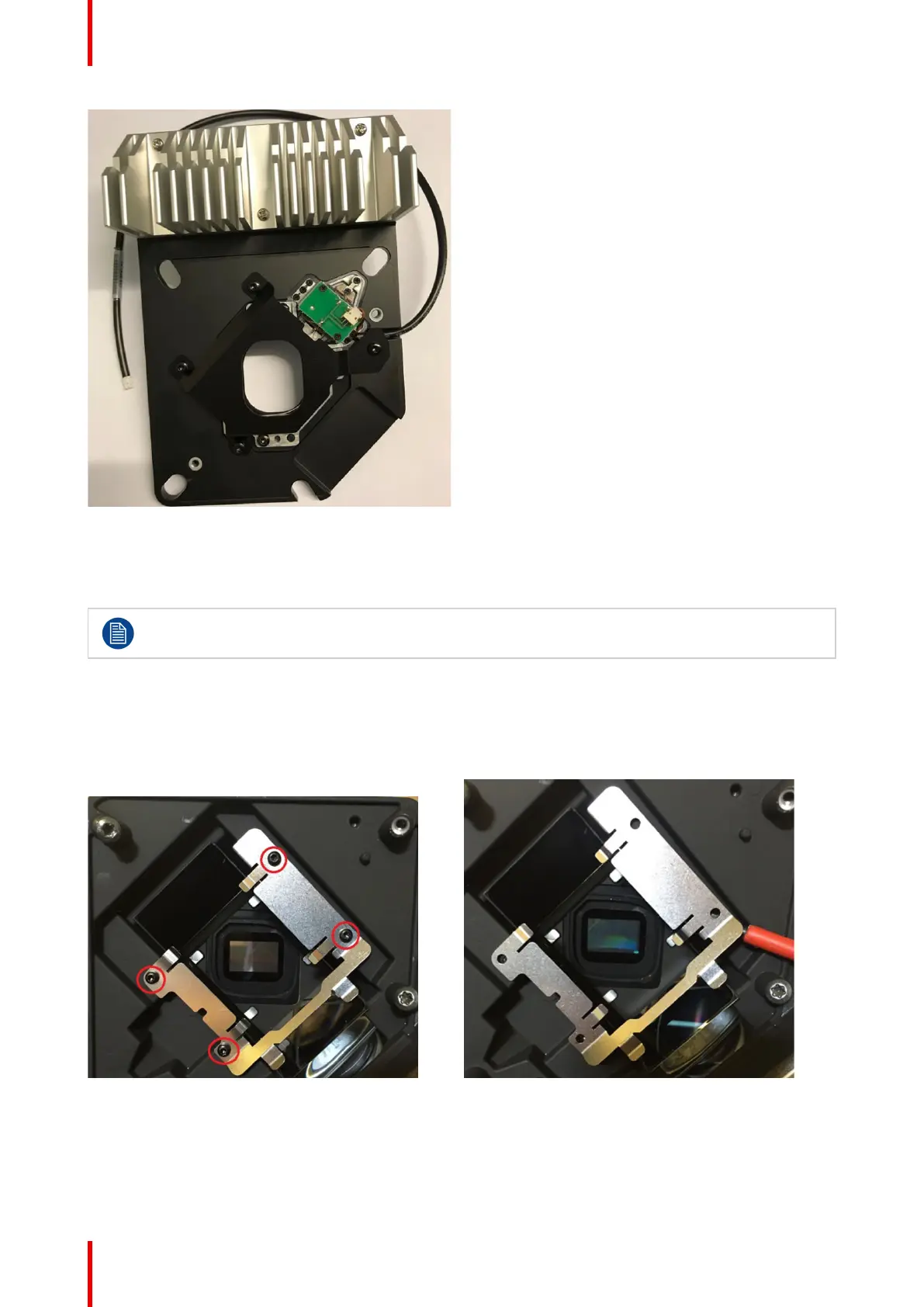

Image 22-9

22.5 TIR Prism

Use cotton gloves or finger nuts whenever handling the TIR prism

22.5.1 Remove the TIR prism

1. Remove 4 screws (TX8 M2,5x6)

2. Carefully pull out the Prism Clip Prism using a flat screwdriver.

Image 22-10 Image 22-11

3. Lift the prism out carefully.

Lens shift assembly

Default Chapter3
