723–0018 /02 F70 161

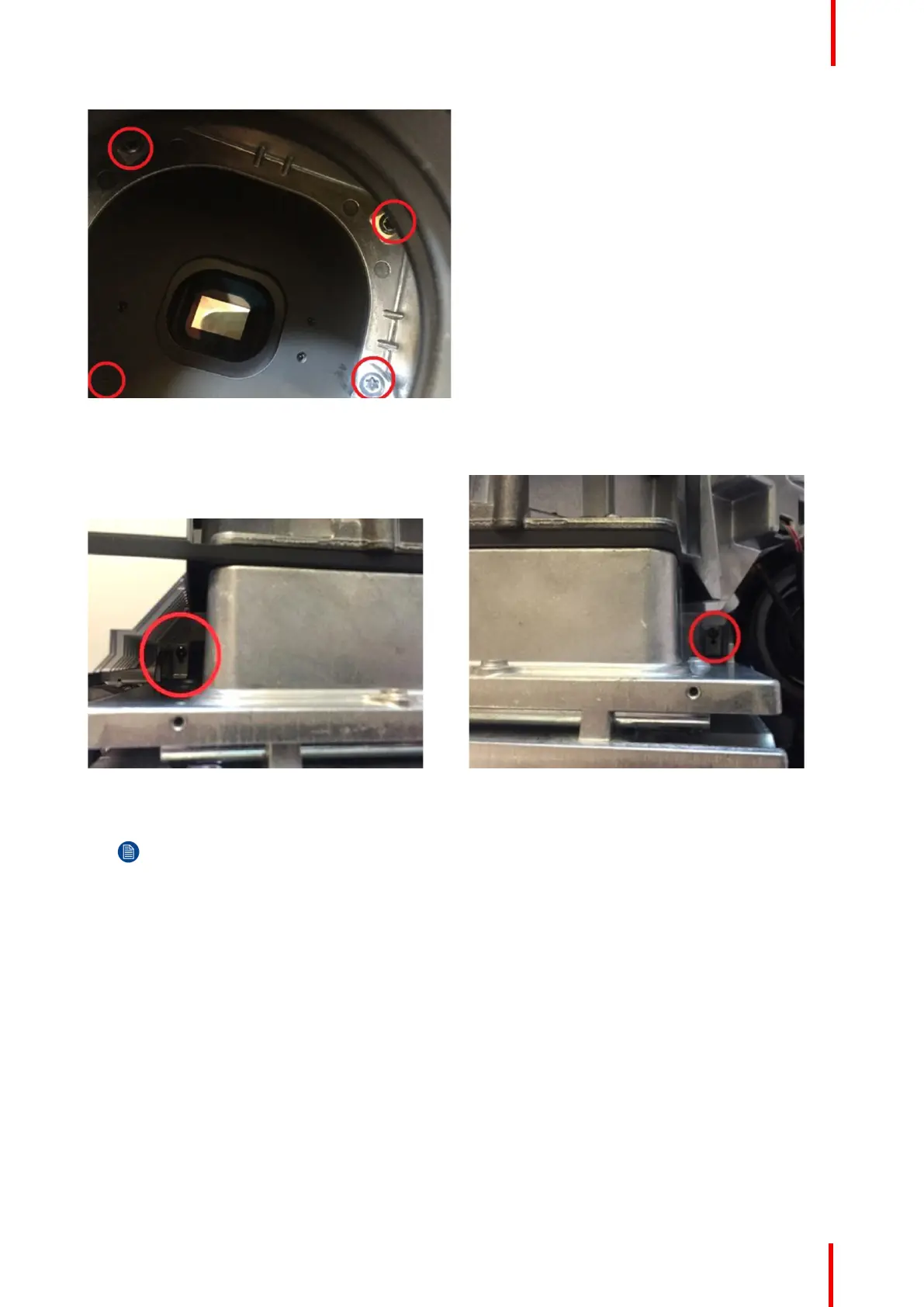

Image 22-6
3. Remove 2 screws (TX20 M4x12) securing the assembly to the base plate and remove the complete assy.
Image 22-7 Image 22-8
4. With the lens shift assembly removed, the GP6/7 Dumpl. XPS Actuator assy is loose and can be removed.
Note: See “XPS actuator”, page 75 for details tuning new actuator if it has been replaced.
Lens shift assembly
