2. 2. Remove 4 screws (Tx8 M2.5x6) releasing the clip and lens.
3. 3. Assemble in reverse order.

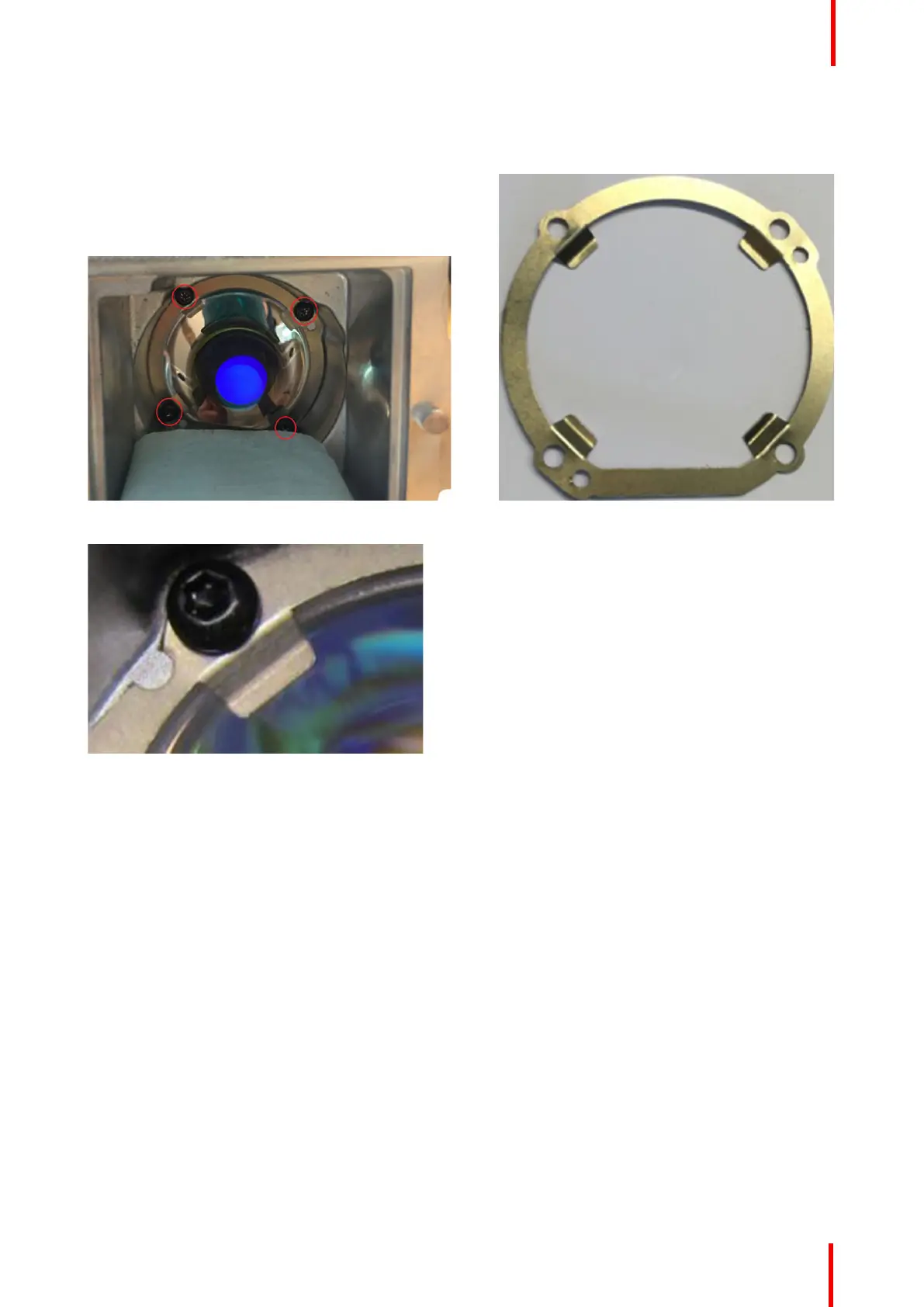

Image 20-12 Image 20-13
Image 20-14
Converging Lens (Exit)
1. Release two screws (TX20 m50X45) holding the Dow Tail clamps. This releases the TI loop form the
Illumination Engine Front.
2. Release 4 screws (Tx8 M2.5x6) holding the clip and lens.
TI loop
