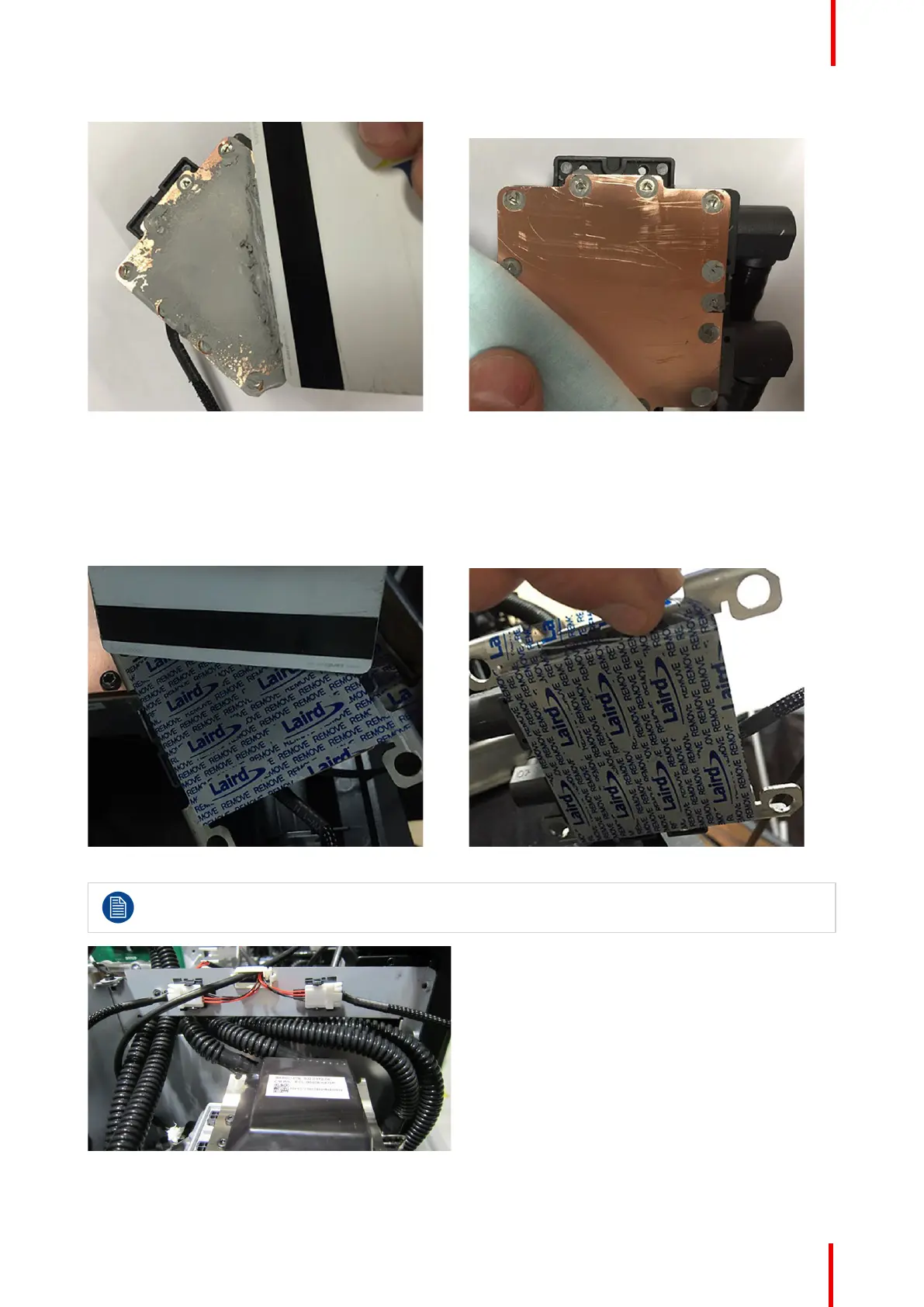

Image 18-28 Image 18-29
3. 3. Add new gasket to the copper surfaces of the cooling pump, use a plastic card to make the new gasket stick
properly.
4. 4. Remove the thin plastic film from new gaskets and mount cooling pump to the Laser cluster.
5. 5. Tighten screws in diagonal sequence.
Image 18-30 Image 18-31
Handle liquid cooling tubes with care. Use the original routing of the tubes.
Image 18-32
