723–0018 /02 F70166

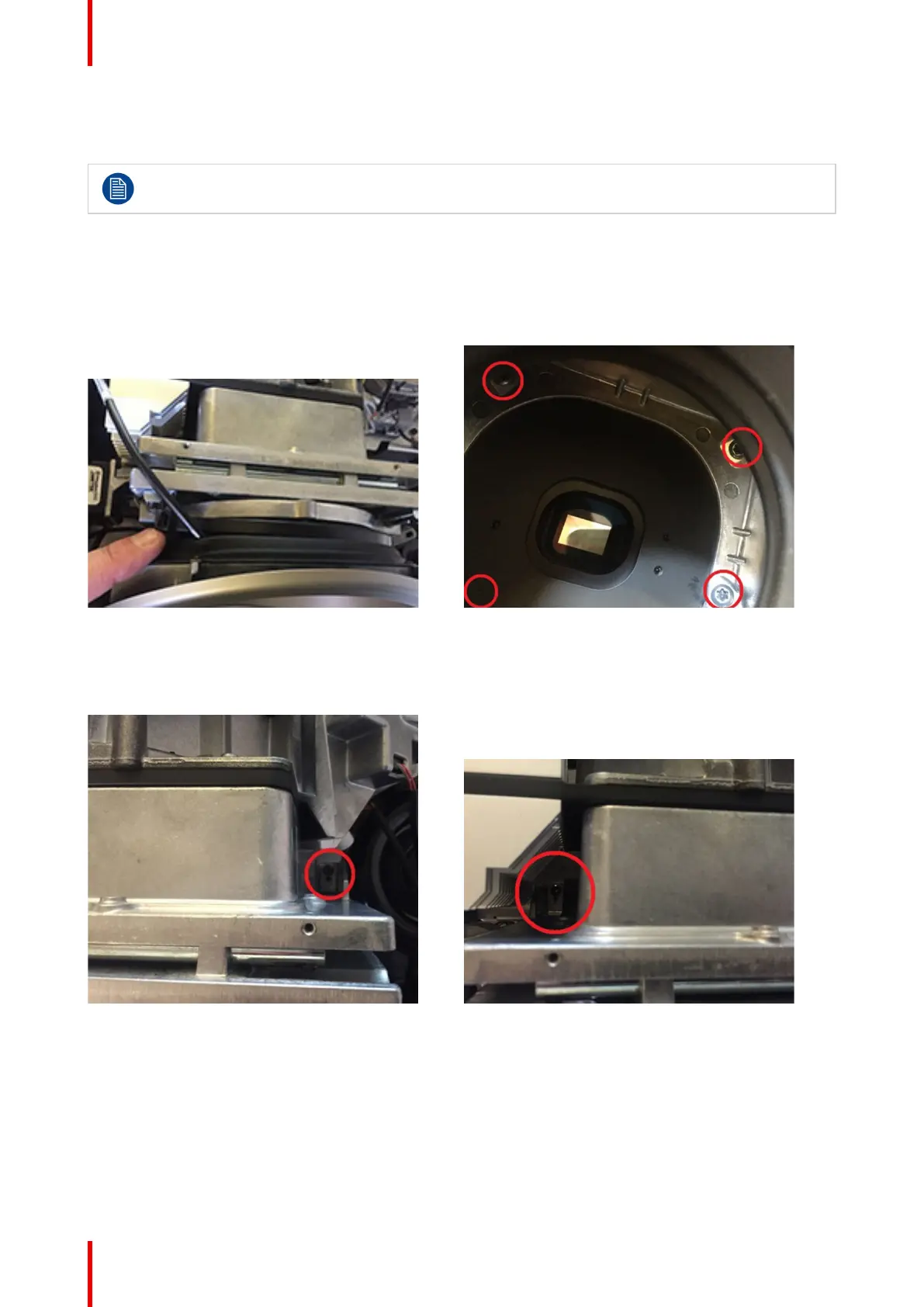

23.1 Prism Housing
In order to access prism housing, Engine Core including lens shift assembly and Dump light Assy
must be removed first.
1. Push in the two straps that secure the bellow outer to lens shift assy.
2. Gently remove complete bellow and lens ring; the lens shift cable is routed via the bellow and must be
disconnected.
3. Remove 4 screws (TX20 M4x12) available from inside engine
Image 23-1 Image 23-2
4. Remove 2 screws (TX20 M4x12) securing the assembly to the base plate and remove the complete assy.
5. Once the engine core with lens shift is removed, the dumplight bracket is loose and can be removed.
Image 23-3 Image 23-4
Prism Housing
