Chapter 10: Maintenance 179

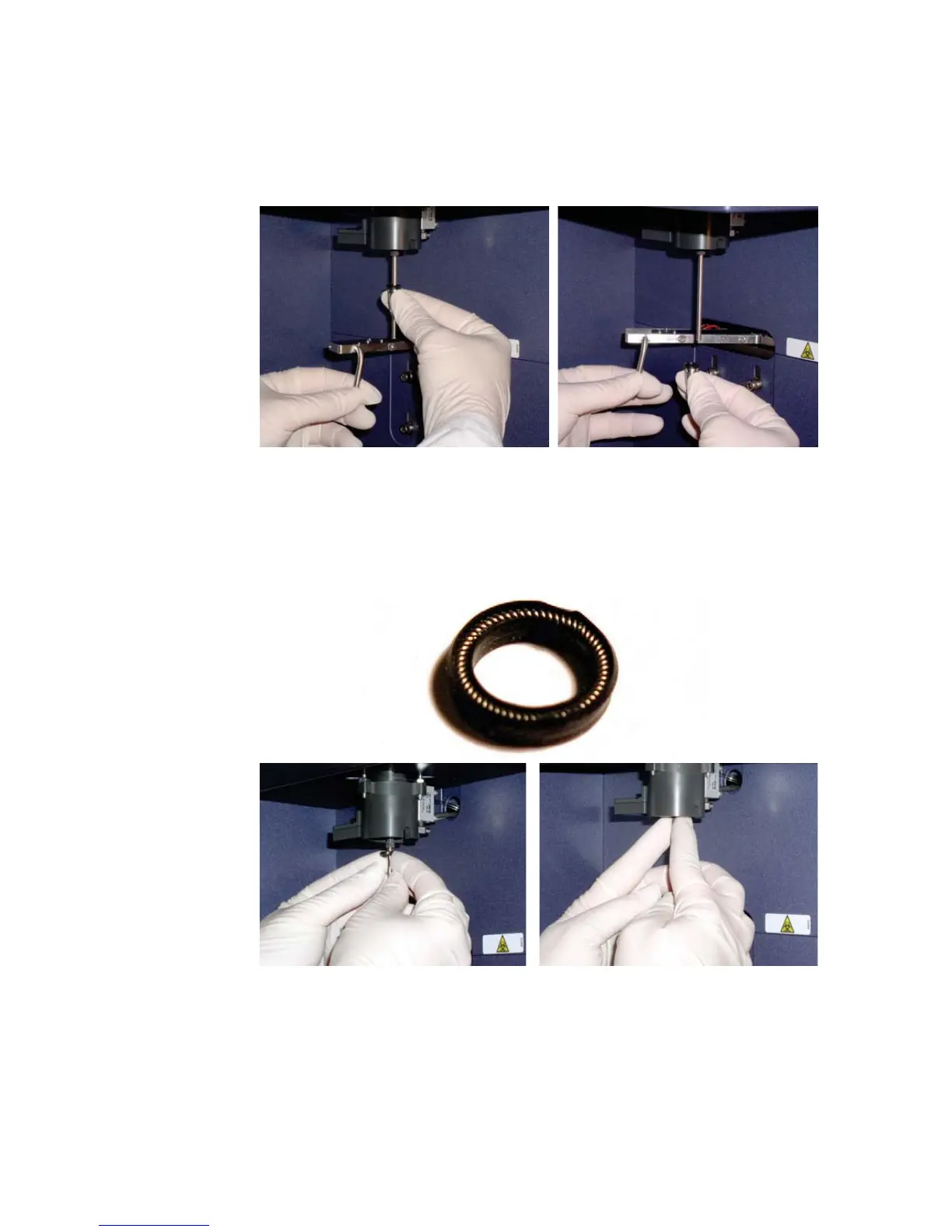

Figure 10-8 Removing the Bal seal and retainer from the SIT
8 Hold the new Bal seal spring-side up (see figure), and slide it up the SIT.
Use both hands to gently push it into its seated position.
Tip If the Bal seal is not quite in its seated position, replacing the retainer
will seat it correctly.
Bal seal,
spring side up
To Next Page
