Installation Operating instructions CS 300
4 - 8 6.110.98.5.01.40 en
4
Take note:
–
Cables must not touch movable parts of the scale.
– Prevent accumulation of dirt between the mounting frame and load
platter. (Weight falsification) Make sure that the scale has a free
play.
Mounting scale

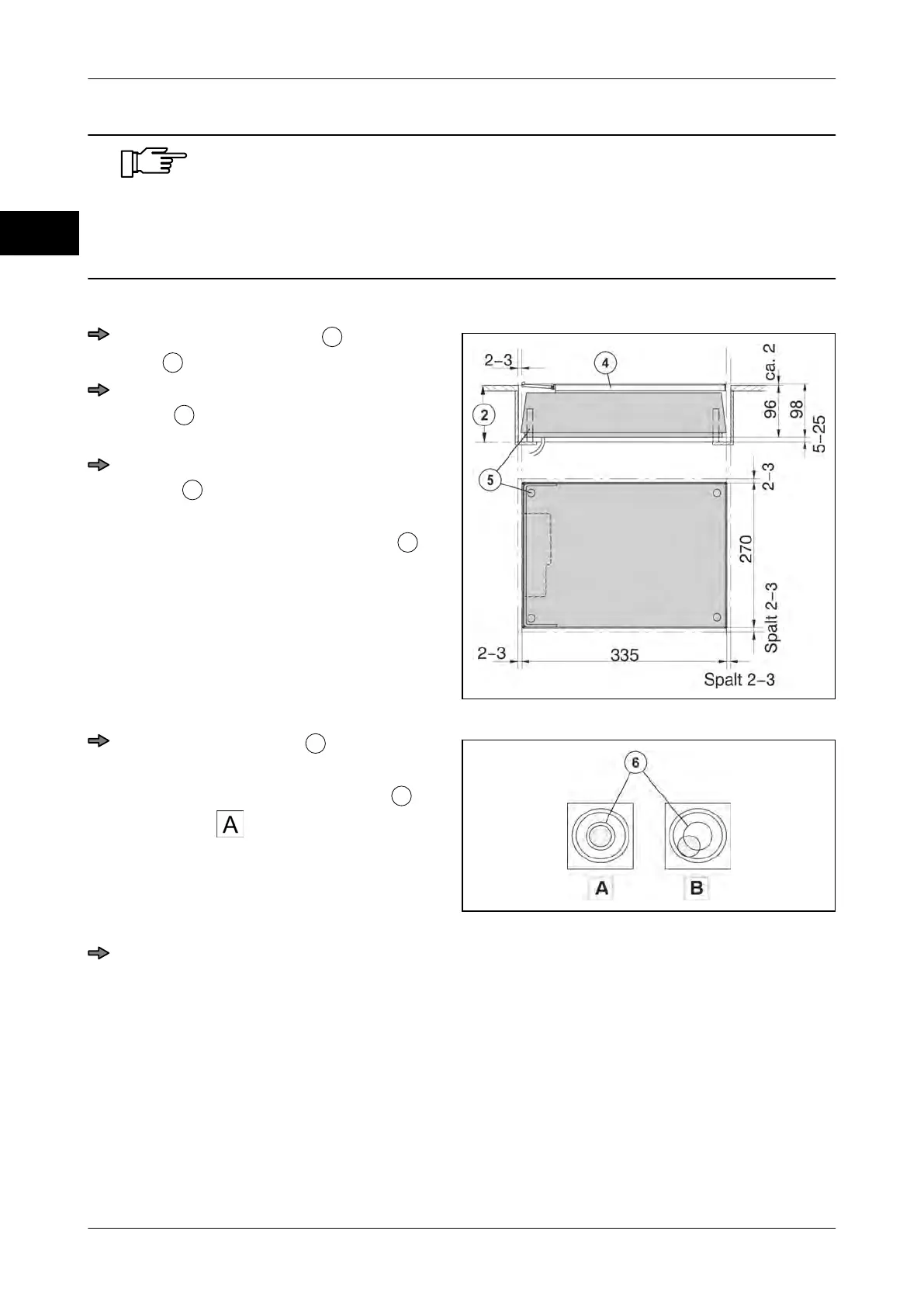

Fig. 15: Installation dimensions
Remove the load platter
. The spirit
level
is under the load platter.
Measure the depth of the mounting
space
at the support points of the ad-
justing screws.
Adjust the scale by means of adjusting
screws
to the height of the upper
counter edge plus 1-2 mm.
When the load platter is removed
, the
screws can be adjusted from the top us-
ing a hexagon spanner SW4.
Fig. 16: Spirit level
Turn adjusting screws
until the scale
is in a horizontal position.
If the air bubble in the spirit level
is in
the center , as shown in the picture,
the scale is in horizontal position.
Reattach the load platter and check if the scale is installed correctly.
The scale height must be 1-2 mm higher than the upper counter edge.
