Bizerba CS 300 - Installation of Scanner into POS Counter

Installation Operating instructions CS 300
4 - 22 6.110.98.5.01.40 en
4

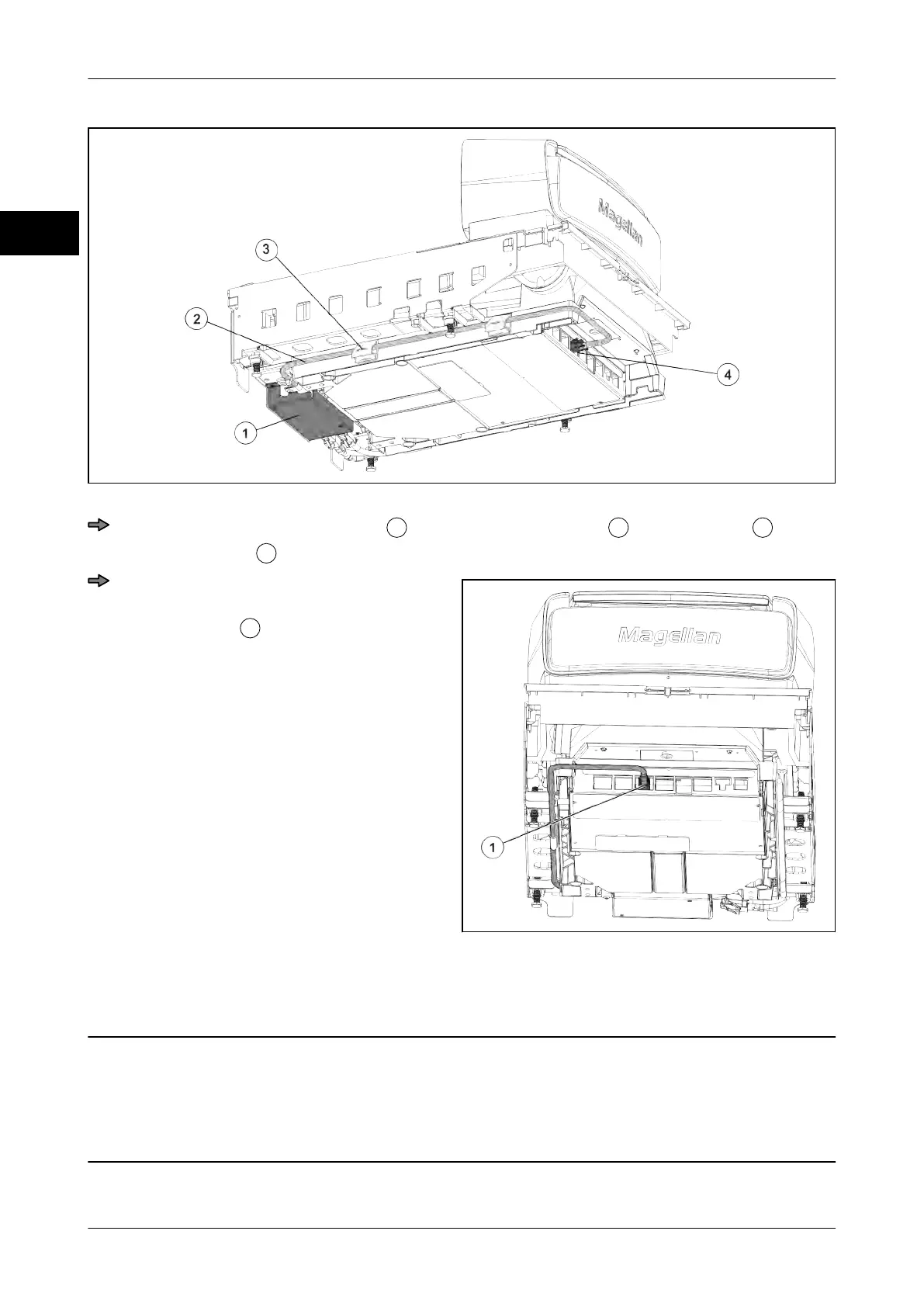

Fig. 37: Connecting cable leading to scanner MA 94
Properly route connecting cable
2
of the scale electronics
1
in the holders
3
on
back of scanner
4
.
Fig. 38: Scale Host Port
Route connecting cable on back of
scanner and insert it into the "SCALE
HOST PORT"
1
.
Installation of scanner into POS counter
CAUTION Do not lift scanner by weighing system!
The weighing system will be damaged.
–
Do not lift the scanner by the load carriers or by the weighing sys-
tem!
