Connect
Lay and connect cables.
Connectors

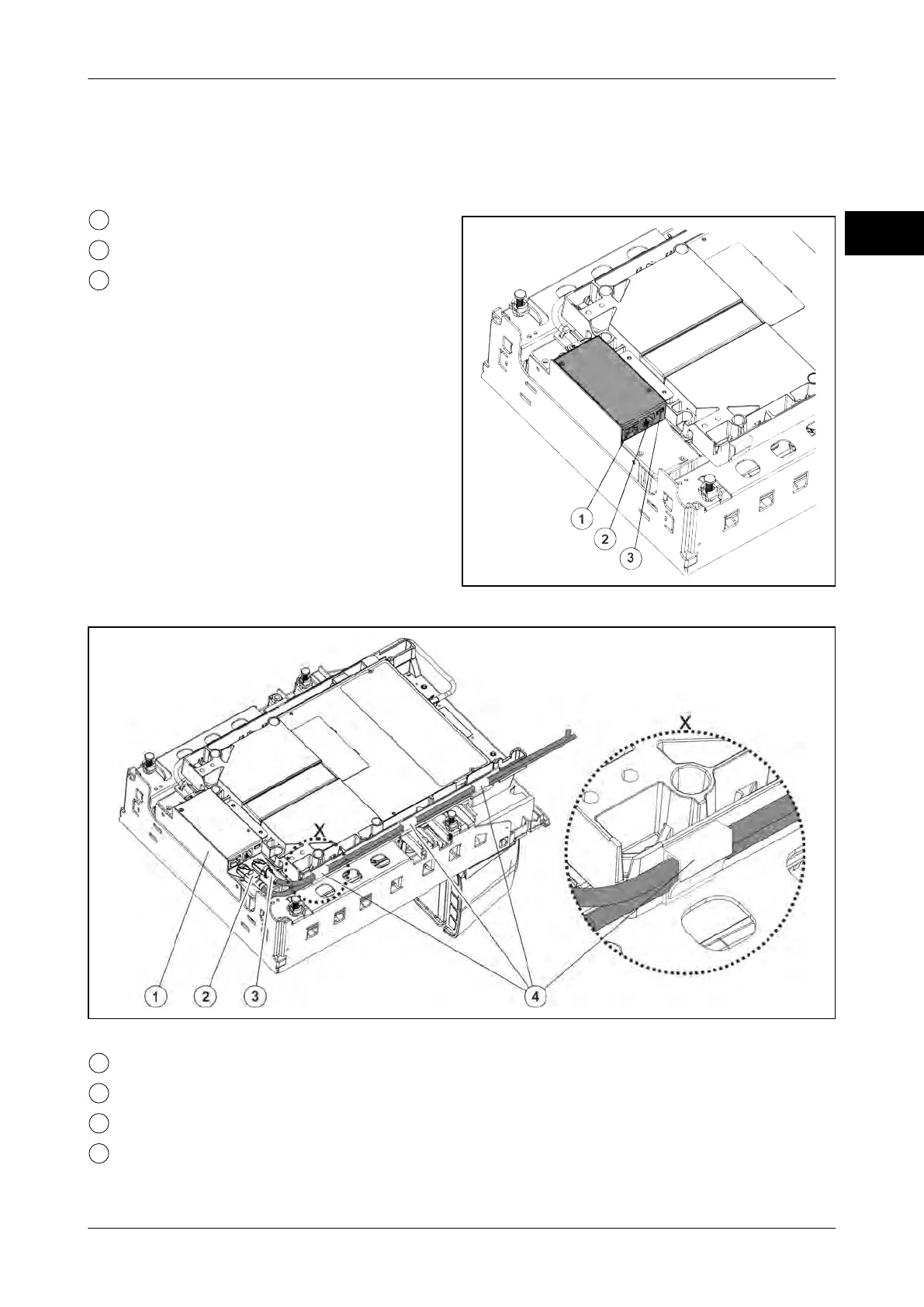

Fig. 43: Connectors MA 94
1
Display connection
2
POS connection
3
USB connection
A cable with USB A connector for cash
drawer and 5-pin mini USB B connector
for scale is required. A software must be
installed on the POS system which cre-
ates a virtual COM interface.
Fig. 44: Connect cable MA 94
1
Weighing system
2
Cable to display
3
Cable to cash register
4
Cable holder
