Bizerba CS 300 - Installation of Scale CS 300 te in the POS Counter

Operating instructions CS 300 Installation
6.110.98.5.01.40 en 4 - 7
4
Relief cable tension
The strain relief and screw are contained in the accessory kit.
Place all cables under relief strain
5
.
Screw the relief strain directly under the scale.
The cables are now strain-relieved.
4.5.2 CS 300 TE
The CS 300 TE (built-in tabletop model) is intended for installation in POS counter.
Scale dimensions
Length: 335 mm
Width: 270 mm
Construction
height:
96 mm

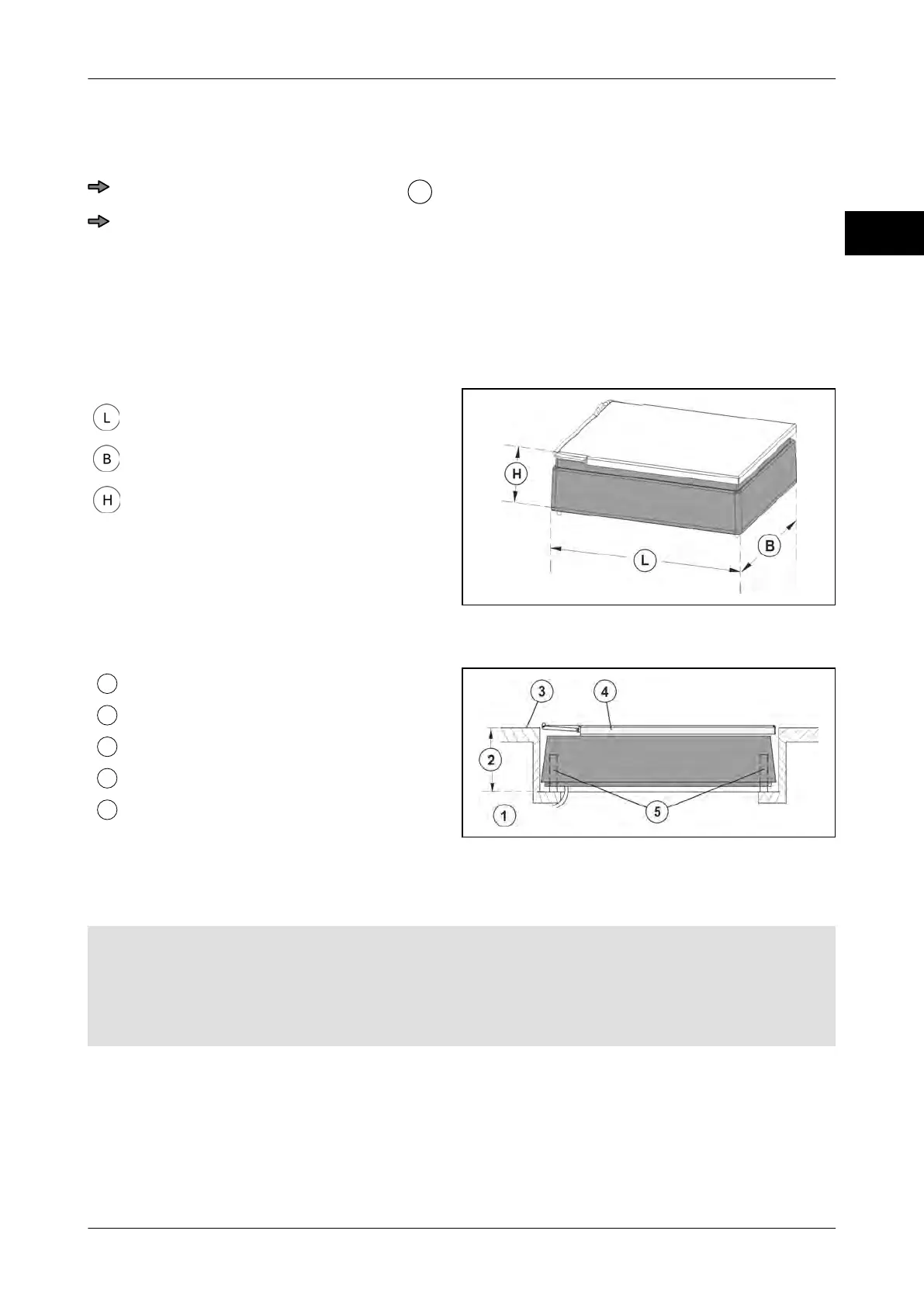

Fig. 13: CS 300 TE dimensions
Scale built-in
1
Mounting frame
2
Depth - mounting area
3
Counter upper edge
4
Load platter
5
Adjusting screws
Fig. 14: Scale built-in
Installation of scale CS 300 TE in the POS counter
Requirement
–
The counter installation depth must be 5-25 mm higher than the construction height
( 96 mm).
– The counter cutout should be dimensioned so as to provide a uniform spacing of
2-3mm between the load platter and the table cutout on all sides.
