Operating instructions CS 300 Installation
6.110.98.5.01.40 en 4 - 27
4
Pictorial and graphic examples in the installation and assembly instructions may differ from
the supplied version.

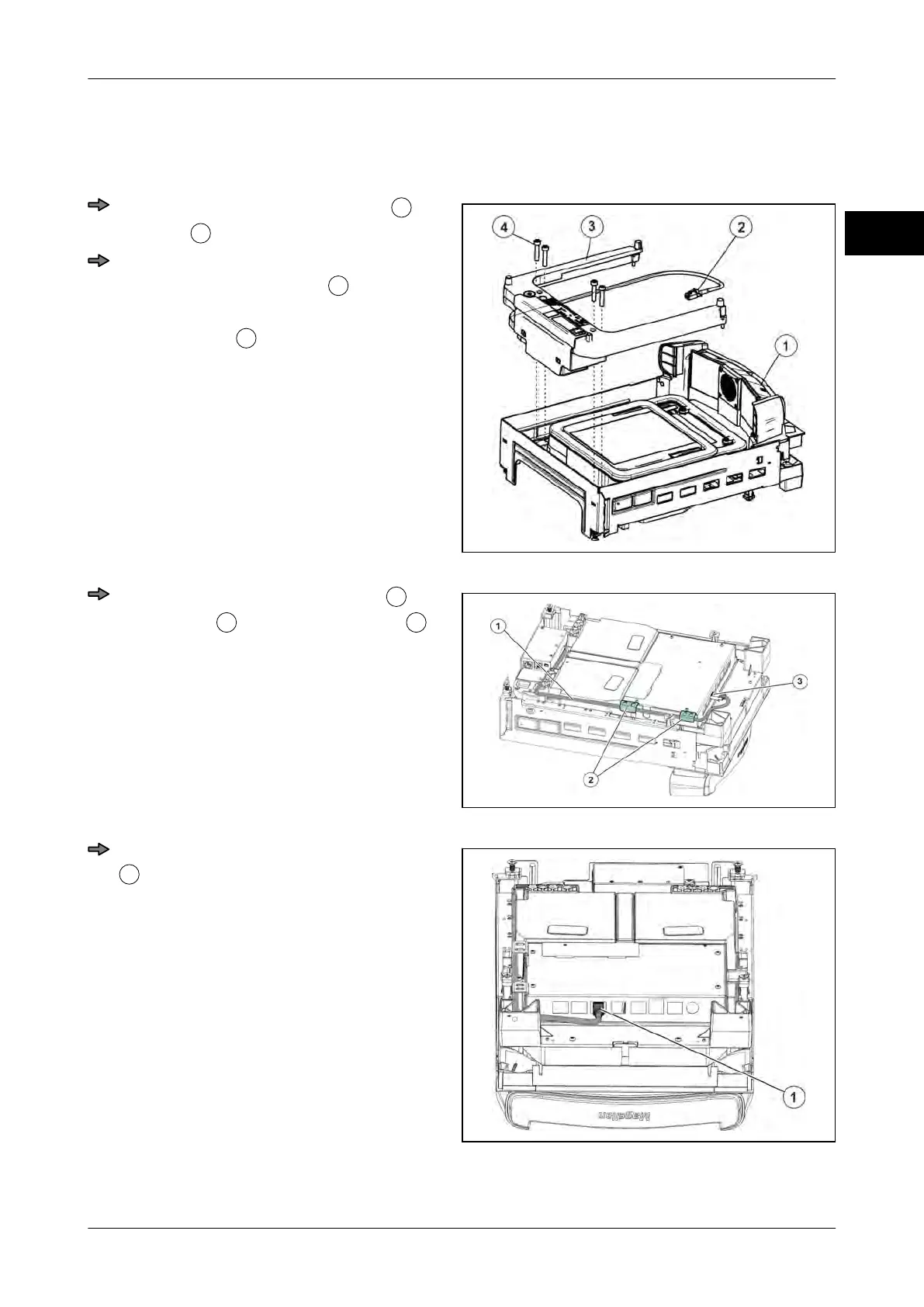

Installation into scanner
Fig. 46: Installation
Carefully insert weighing system
3
into
scanner
1
.
Screw weighing system to the scanner
using 4 fastening screws
4
.
Do not clamp the connecting cable to-
ward scanner
2
.
Fig. 47: Scanner cable
Properly route connecting cable
1
in
the holders
2
on back of scanner
3
.
Fig. 48: SCALE HOST PORT
Plug cable into "SCALE HOST PORT"
1
on the scanner.
