Installation Operating instructions CS 300
4 - 36 6.110.98.5.01.40 en
4
The overload stop must only be set by trained and qualified personnel.

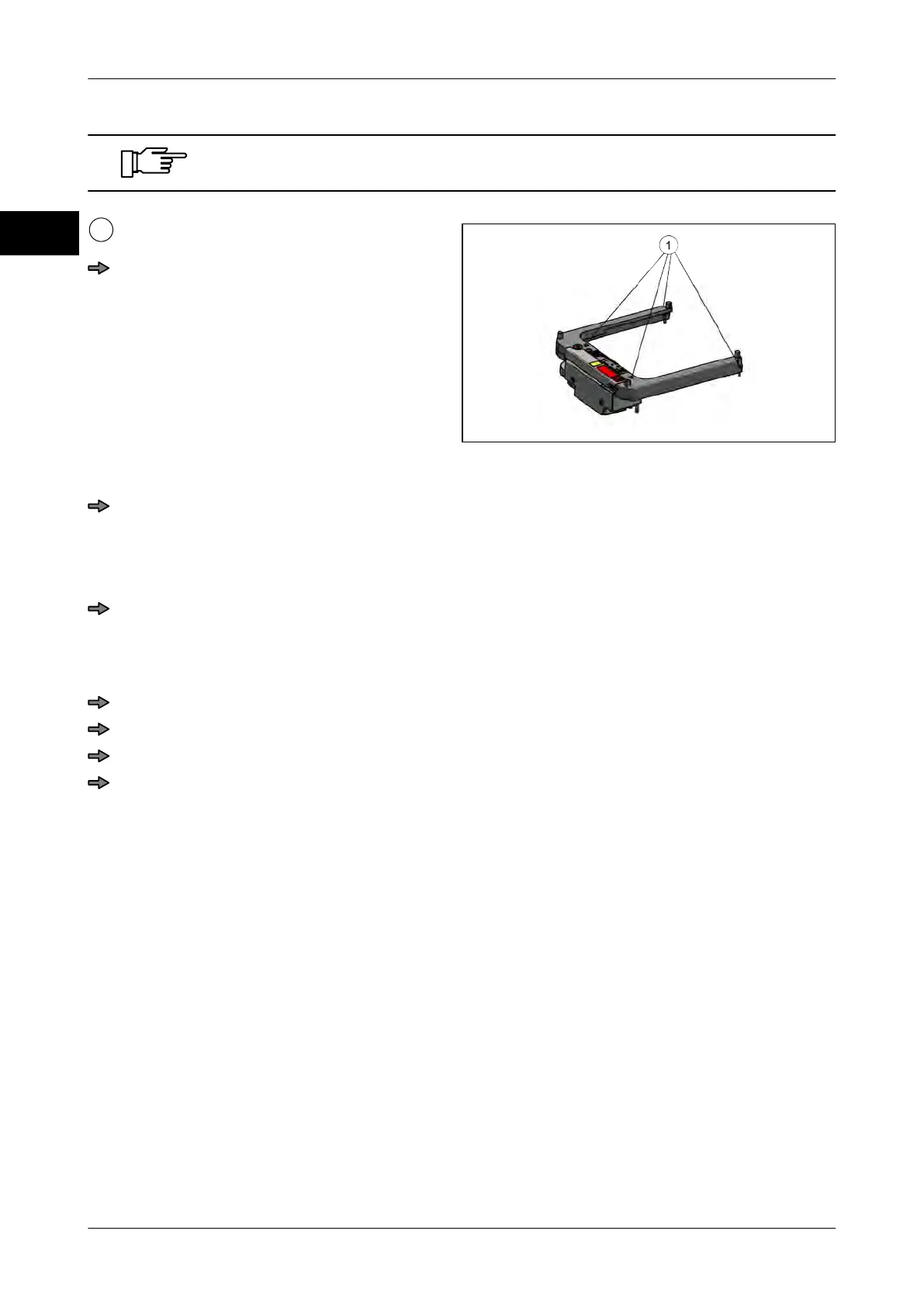

Fig. 59: Overload stops CS 300 MA 98
Overload stop screws
Carefully set the overload stops.
See page 4 - 33.
Place and align load platter.
There must be an uniform gap between the load platter and the lateral limitations of
the scanner housing.
The load platter must not get in contact with the lateral limitations of the scanner hous-
ing.
Correct deviations by taking appropriate measures, e.g. adjust weighing system.
Disassembling weighing system from scanner
The weighing system can be disassembled from the scanner without damaging the verifi-
cation seal.
Remove load platter.
Unplug all cables.
Unscrew the four fastening screws of the weighing system.
Carefully take weighing system out of the scanner.
