Operating Instructions ACU
12/16

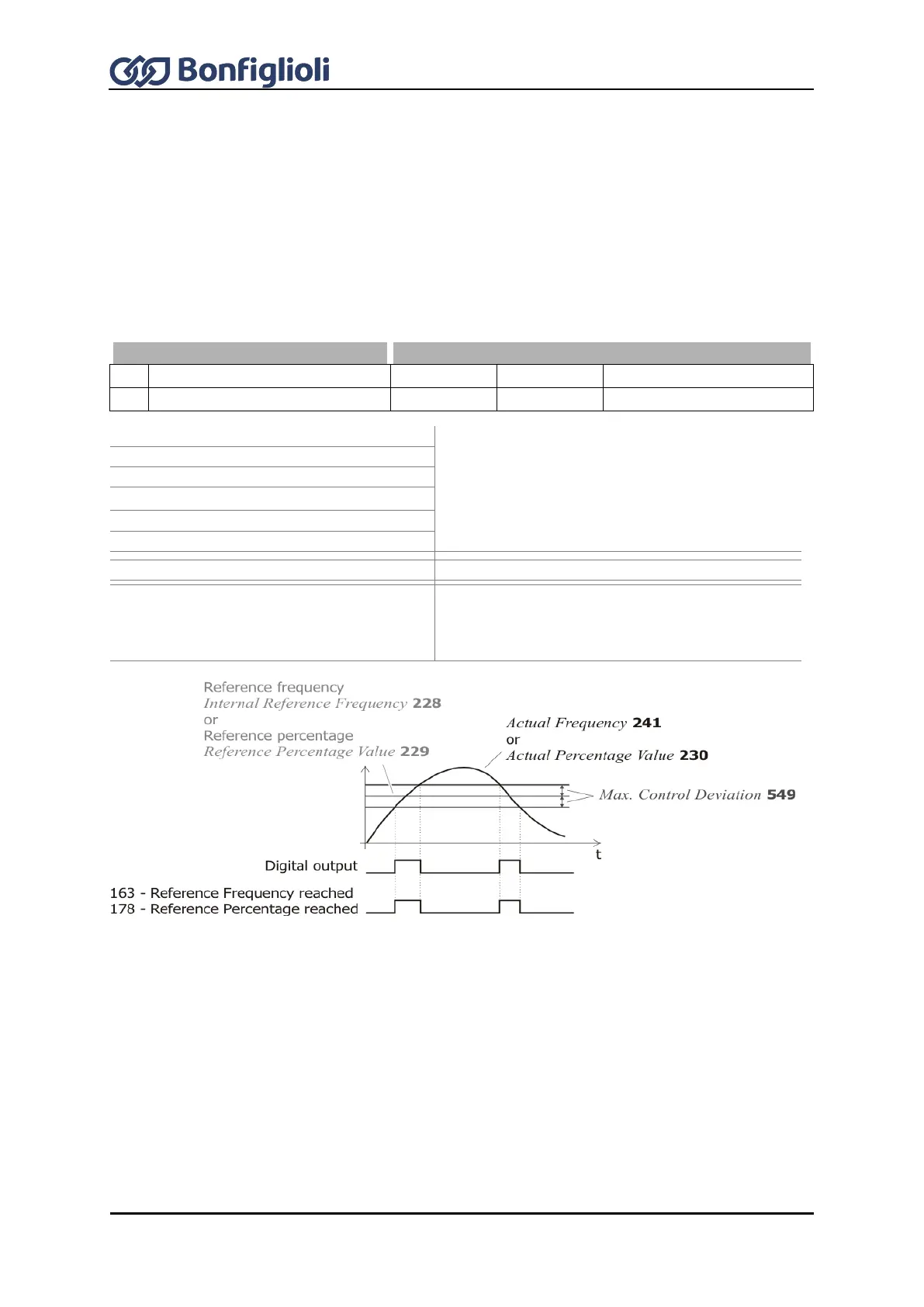

16.3.3 Reference value reached
In Operation Mode 5 - “Reference Frequency reached” for a digital output , a message will be
generated via the relevant output once the actual frequency has reached the setpoint.
In Operation Mode 6 - “Reference Percentage reached” for a digital output , a message is generated
via the corresponding output when the actual percentage has reached the reference value.
Signal source 163 - "Reference frequency reached" or 178 - "Reference percentage reached" can be
linked to the functions of the frequency inverter.
The hysteresis can be defined as a percentage of the adjustable range (Max - Min) via the
parameter Max. Control Deviation 549 .
Parameter
Setting
No.
Description
Min.
Max.
Factory setting
549
Max. Control Deviation
0.01%
20.00%
5.00%
Op. Mode Digital Output 1 530
or
5 - Reference Frequency reached
or
6 - Reference Percentage reached
(Configuration 30 = x11, x30)
Op. Mode Digital Output 2 531
or
Op. Mode Digital Output 3 532
With extension module:
Op. Mode EM-S1OUTD 533
or
Op. Mode EM-S1OUTD 534
Max. Control Deviation 549
set value [%].
For linking to functions
163 - Reference Frequency reached
or
178 - Reference Percentage reached
(Configuration 30 = x11, x30)
Example:
Hz325.2%5)Hz5.3Hz50(
[%])(
[%]f]Hz[DeviationControl.Max



549418419
549
DeviationControlMax.FrequencyMinimumFrequencyMaximum
DeviationControlMax.
