Operating Instructions ACU
12/16
X210B.4
Analog signal of actual frequency
X210B.5
Supply voltage +10 V
X210B.6
Actual percentage value 0 ...+10 V
X210B.7
Ground 10 V

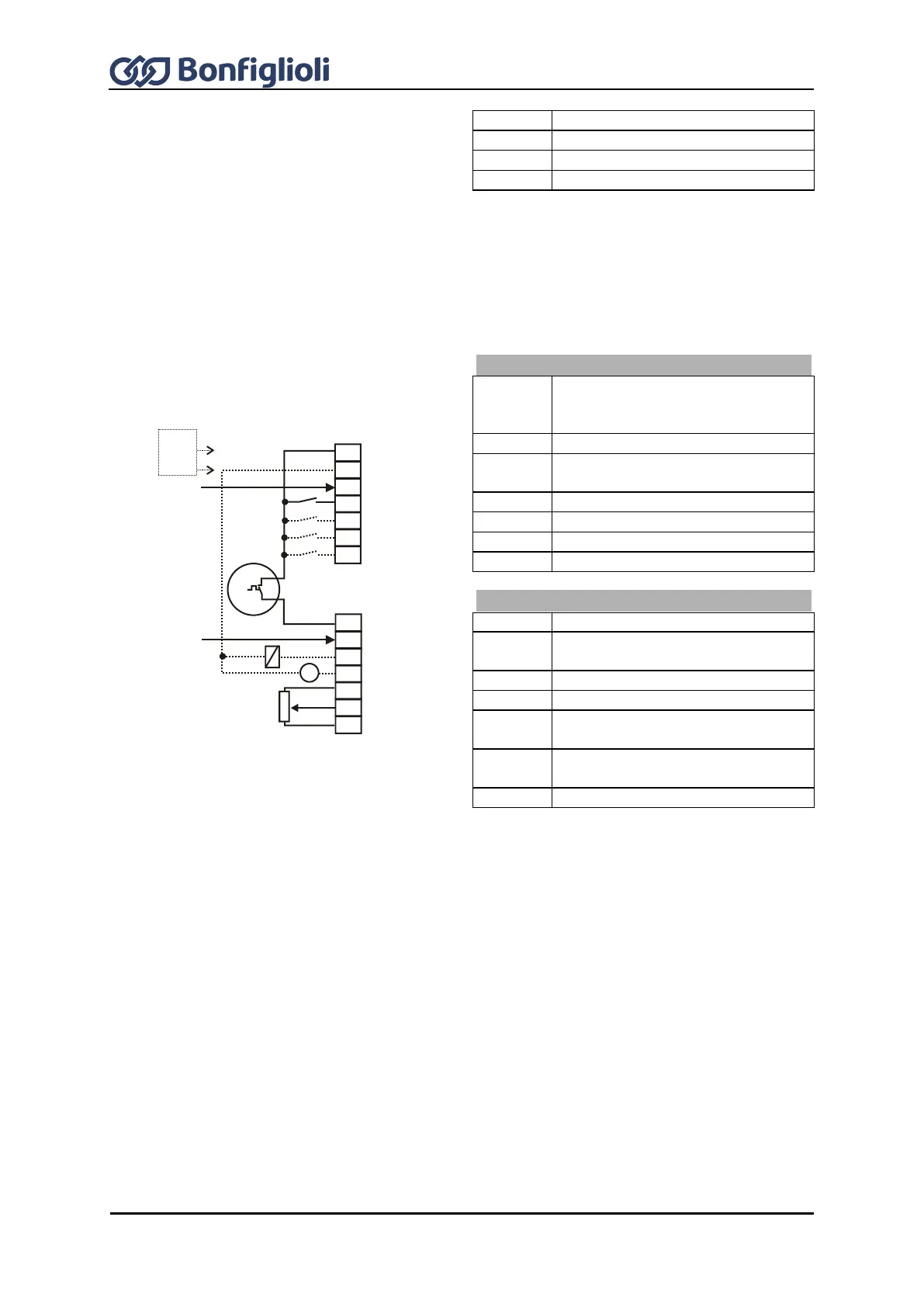

7.8.5 Configuration 430 – Sensorless Field-Oriented 󳮁 Control, speed and
torque controlled
Configuration 430 extends the functionality of the sensorless field-oriented control of Configuration
410 by a Torque Controller. The reference torque is represented as a percentage and it is transmitted
into the corresponding operational performance of the application. Change-over between variable-
speed control and torque-dependent control is done jerk-free during operation.
Control terminal X210A
X210A.1
Voltage output +20 V or input for
external power supply DC 24 V
±10%
X210A.2
GND 20 V/ GND 24 V (ext.)
X210A.3
Digital input STOA (1st shut-down
path of STO safety function)
X210A.4
Start of clockwise operation
X210A.5
n-/M change-over control function
X210A.6
Data Set Change-Over 1
X210A.7
Data Set Change-Over 2
Control terminal X210B
X210B.1
Motor therm. contact
X210B.2
Digital input STOB (2nd shut-down
path of STO safety function)
X210B.3
Run Signal
X210B.4
Analog signal of actual frequency
X210B.5
Supply voltage +10 V for reference
value potentiometer
X210B.6
Reference speed 0...+10 V or
reference torque as percentage
X210B.7
Ground 10 V
S7IND
S1OUT
MFO1A
+10 V/ 4 mA
MFI1A
GND 10 V
1
2
3
4
5
6
7
X210A
+20 V/180 mA
GND 20 V
S1IND
S2IND
S3IND
S4IND
S5IND
S6IND
X210B
1
2
3
4
5
6
7
M
V
+
-
+
-
STOA
STOB
24 V
ext.
