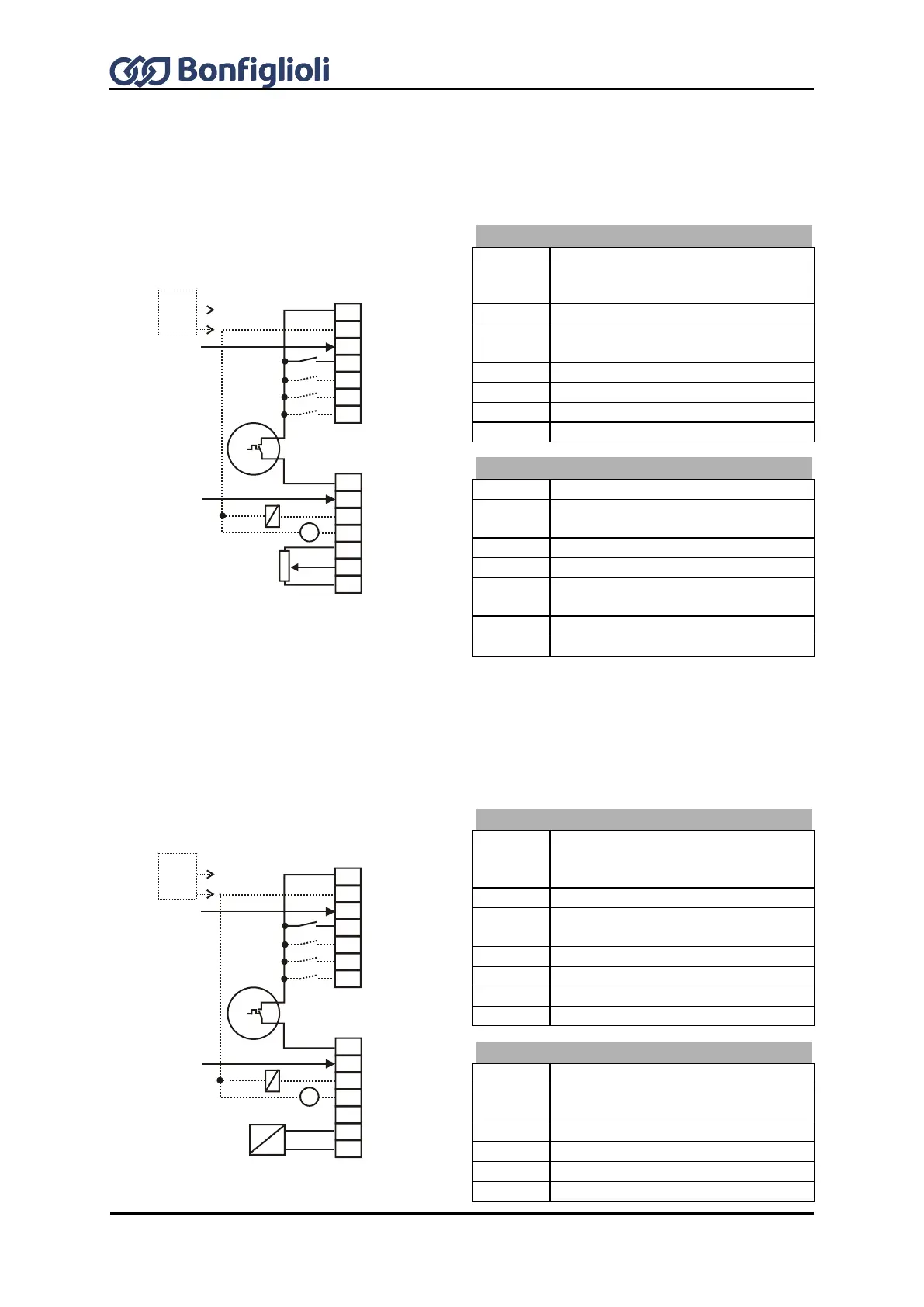

7.8.1 Configuration 110 – Sensorless Control
Configuration 110 contains the functions for variable-speed control of a 3-phase machine in a wide
range of standard applications. The motor speed is set according to the selected ratio of the reference
frequency to the necessary voltage.
Control terminal X210A
X210A.1
Voltage output +20 V or input for
external power supply DC 24 V
±10%
X210A.2
GND 20 V/ GND 24 V (ext.)
X210A.3
Digital input STOA (1. shut-down
path of STO safety function)
X210A.4
Start of clockwise operation
X210A.5
Start of anticlockwise operation
X210A.6
Data Set Change-Over 1
X210A.7
Data Set Change-Over 2
Control terminal X210B
X210B.1
Motor therm. contact
X210B.2
Digital input STOA (2nd shut-down
path of STO safety function)
X210B.3
Run Signal
X210B.4
Analog signal of actual frequency
X210B.5
Supply voltage +10 V for reference
value potentiometer
X210B.6
Reference speed 0 ...+10 V
X210B.7
Ground 10 V
7.8.2 Configuration 111 – Sensorless Control with Technology
Controller
Configuration 111 extends the functionality of the sensorless control by software functions for easier
adaptation to the customer's requirements in different applications. The Technology Controller enables
flow rate, pressure, level or speed control.
Control terminal X210A
X210A.1
Voltage output +20 V or input for
external power supply DC 24 V
±10%
X210A.2
GND 20 V/ GND 24 V (ext.)
X210A.3
Digital input STOA (1st shut-down
path of STO safety function)
X210A.4
Fixed Percent Change-Over 1
X210A.5
Fixed Percent Change-Over 2
X210A.6
Data Set Change-Over 1
X210A.7
Data Set Change-Over 2
Control terminal X210B
X210B.1
Motor therm. contact
X210B.2
Digital input STOB (2nd shut-down
path of STO safety function)
X210B.3
Run Signal
X210B.4
Analog signal of actual frequency
X210B.5
Supply voltage +10 V
X210B.6
Actual percentage value 0 ...+10 V
S7IND
S1OUT
MFO1A
+10 V/ 4 mA
MFI1A
GND 10 V
1
2
3
4
5
6
7
X210A
+20 V/180 mA
GND 20 V
S1IND
S2IND
S3IND
S4IND
S5IND
S6IND
X210B
1
2
3
4
5
6
7
M
V
+
-
+
-
STOA
STOB
24 V
ext.
S7IND
S1OUT
MFO1A
+10 V/4 mA
MFI1A
GND 10 V
1
2
3
4
5
6
7
X210A
+20 V/180 mA
GND 20 V
S1IND
S2IND
S3IND
S4IND
S5IND
S6IND
X210B
1
2
3
4
5
6
7
M
V
+
-
+
-
-
+
STOA
STOB
24 V
ext.
