BONFIGLIOLI active cube 201 User Manual

84
Operating Instructions ACU
12/16

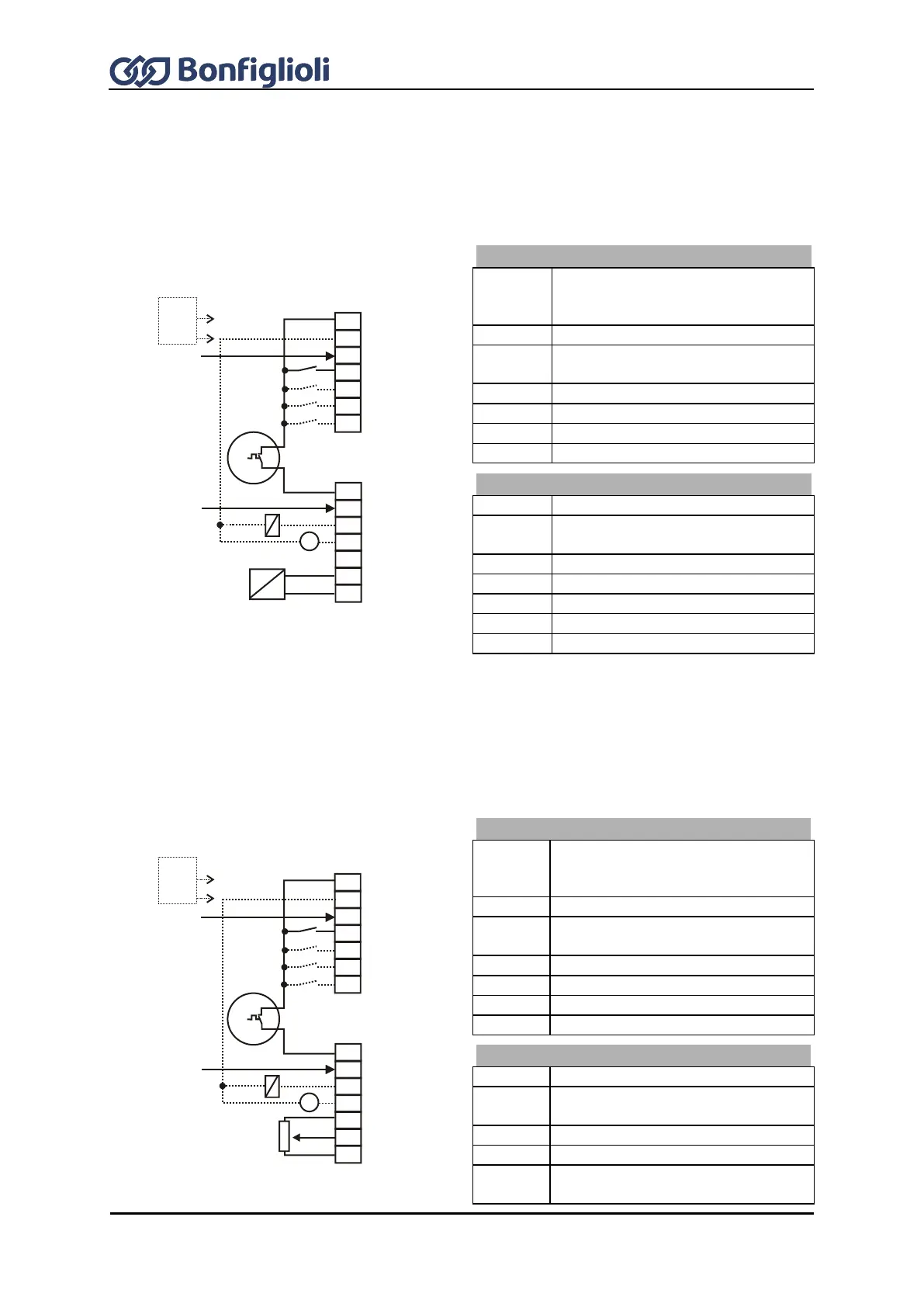

7.8.10 Configuration 511 –Field-Oriented Control of Synchronous
Machine with Technology Controller
Configuration 511 extends the functionality of the field-oriented control of a synchronous machine of
Configuration 510 by a Technology Controller. The Technology Controller enables a control based on
parameters such as flow rate, pressure, filling level or speed.
Control terminal X210A
X210A.1
Voltage output +20 V or input for
external power supply DC 24 V
±10%
X210A.2
GND 20 V/ GND 24 V (ext.)
X210A.3
Digital input STOA (1st shut-down
path of STO safety function)
X210A.4
Fixed Percent Change-Over 1
X210A.5
no function assigned
X210A.6
Data Set Change-Over 1
X210A.7
Data Set Change-Over 2
Control terminal X210B
X210B.1
Motor therm. contact
X210B.2
Digital input STOB (2nd shut-down
path of STO safety function)
X210B.3
Run Signal
X210B.4
Analog signal of actual frequency
X210B.5
Supply voltage +10 V
X210B.6
Actual percentage value 0 ...+10 V
X210B.7
Ground 10 V
7.8.11 Configuration 530 – Field-Oriented Control of a Synchronous
Machine Speed and Torque Controlled
Configuration 530 extends the functionality of Configuration 510 by functions for torque-dependent,
field-oriented control. The reference torque is represented as a percentage and it is transmitted into
the corresponding operational performance of the application. Change-over between variable-speed
control and torque-dependent control is done jerk-free during operation.
Control terminal X210A
X210A.1
Voltage output +20 V or input for
external power supply DC 24 V
±10%
X210A.2
GND 20 V/ GND 24 V (ext.)
X210A.3
Digital input STOA (1st shut-down
path of STO safety function)
X210A.4
Start of clockwise operation
X210A.5
n-/M change-over control function
X210A.6
Data Set Change-Over 1
X210A.7
Data Set Change-Over 2
Control terminal X210B
X210B.1
Motor therm. contact
X210B.2
Digital input STOB (2nd shut-down
path of STO safety function)
X210B.3
Run Signal
X210B.4
Analog signal of actual frequency
X210B.5
Supply voltage +10 V for reference
value potentiometer
S7IND
S1OUT
MFO1A
+10 V/4 mA
MFI1A
GND 10 V
1
2
3
4
5
6
7
X210A
+20 V/180 mA
GND 20 V
S1IND
S2IND
S3IND
S4IND
S5IND
S6IND
X210B
1
2
3
4
5
6
7
M
V
+
-
+
-
-
+
STOA
STOB
24 V
ext.
S7IND
S1OUT
MFO1A
+10 V/4 mA
MFI1A
GND 10 V
1
2
3
4
5
6
7
X210A
+20 V/180 mA
GND 20 V
S1IND
S2IND
S3IND
S4IND
S5IND
S6IND
X210B
1
2
3
4
5
6
7
M
V
+
-
+
-
STOA
STOB
24 V
ext.
