Operating Instructions ACU
3.3 Dimensions/weight
For information on the weight and dimensions of the frequency inverter, refer to chapter 5
“Technical data”.
3.4 Transfer to place of installation
Transfer to the place of installation is done with the product in its original packaging. Frequency
inverters as from size 7 must be transferred to the place of installation in horizontal position, rear-side
down. A fork lift truck or crane with crane fork can be used for transfer to the place of installation.
Apply the fork in the middle of the transport unit.
Secure the transport unit to prevent it from falling down and overturning.
Lift the transport unit up carefully.
At the place of installation, put the transport unit down on a level and bearing surface.
3.5 Unpacking the device
Carefully remove packaging.
Check if the delivered devices corresponds to the order.
Check the device for transport damage and completeness.
Any defects/damage must be reported to the supplier immediately.
Ensure that all packaging materials are disposed of in an environmentally compatible
manner.
3.6 Bringing the device into installation position
3.6.1 Sizes 1 through 6
Depending on the weight, one or two persons are required for lifting the device into the
installation position in the electrical cabinet. Installation, see Chapter 6 "Mechanical installation".
3.6.2 Sizes 7 and 8

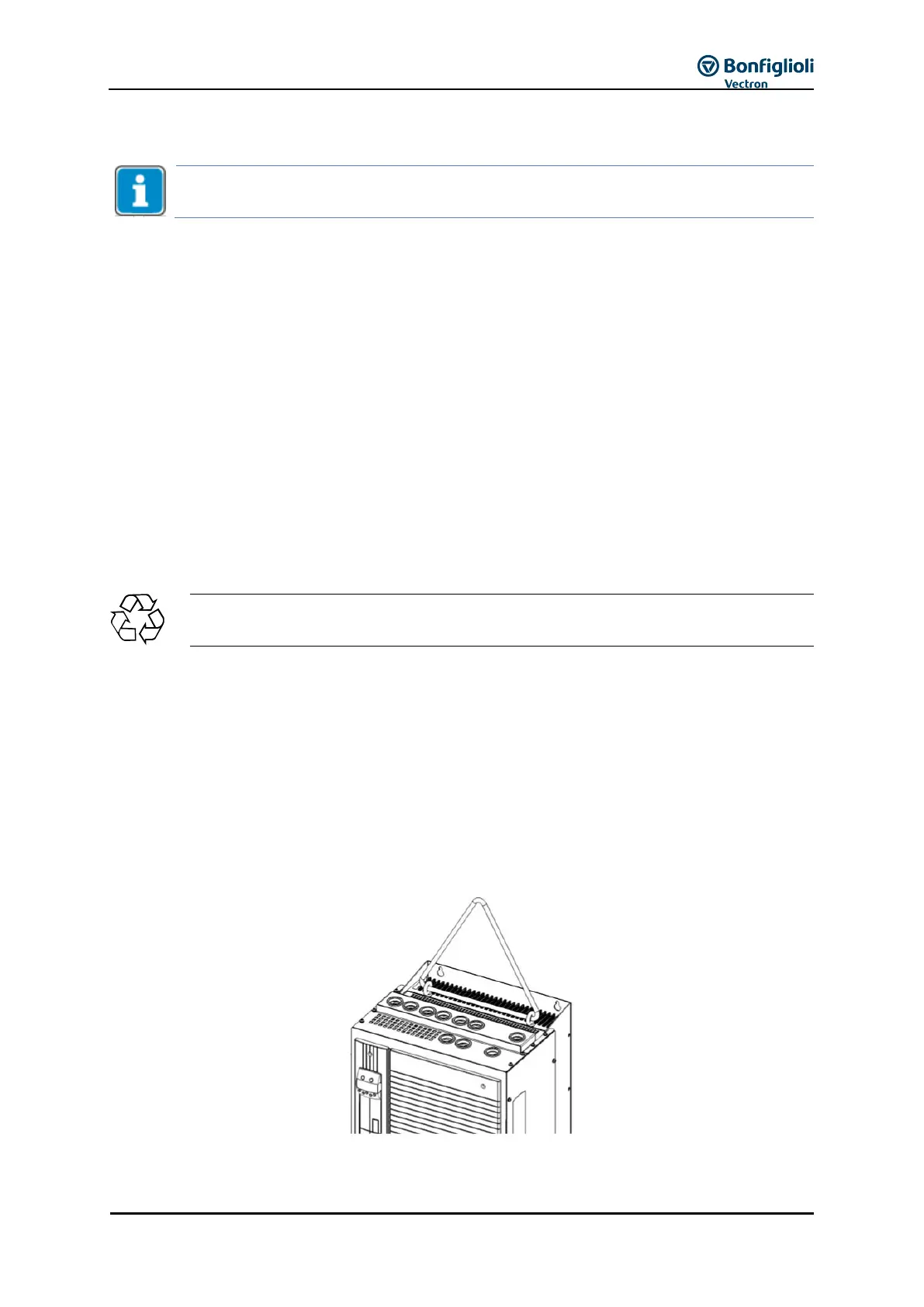

Fix two crane eyes (M8) in the marked threaded holes on the top side of the device.
Use appropriate lifting means.
